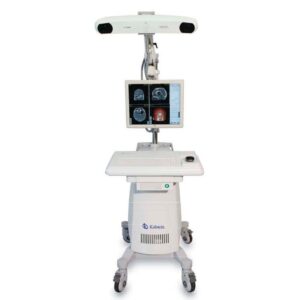

Surgical Navigation Systems YR02143

The Surgical Navigation Systems YR02143 is a state-of-the-art computer-aided electromagnetic navigation system designed to enhance surgical visualization, planning, and precision. This advanced system is especially beneficial for cranial procedures, including neurological and ENT surgeries, where minimizing trauma to surrounding brain tissue and reducing surgical complications are critical. The YR02143 offers exceptional precision with a spatial resolution of 1.0mm, thanks to its sophisticated optical tracking system that monitors the real-time 3D positioning of surgical tools. Compatible with tomographic images in DICOM format captured via CT, C-arm, MRI, and fMRI, this system ensures comprehensive surgical convenience and accuracy.

Market Price

The cost of surgical navigation systems like the YR02143 varies significantly, typically ranging between $100,000 and $300,000 depending on the features and functionalities. It's crucial to consider the value this system adds to surgical precision and safety when evaluating its price. For a detailed quotation, you can generate an instant quote using the Kalstein Plus platform.

Frequently Asked Questions

Q: Is the YR02143 suitable for minimally invasive surgeries? A: Yes, the YR02143 system is particularly adept at handling minimally invasive surgeries, making it ideal for procedures involving deep intracranial lesions and low-volume lesions. Q: Can the system handle unexpected power outages? A: Absolutely, the YR02143 system automatically saves patient image data and registration information, allowing for seamless continuation of the surgical process in case of power interruptions.

Advantages and Disadvantages

The YR02143 system offers numerous advantages, including high precision, reduced surgical trauma, and automatic data saving. However, its complexity may require thorough training for optimal use. While its advanced features are beneficial, the initial investment can be high, justifying its cost with the long-term benefits of enhanced surgical outcomes.

Product Use in the Field

The YR02143 system is actively used in various surgical settings, particularly for ENT and neurological procedures. Its ability to adapt to unexpected anatomical changes during surgery ensures that it remains a reliable tool for surgeons aiming for precision and safety.

Recommendations

For optimal use, it’s recommended to undergo comprehensive training on the YR02143 system. Regular software updates and maintenance checks are also advised to ensure continuous peak performance. Users should consult the Kalstein Plus platform for any additional support and to request customized configurations.

Features

- High precision with 1.0mm spatial resolution. - Compatible with DICOM images: CT, C-arm, MRI, fMRI. - Intelligent software for real-time adaptation. - Four navigation modes for comprehensive process monitoring.

Technical Specifications

Model	YR02143
Component	Amount		Description
Optical tracking system
NDI tracking system	1 set		Track 3D position and orientation of active or passive markers attached to surgical tools
Image management workstation
Computer system	1 set		For 2D image fusion and 3D reconstruction, navigation system
Touch monitor	1 piece		19 ", 1280 x 1024 resolution, medical and healthcare grade
Software package	1 set		Core set (image fusion, surgical planning and navigation, data management)
Software version 1	1 piece		Diffusion-tensor-images navigation module
Software version 2	1 piece		Needle-Aspiration-Biospy navigation module
Mobile car
Support trolley with 4 wheels	1 piece		To support the optical tracking system and image management workstation
Surgical tools
Navigation probe	2 pieces		To help the optical measurement system track movement
Microscope probe	1 piece		To help the optical measurement system track movement
Active marker	6 pieces		To help quickly recognize critical anatomical structures.
Passive reflective sphere	10 pieces		To reflect the infrared laser for cameras (in the optical tracking system) to capture
Framework	2 pieces		To locate passive reflective sphere with 4 pins
Articulated arm	1 piece		To hold the frame of reference
Clamp adapter	2 pieces		For the adaptation of another instrument (such as the brain needle during navigation)
Foot-switch	1 piece		To help register and navigate
Touchmonitor specification
Case / bezel color	Beige	Mini VGA D-sub 15-pin; DVI-D	Mini VGA D-sub 15-pin; DVI-D
Display	Sixe: 19.0 ”diagonal, active matrix TFT	Horizontal: 31.5-80 kHz	Horizontal: 31.5-80 kHz
	Aspect ratio: 5; 4	Vertical: 56.3-75 Hz	Vertical: 56.3-75 Hz
Useful display area	Horizontal: 14.82 "(376.32 mm)	Type: 100-240 VAC, 50-60 Hz	Type: 100-240 VAC, 50-60 Hz
	Vertical: 11.85 "(301.06 mm)	Internal DC input power supply	Internal DC input power supply
Monitor dimensions	Width: 429mm (16.9 ")	DC input voltage (line): 12V 3.6V	DC input voltage (line): 12V 3.6V
	Height (including stand): 15.21 "(386 mm)	48 W max.	48 W max.
	Depth (inc. Base)	Operating; 0 ° C to 40 ° C	Operating; 0 ° C to 40 ° C
Native resolution (optional)	1280 x 1024 @ 60/70/75 Hz	Storage: -20 ° C to 60 ° C	Storage: -20 ° C to 60 ° C
Other supported resolutions	1280 x 960 / 1,024 x 768 in Hz	Operating: 20% -80%	Operating: 20% -80%
Colors	16.7 million	Storage: 10% -90%	Storage: 10% -90%
Brightness	LCD panel: 300 cd / m2	Actual: 17.66 lbs. (8 kg)	Actual: 17.66 lbs. (8 kg)
	With AccuTouch: 246 cd / m2	Shipping: 25.10 lbs (11.84)	Shipping: 25.10 lbs (11.84)
	With IntellTouch: 276 cd / m2	3 years	3 years
Response time	20 msec (typical)	Typical 40,000 hours at half brightness	Typical 40,000 hours at half brightness
Vision angle	Horizontal (left / right): 89 ° / 89 °	MTBF; 50,000 hours demonstrated	MTBF; 50,000 hours demonstrated
(Typical, from the center)	Vertical (up / down): 89 ° / 89 °	UL, Cul, fcc, ic, ce, China RoHS, Argentina S mark	UL, Cul, fcc, ic, ce, China RoHS, Argentina S mark
Contrast ratio	1300: 1 (typical)	Two watt / channel speakers located in the display head	Two watt / channel speakers located in the display head
Input video format	Analog: (no video card needed)	OSD locks for user and power controls	OSD locks for user and power controls
Input sync format	Separate horizontal and vertical	OSD extras include volume, treble, bass, balance	OSD extras include volume, treble, bass, balance
	Synchronization, compound synchronization and	OSD Language (English, Chinese, Spanish, French)	OSD Language (English, Chinese, Spanish, French)
	Synchronization in green	Safety lock receptacle	Safety lock receptacle
