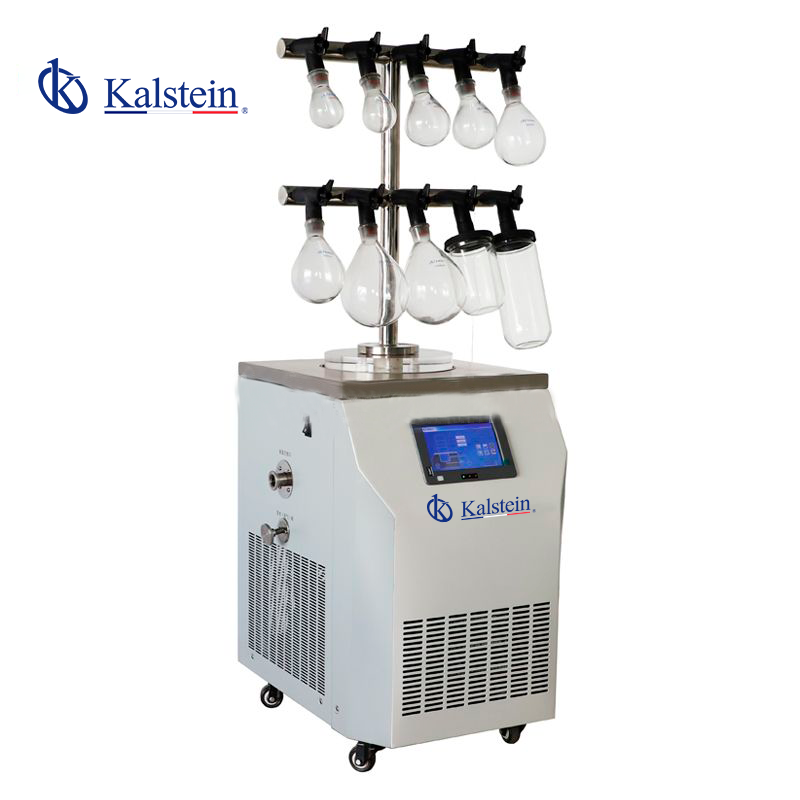

T Type Vertical Lab Freeze Dryer YR05193-1

Manufacturer: Kalstein

Description

The Vertical Laboratory Freeze Dryer Type T YR05193-1 is a specialized piece of equipment for preserving products across various industries, such as medicine, pharmacy, biology, chemistry, and even food production. It employs the freeze-drying process to remove moisture from samples through sublimation in a vacuum environment. This process ensures the preservation of the biological and chemical characteristics of the samples, allowing them to be restored to their original state with simple rehydration. The YR05193-1 model is designed with state-of-the-art technology, offering high efficiency and ease of use, making it an ideal option for laboratories and scientific research.

Key Product Features

  • CFC-free refrigeration for a safer and more eco-friendly drying process.
  • LCD display with drying curves and English interface, simplifying process operation and control.
  • Condenser with pre-freezing function and easy-access opening for cleaning.
  • Low noise level due to its efficient compressor, ensuring a more comfortable work environment.
  • Drying chamber with organic glass, allowing a clear and safe view of the process.
  • Stainless steel structure, ensuring durability and easy cleaning.
  • Optional nitrogen valve and eutectic point testing device for more specific applications.

The YR05193-1 features a condenser capacity of 3 kg/24h and can reach condensation temperatures of -55°C (with an optional -80°C configuration). Its compact and user-friendly design makes it an excellent choice for both small laboratories and larger facilities, while its power consumption of only 750W makes it economical and efficient. Its vacuum capacity of < 10 Pa ensures optimal performance in the sublimation process, and its vacuum pump has a flow rate of 2 L/S, guaranteeing quick and effective moisture evacuation.

Market Price

The Vertical Laboratory Freeze Dryer Type T YR05193-1 is available on the market for approximately $6,450 to $6,455 USD, depending on the selected configurations and additional accessories. This price range reflects the high quality and versatility of the equipment, making it an accessible option for laboratories and research companies. To get an exact price tailored to your needs, you can request a personalized quote or generate one automatically through our Kalstein Plus platform.

Frequently Asked Questions

  • What is the capacity of the YR05193-1 freeze dryer?
    The YR05193-1 freeze dryer can process up to 3 kg of products per 24 hours, making it ideal for laboratories and research centers with moderate preservation needs.
  • Can the equipment configuration be customized?
    Yes, this model offers customizable options, such as the nitrogen valve and cascade refrigeration (optional for temperatures of -80°C), adapting to various research needs.
  • Is the equipment maintenance complicated?
    No, maintenance is relatively simple. Thanks to its stainless steel design and drying chamber with organic glass, cleaning is quick and easy. Additionally, the vacuum system should be periodically checked to ensure optimal performance.

Advantages and Disadvantages

Advantages:

  • Advanced technology: Its freeze-drying process ensures effective preservation of sensitive products.
  • Compact and efficient design: Easy integration into laboratories with limited space.
  • Customizable options: Adaptable to various research and preservation applications.

Disadvantages:

  • Moderate capacity: While ideal for small to medium laboratories, it is not designed for large-scale freeze-dried production in industrial settings.
  • Electrical dependence: Requires a stable power supply to function optimally, which may be a drawback in areas with frequent power outages.

Field Use

The Vertical Laboratory Freeze Dryer Type T YR05193-1 is widely used in medical and pharmaceutical research laboratories, where strict conditions are required for preserving biological samples, chemicals, and medications. It is also useful in the food industry for producing freeze-dried foods such as fruits, vegetables, and other gourmet products. In these fields, this equipment ensures the preservation of the nutritional and chemical properties of products, extending their shelf life without compromising their quality.

Recommendations

To maximize the lifespan of the Vertical Laboratory Freeze Dryer Type T YR05193-1, regular maintenance is essential. Clean the drying chamber and ensure the vacuum system is functioning correctly. Additionally, avoid overloading the trays and adjust the drying process according to the specifications of each type of sample. This will guarantee optimal results and prolong the equipment’s lifespan.

Technical Specifications

Model YR05193-1
Condenser capacity 3 kg /24h
Condenser temperature -55℃ (-80 ℃ optional )
 Vacuum degree < 10 Pa
Rubber sealed valve 24 pcs, for 24 ampule
special requirement customized
Cooling  Air,draughty, ambient temperature≤25℃
Vacuum pump flow rate 2 L/S, 7.2 m3/h
Voltage  220V ,50 Hz
Power 750  W
Host dimension 560×460×(720+440) mm
Host Weight 62 kg

Additional information

Weight 201 kg
Dimensions 120 × 69 × 77 cm
