Description

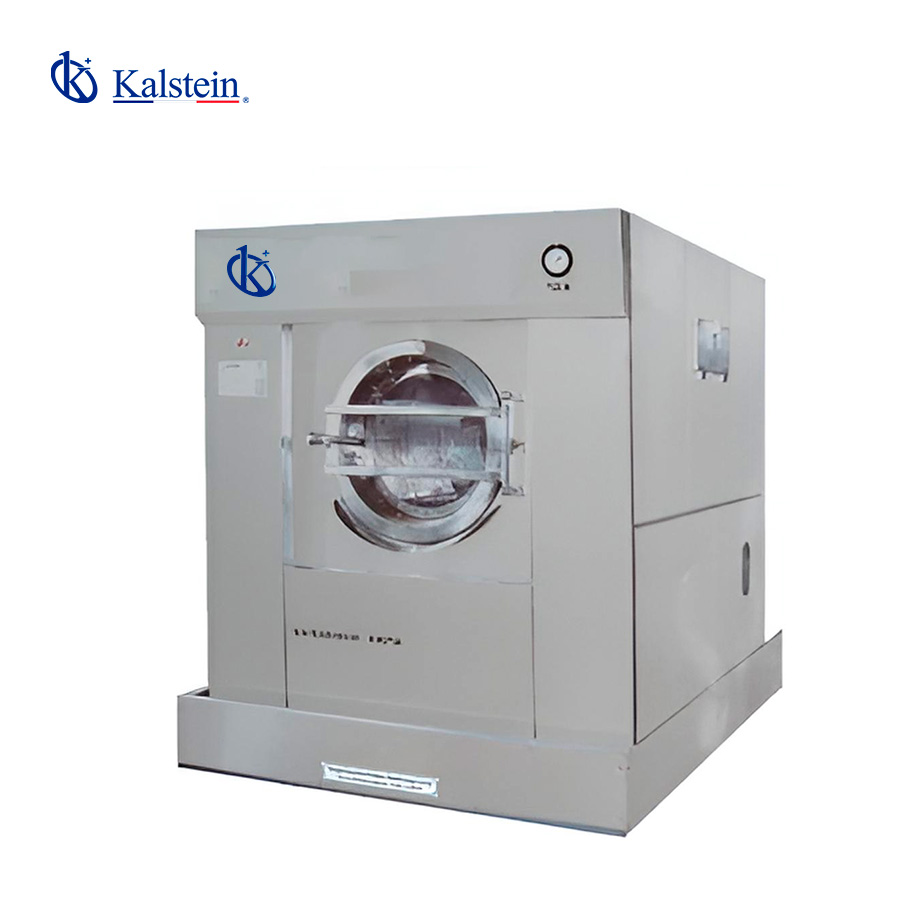

- The washer as a whole is composed of a combination of internal and external drums, a rotating lifting bearing system, damping springs, an impact reducer and a lifting cylinder, among other elements. Designed to provide high extraction efficiency, it offers four different speeds depending on the type of material being processed.
- This speed regulation system, controlled by an LS inverter, allows precise and fast adjustments of both washing and extraction speeds, ensuring optimal protection of garments and other fabrics. In addition, thanks to its high quality stainless steel construction, this washer offers excellent corrosion resistance and exceptional durability for long and reliable performance.
Technical Specification
| Model | YR06299 | YR06300 | YR06301 |
| Rated Capacity | 100kg | 130kg | 150kg |
| Drum Dimension | 1200-900mm | 1300*985mm | 1470-880mm |
| Door Size | 650 or 700mm | 720 or 800mm | |
| Motor Power | 9kw, 1440r/min | 11, 1440r/min | 18.5, 1440r/min |
| Washing speed | 30 r/min | 32 r/min | 38 r/min |
| Extracting speed | 600 r/min | 650 r/min | 48-580 r/min |
| Inverter Power | 12kw | 15kw | 20kw |
| Inlet of Water | 50inch | 50inch | 3inch |
| Inlet of Chemical | 3/4inch | 3/4inch | 1inch |
| Inlet of Steam | 1inch | 1inch | 1 1/2inch |
| Steam Pressure | 0.4-0.6 Mpa | ||
| Water Pressure | 0.2-0.3 Mpa | ||
| Drain Pipe | 102 mm | 114*2 mm | 150 mm |
| Water consumption | <=25 Vkg | ||
| Dimension | 1700x2300x2000mm | 1810x2520x2180mm | 2500x2280x2280mm |
| Weight | 4000kg | 4500kg | 5000kg |
