UV VIS Spectrophotometer with Ultraviolet-Visible Scanning Software- YR01857

Manufacturer: Kalstein

Description

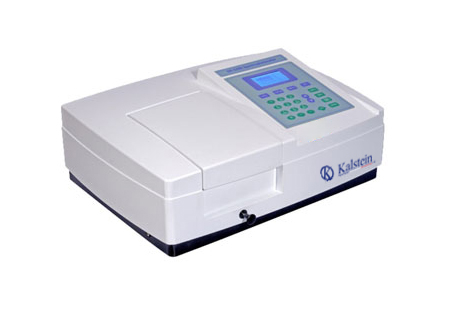

YR01857 spectrophotometer equipped with 6 inches LCD display, is an ideal and advanced analytical instrument for laboratory to realize wavelength scanning, Kinetics test, multi wavelengh functions. All functions can be operated on spectrophotometer and can be read directly on the display.

6 inches LCD display

YR01857 series has a 6 inches LCD display to show results and curves directly on the screen.

8mm thick optical base

YR01857 uses a rigid 8mm die-case aluminum base as its optical mount to ensure instrumentstability and reliability.

Powerful functions

Multi functions like spectrum scanning, standard curve, kinetics,multi wavelength, DNA/RNA/Protein testing can be operated directly on the spectrophotometer and all corresponding curves and data can be displayed directly.

Data output

YR01857 is equipped with USB port to connect with a PC to display spectrum scanning, kinetics and multi wavelength testing results on the screen. The sofeware is optional.

Model YR01857
Wavelength Range 190-1100nm
Bandwidth 1.8nm
Wavelength Accuracy ±0.5nm
Wavelength Repeatability ≤0.2nm
Photometric Accuracy ±0.3%T
Photometric Repeatability ≤0.15%T
Photometric Range -0.3-3A, 0-200%T, 0-9999C
Stability ± 0.002A/h @ 500nm
Baseline Flatness ± 0.002A/h
Noise ± 0.0005A
Stray Light ≤0.05%T @ 220nm, 360nm
Data Output Port USB
Printer Port Parallel Port
Display 320*240 Dots LCD
Lamps Tungsten Lamp & Deuterium Lamp
Detector Silicon Photodiode
Power Requirements AC 220V/50Hz or AC 110V/60Hz
Dimension 460*380*180mm
Weight 20kg
Item Description Quantity Unit
1 Spectrophotometer 1 set
2 1cm Glass cuvette 4 pcs
3 Power cord 1 pcs
4 User’s Manual 1 pcs
5 1 cm quartz cuvette 2 pcs
6 Dust Cover 1 pcs

Additional information

Weight 20 kg
Dimensions 62 × 53 × 37 cm
