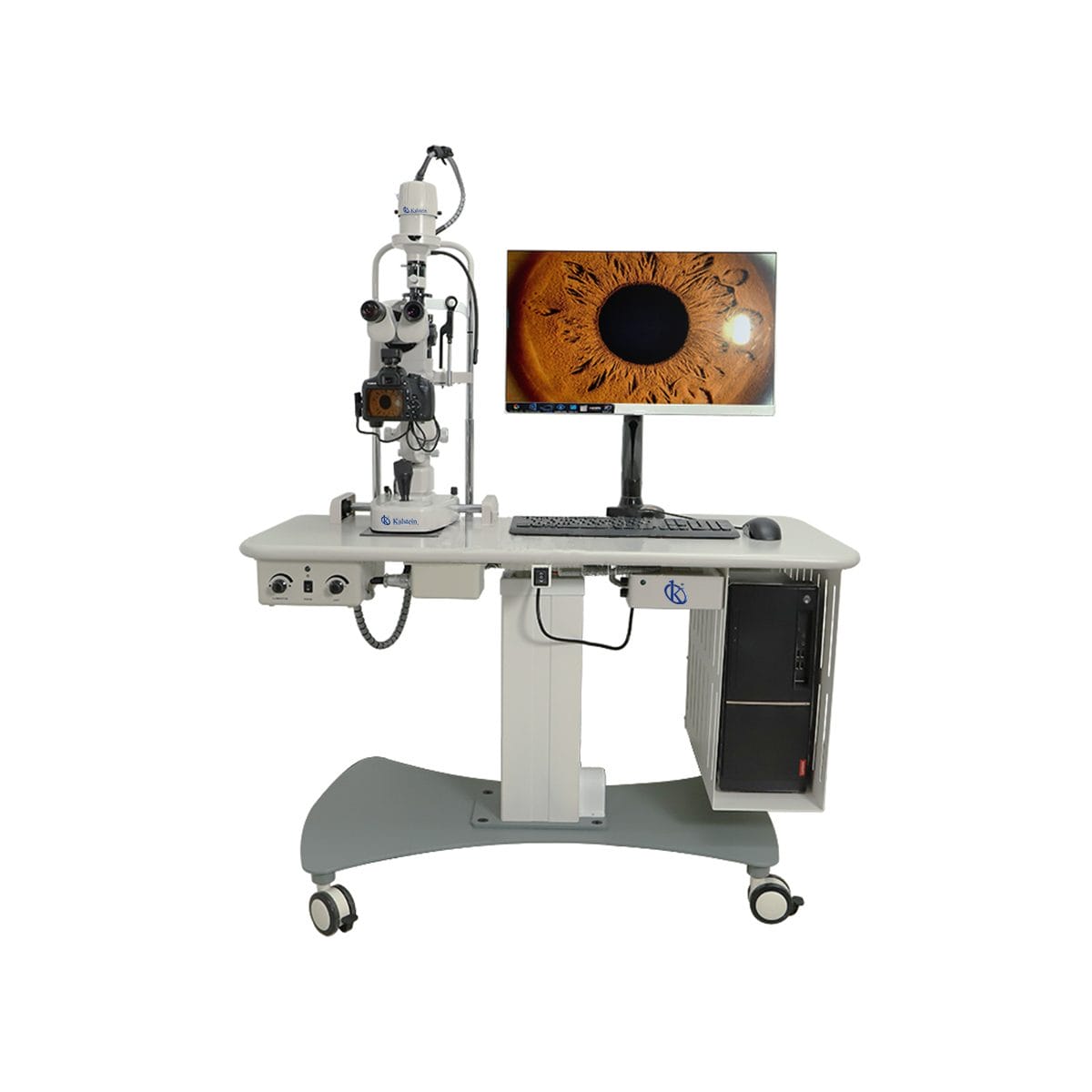

Description
Professional color digital image acquisition system: able to see images digitized restore the display, dedicated digital image acquisition resolution greater than 2000 lines
Unique case storage capabilities: able to see the real picture is stored in the computer, and through the distribution of the optical memory permanently preserved, better respond to medical malpractice
Unique background lighting system: the darkroom can be compensated partially fractured outside lighting
Powerful image analysis and processing functions: analysis of the lesion, measurement, calculation and image enhancement, study table for the immediate help provide reliable, able to make a comparative analysis of the therapeutic effect
Equipped with professional color image inkjet printers: the image can be printed with high accuracy output
Galilean optical body using special high-resolution digital images slit lamp microscope optical interfaces
Technical Specifications
| Model | YR06200 |
| Microscope Type | Parallel angle type |
| Eyepiece | 12.5X |
| Total magnification microscope | 6X , 10X , 16X , 25X , 40X |
| Visual field diameter (mm) | φ37 , φ23 , Ø14 , Ø8 .7 , size 5.7 |
| Diopter adjustment | -5D ~ +5 D |
| Fissure width / height width | 0mm ~ 10mm continuously adjustable, high- 1mm ~ 10 continuously adjustable |
| Spot diameter (mm) | Ø10 , Ø8 , Ø5 , Ø3 , Phi] 2 , φ0.2 |
| Crack angle | 0 ° ~ 180 ° continuously adjustable |
| Fissure angle | 5°, 10°, 15°, 20° |
| Lighting imported | From Germany tungsten 12V/60Hz |
| Magnification | 0.794X (± 8%) |
| Filters insulation | Film, minus rays, no red tablets, cobalt blue chip |
| Input voltage | 110V/220V (± 10%) 50/60Hz |
| Input Power | 60VA |
| Input voltage tungsten halogen | 4.5V , 6.0V , 9.0V , 10.5V , 12V |
| Fixation lamp | 3.5V |
