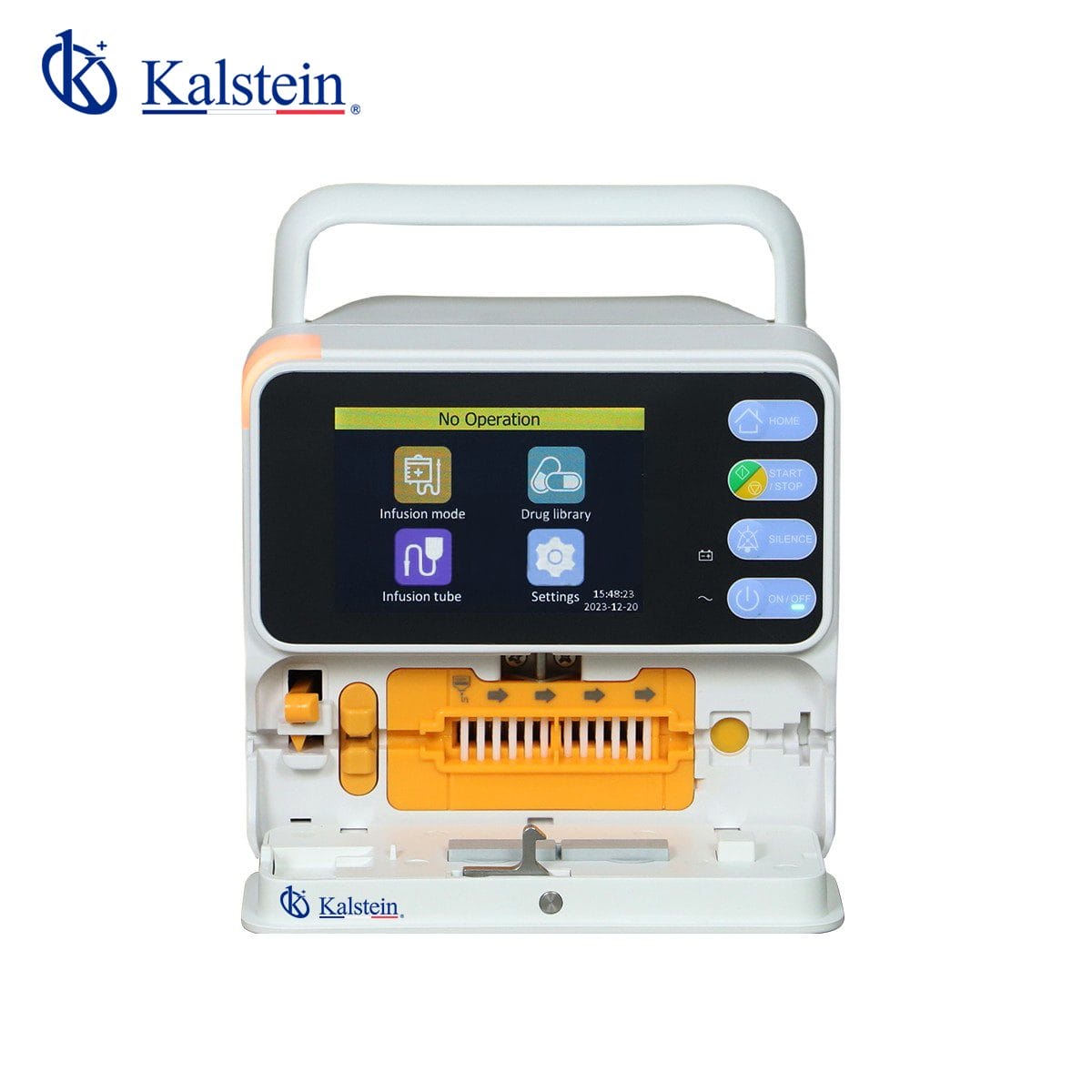

Veterinary Infusion Pump YR06183

ManufacturerKalstein

Description

The Veterinary Infusion Pump YR06183 is a state-of-the-art device designed to meet varied clinical needs in veterinary settings. Featuring a 3.5-inch touch screen with an intuitive interface, it ensures a steep learning curve for users. This versatile device is ideal for both drug and blood transfusions, making it a crucial tool for diverse medical applications. Its robust battery life can sustain up to 12 hours of operation at a flow rate of 25ml/h, fostering safer environments during patient transfer. Additional features like the optional warming strip and animal cage hook enhance its utility in the field. Additionally, IP44-rated ingress protection effectively safeguards against dust and water.

Market Price

The Veterinary Infusion Pump YR06183 falls within a competitive market range. Prices for similar advanced veterinary infusion pumps typically range from $900 to $1700, reflecting their sophisticated technology and versatile functionalities. Investing in the YR06183 not only assures a reliable performance but also an excellent return on investment for veterinary clinics prioritizing quality care.

Frequently Asked Questions

What types of transfusions can the YR06183 handle? This pump is designed for both drug and blood transfusions, accommodating various clinical procedures.

How long can the battery last on a single charge? The pump’s battery can operate for up to 12 hours at 25ml/h, ensuring continuous performance.

What safety features does it offer? It includes advanced safety features like ultrasound bubble detection and multiple alarm settings for different operational states.

Advantages and Disadvantages

One of the main advantages of the YR06183 is its versatility in handling various infusion modes and its compatibility with standard infusion sets. The advanced touchscreen interface makes it user-friendly, while its long battery life ensures uninterrupted functionality. However, one potential downside is its reliance on battery power, which requires monitoring and regular charging, especially in high-usage scenarios.

Product Use in the Field

The Veterinary Infusion Pump YR06183 is utilized in veterinary clinics to administer precise doses of medication and fluids to animals. Its portability and optional hook for cage hanging facilitate efficient space management, making it especially valuable in busy clinical environments. The option to use a warming strip further ensures that infused fluids are delivered at optimal temperatures.

Recommendations

To maximize the lifespan and efficiency of the YR06183, it’s recommended to regularly service the pump and ensure the battery is adequately charged. Keeping abreast of any software updates or maintenance tips from the manufacturer can also help maintain optimal performance. For those interested in exploring the device further or obtaining a quote, access the Kalstein Plus platform for more details.

Features

  • 3.5-inch touch screen interface
  • 12-hour battery life at 25ml/h
  • Optional warming strip for temperature control
  • IP44 ingress protection
  • Compatibility with various standard infusion sets
  • Multiple infusion modes including rate, time, and weight

Technical Specifications

Model YR06183
Infuse mode Rate mode , Time mode, Weight mode, Intermittent mode, Drug library,Drip mode
Applicable infusion set Various brands of standard infusion sets
Accuracy ±5%
lnfusion rate (0.10-2000.00)ml/h, increment at 0.01ml/h
VTBI (0.10~9999.99)ml
Volume infused (0.00~99999.99)ml
KVO rate (0.10~5.00ml/h in increments of 0.01ml/h
BOLUS rate (0.10-2000.00)ml/h
Purge rate (0.10-2000.00)ml/h in increments of 0.01ml/h
Bubble detection Ultrasound sensor detection with 6 levels: 25ul-800ul
Occlusion pressure 13 levels
Drug library Applicable for each infusion mode,and 5000 drugs can be added
History record 50000
Alarm Air bubble , Occlusion , Door open, Battery exhaust, Low battery , No tube, Finished,Almost done, No operate,AC fail,Empty , Drop abnormal, Standby end , Tube error,Battery error,Overheating, Heating bar not installed , System error. etc.

Additional information

Weight 3 kg
Dimensions 22 × 21 × 22 cm
