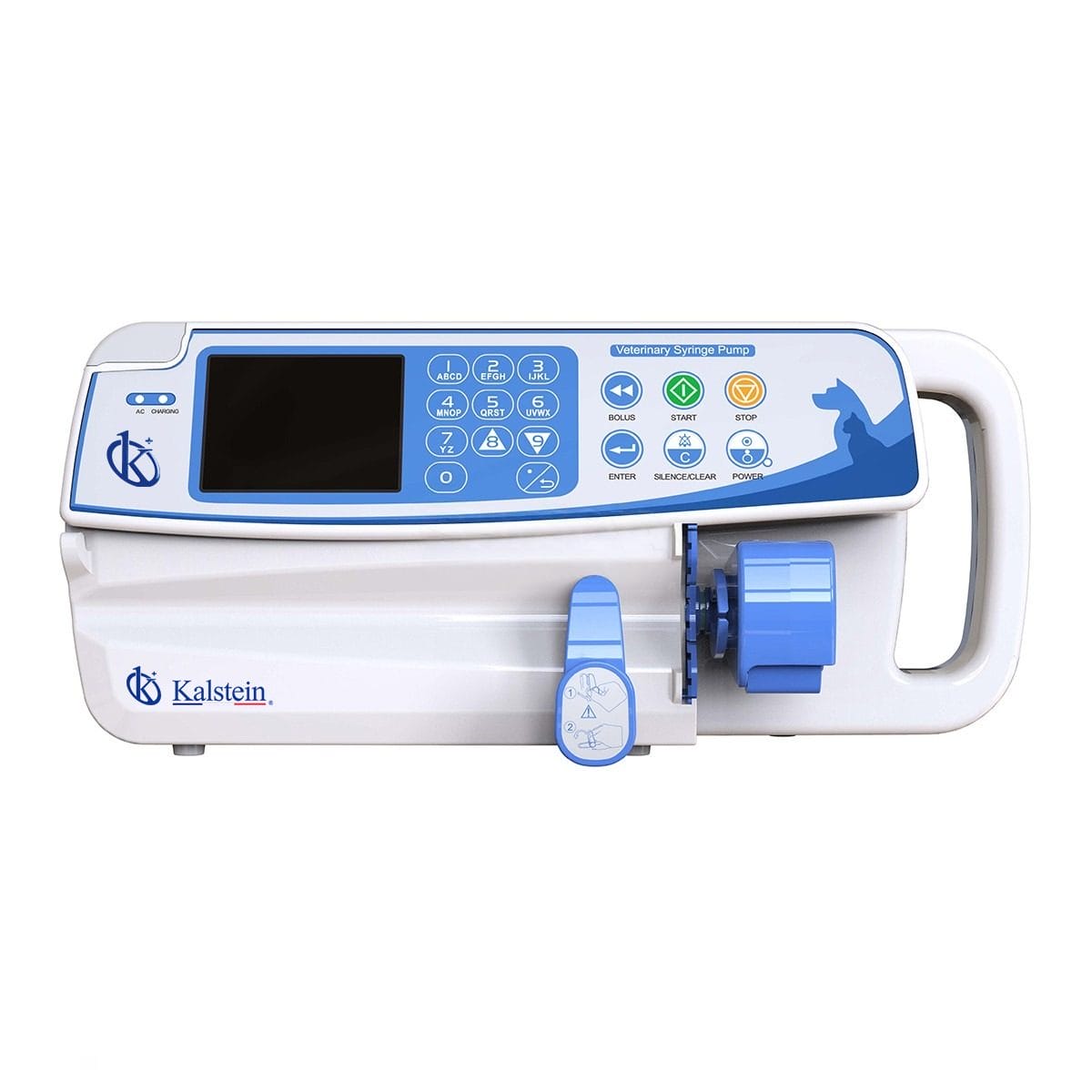

Veterinary Syringe Pump YR06185

ManufacturerKalstein

Description

Large & Colorful LCD display

History records

90-degree rotatable pole clamp convenient for horizontal bar & vertical IV pole

Unique syringe intelligent recognition technology

Dynamically display the pressure

Double CPU ensuring safe infusion

RS232 interface

Adjustable buzzer volume

Anti-bolus function

Various Visual and audible alarms

Technical Specifications
Model YR06185
Infusion mode Dose mode, Time mode, Rate mode
Applicable syringes Various brands of sterile syringes: 5ml,10ml,20ml,30ml,50ml/60ml
Accuracy ±2% (after syringe correct calibration)
Infusion rate 5ml syringe: 0.1 -150ml/h
10ml syringe: 0.1 -300ml/h
20ml syringe: 0.1 -600ml/h
30ml syringe: 0.1 -900ml/h
50ml syringe: 0.1 -1500ml/h
Volume to be infused (VTBI) 0~1000 ml
Volume Infused (∑) 0~9999.9 ml
KVO rate 0.1-2 ml/h adjustable; default value: 0.1ml/h
Bolus rate 5ml syringe: 100-150ml/h
10ml syringe: 100-300ml/h
20ml syringe: 100-600ml/h
30ml syringe: 100-900ml/h
50ml syringe: 100 -1500ml/h
Alarms Infusion completion, Empty, Occlusion, Near completion, Low battery, Syringe
disengaged, No AC power supply, Battery exhausted, Malfunction etc.
Power supply AC: 100~240V, 50/60Hz
DC: 12V ±1.2V
Power consumption 25VA
Nurse call alarm Optional
Classification Class I, type CF
Dimensions 300(L)x 130(H)x 125 (W)mm, not including pole clamp
Net weight 1.8KG
Waterproof Level IPX3
Occlusion pressure (40.0-160.0)kpa
3 adjustable occlusion pressure settings low, middle and high
Battery Rechargeable Li polymer battery,7.4V, 1900mAh
Can operate more than 12 hours after fully charged at 5ml/h., temperature 25℃
Battery recharge time 10h with power on, 3h with power off
Operating conditions Temperature: 5℃~40℃,
Relative humidity: 10~95%,
Atmosphere pressure: 86~106kPa
Transport conditions Temperature: -20℃~+60℃,
Relative humidity: 10~95%,
Atmosphere pressure: 50~106kPa
Storage conditions Temperature: -20℃~+45℃,
Relative humidity: 10~95%,
Atmosphere pressure: 50~106kPa

Additional information

Weight 3 kg
Dimensions 40 × 22 × 21 cm
