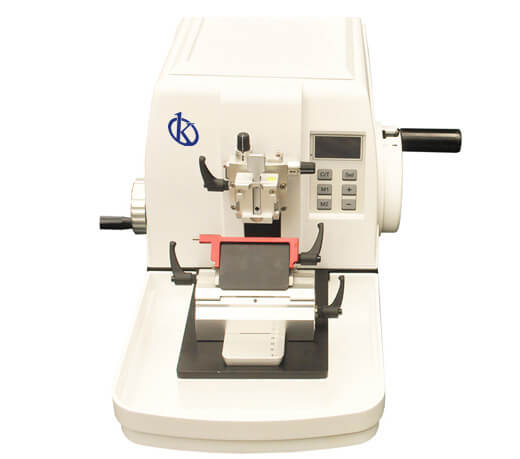

Sector Adaptations for the YR416-1 Semi-Automatic Microtome
The YR416-1 semi-automatic microtome is engineered for high performance and reliability, making it an essential tool across multiple sectors. Its design allows for precise sectioning, catering to specific needs in clinical, industrial, food, veterinary, and educational environments. This article will delve into how the YR416-1 is optimized for various applications, ensuring that users achieve the best results in their respective fields.
Technical Specifications of the YR416-1
| Specification | Value |
|---|---|
| Model | YR416-1 |
| Minimum Cutting Thickness | 0.25 μm |
| Horizontal Feed | 28 mm |
| Vertical Sample Stroke | 70 mm |
| Sample Holder Rotation | Any angle within 360 degrees |
| Blade Holder Base Movement Range | 0-60 mm (forwards and backwards) |
| Blade Press Plate Movement Range | 0-23 mm |
| Sample Clamp Rotation | Any angle within 360 degrees |
| Sample Orientation | XY-8° |
| Maximum Sample Size | 70 × 70 mm |
| Advance Speed Adjustment | 1500 μm/s ~ 3500 μm/s |
| Precision Error | ±1% |
| Operating Voltage | AC 220V±10% 50Hz (standard model); AC 110V±10% 60Hz |
| Power Consumption | 100W |
| Dimensions | 575×420×330 mm (Width×Depth×Height) |
| Net Weight | 37kg |
Clinical Applications of the YR416-1 Microtome
In clinical laboratories, the YR416-1 microtome is predominantly used for histological sectioning of tissue samples. Its capability to adjust sample thickness from 0.25 μm to 100 μm makes it versatile for various types of specimens. Pathologists rely on its precision to prepare samples for microscopic examination. The ease of adjusting the cutting speed allows clinicians to manage delicate samples effectively, thus enhancing diagnostic accuracy.
Moreover, the YR416-1 features a memory positioning system that allows users to quickly return to specific cutting positions, which is particularly useful in high-throughput environments where time is of the essence. This adaptability is vital in clinical settings where sample integrity is paramount for accurate diagnoses.
Industrial Uses of the YR416-1 Microtome
In industrial contexts, the YR416-1 microtome is employed for the preparation of polymer samples and other materials for quality control and research purposes. Its robust construction and reliability make it suitable for cutting materials that are often difficult to section.
The adjustable blade holder and precise cutting capabilities allow operators to produce consistent and reproducible sections, essential for material testing and analysis. This precision is crucial in ensuring that products meet industry standards and regulations.
Food Sector Adaptations for the YR416-1 Microtome
The food industry utilizes the YR416-1 microtome for slicing samples to analyze texture and composition. It provides a controlled method for preparing food samples for sensory evaluation and scientific testing. The microtome's ability to deliver uniform slices aids in evaluating quality attributes such as tenderness and juiciness.
Being able to slice various food products accurately contributes to research and quality control processes in food manufacturing. The YR416-1 ensures that every slice meets the specifications required for detailed analysis.
Veterinary Applications of the YR416-1 Microtome
In veterinary medicine, the YR416-1 is a pivotal tool for preparing tissue specimens from animals. It allows veterinarians and researchers to conduct histopathological examinations to diagnose diseases in animals. The microtome ensures that samples are cut accurately, thereby preserving the cellular structure for better visualization under the microscope.
The adjustable settings make it suitable for different types of animal tissues, which can vary significantly in density and composition. This flexibility is essential for practitioners who work with a wide variety of species.
Educational Uses of the YR416-1 Microtome
In educational settings, the YR416-1 microtome serves as a teaching tool for students studying biology, histology, and pathology. Instructors can demonstrate the techniques of microtomy, allowing students to gain practical experience. The user-friendly design of the YR416-1 enables students to operate the device with minimal supervision.
This equipment also prepares samples for student projects, enabling hands-on learning and research. By integrating the YR416-1 into educational curricula, institutions can enhance the learning experience by providing students with access to professional-grade equipment.
Frequently Asked Questions
What makes the YR416-1 suitable for clinical applications?
The YR416-1 is suitable for clinical applications due to its precision cutting capabilities, adjustable thickness range, and memory positioning system, which enhance diagnostic accuracy in histological examinations.
Can the YR416-1 be used for materials other than biological samples?
Yes, the YR416-1 can be used for a variety of materials, including polymers and food samples, making it versatile for industrial and food sector applications.
How does the YR416-1 improve quality control in the food industry?
By providing uniform slices for analysis, the YR416-1 aids in evaluating quality attributes of food products, ensuring they meet standards required for safety and quality control.
What types of veterinary samples can be processed with the YR416-1?
The YR416-1 can process a wide range of veterinary tissue samples, allowing for effective histopathological examinations necessary for diagnosing animal diseases.
How does the YR416-1 benefit students in educational settings?
The YR416-1 provides students with practical experience in microtomy, enhancing their understanding of histology and pathology through hands-on learning with professional equipment.
Is the YR416-1 user-friendly for new operators?
Yes, the YR416-1 is designed with ease of use in mind, allowing new operators to learn quickly and efficiently operate the microtome without extensive training.
Request a Quote
If you are interested in incorporating the YR416-1 microtome into your laboratory, please feel free to request a quote to explore competitive pricing options.
