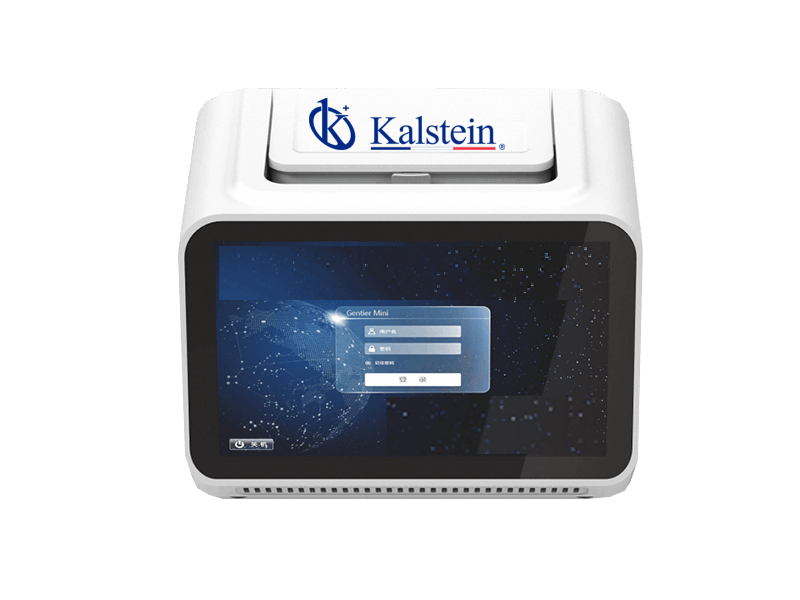

Site Requirements and Installation Guidelines for the YR01867 Real-Time PCR System
The YR01867 Real-Time PCR System is designed for high-performance applications in various laboratory environments, including mobile labs and field testing. Understanding the site requirements and installation guidelines is crucial to ensure the optimal operation and longevity of the device. This article provides detailed insights into the necessary environmental conditions, installation procedures, and commonly encountered issues during setup.
Understanding Environmental Conditions for Optimal Performance
The YR01867 operates best under specific environmental conditions. These include temperature range, humidity levels, and power requirements. Adhering to these conditions is vital for maintaining the equipment's accuracy and extending its lifespan.
Temperature and Humidity Requirements
The ideal temperature range for the YR01867 is between 15°C to 30°C. Humidity levels should be kept between 20% to 80%, ensuring the device is not exposed to condensation that can lead to operational failures. Consistent monitoring of these parameters will help in maintaining the functionality of the PCR system.
Power Supply Standards
The YR01867 requires a stable power supply within the voltage range of 100V to 240V. Any fluctuations outside of this range may cause the system to malfunction. It is advisable to connect the device to a surge protector to minimize the risk of damage from electrical surges.
Installation Procedures for the YR01867
Proper installation of the YR01867 involves a series of steps that must be followed to ensure the equipment operates at its best. Below is a checklist to guide you through the installation process.
Unboxing and Initial Setup
- Carefully unbox the YR01867 and inspect for any visible damage.
- Verify that all components are included as per the user manual.
- Choose a stable surface that meets weight-bearing requirements to place the unit.
Anchoring and Leveling
Once the YR01867 has been unpacked, ensure that it is placed on a flat, stable surface. Use a leveling tool to confirm that the device is perfectly horizontal, which is critical for accurate thermal cycling.
First Power-Up and Calibration
After the device is properly positioned, connect it to the power supply. Upon powering up the device for the first time, follow the on-screen instructions for calibration. This process may include setting up user preferences and running a test cycle to confirm functionality.
Technical Specifications of the YR01867
| Model | YR01867 |
|---|---|
| Performance | January 2016 |
| Fluorescence Channels | 4 |
| Scanning Time | 1s for all wells |
| Dye Compatibility | Channel 1: FAM, SYBR GreenⅠ, SYTO 9, Eva Green, LC Green |
| Channel 2: HEX, VIC, TET, JOE | |
| Channel 3: Texas Red, ROX | |
| Channel 4: Cy5 | |
| Heating Rate | Average heating rate of 3.3°C/s; maximum heating rate of 5.0°C/s |
| Cooling Rate | Average cooling rate of 3.0°C/s; maximum cooling rate of 4.0°C/s |
| Temperature Accuracy | ≤0.1°C |
| Light Source | High-brightness LED light source, long-lasting and maintenance-free |
| Special Temperature Protocols | Conventional PCR, touchdown PCR, long PCR, etc. |
| Hot Lid Temperature | 40°C-110°C |
| Control Modes | Mode 1: 7-inch touch screen Mode 2: Software programs Mode 3: Remote control via Windows tablet |
| Key Applications | Qualitative analysis, absolute quantitative analysis, relative quantitative analysis, endpoint fluorescence analysis, melt curve analysis, SNP analysis, etc. |
| Results Analysis | 1: Direct analysis on YR01867 with print options when connected to a thermal printer; 2: Analysis via PC software. |
| Experiment Files | Files can be downloaded |
| Network Connection | Internet interface, USB, WiFi |
| Power Failure Protection | Automatic experiment restart after power supply |
| Specifications and Weight | 205mm(L) x 156mm(W) x 153mm(H); 3.2kg |
| Compatible Consumables | 0.2mL transparent single tubes and 8-strip tubes |
Frequently Asked Questions
What are the critical environmental conditions for operating the YR01867?
The YR01867 operates best under controlled temperatures of 15°C to 30°C with humidity levels between 20% to 80%. Maintaining these conditions ensures accurate results and extends the lifespan of the system.
How do I power up the YR01867 for the first time?
To power up the YR01867, connect it to a suitable power supply within the range specified in the manual. Follow the on-screen instructions for initial calibration after powering up.
What should I do if the YR01867 does not turn on?
If the YR01867 does not power on, check the power connection and ensure it is plugged into a functioning outlet. If the issue persists, inspect the power cord for damage.
How do I conduct maintenance on the YR01867?
Regular maintenance includes calibrating the device periodically and cleaning it to remove dust and contaminants. Use only certified consumables to prevent any operational issues.
What are the recommended consumables for the YR01867?
Compatible consumables include 0.2 mL transparent single tubes and 8-strip tubes, ensuring that they meet the specifications outlined in the user manual.
Can I connect the YR01867 to a network?
Yes, the YR01867 can connect via USB, WiFi, or an internet interface for data transfer and remote operation.
What steps should I take to level the YR01867?
To ensure the YR01867 is level, use a leveling tool after placing it on a stable surface. Adjust as necessary to maintain a horizontal position.
