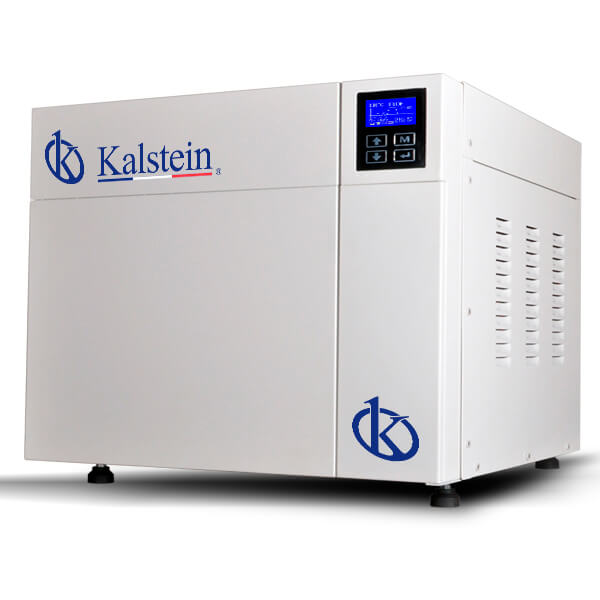

Site Requirements and Installation Conditions for the YR03385C Class B Table Autoclave
Understanding the specific site requirements and installation conditions for the YR03385C Class B Table Autoclave is crucial for ensuring optimal performance and longevity. This guide will delve into the essential aspects of installation, such as space requirements, environmental conditions, and safety measures tailored for this autoclave model.
Technical Specifications of the YR03385C
| Model | YR03385C |
|---|---|
| Chamber Dimension | Φ319 x 417mm |
| Chamber Volume | 29 L |
| Number of Trays | 3 |
| Tray Material | Stainless Steel |
| Tray Size | 240 x 340mm |
| Voltage Frequency | 220/110V, 50/60 Hz |
| Power | 2300W |
| Overall Dimensions (W x H x D) | 640 x 640 x 560mm |
| Weight | 95 Kg |
Environmental Conditions and Site Requirements
To ensure that the YR03385C operates efficiently, several environmental conditions must be met:
- Temperature Range: The ideal operating temperature for the autoclave should be between 10°C to 40°C.
- Humidity Levels: Maintain humidity levels below 80% to avoid moisture-related issues.
- Vibration: The installation site must be free from excessive vibrations that could affect the autoclave's operation.
- Ventilation: Adequate ventilation is necessary to dissipate heat generated during operation.
- Power Supply: Ensure a stable power supply of 220/110V, 50/60 Hz to avoid operational disruptions.
Space and Layout Considerations
When installing the YR03385C, consider the following space requirements:
- Footprint: Allocate sufficient space for the autoclave's dimensions (640 x 640 x 560mm) plus extra room for operation and maintenance.
- Clearances: Maintain at least 30 cm of clearance on all sides for proper airflow and accessibility.
- Accessibility: Ensure that the autoclave is easily accessible for loading and unloading items.
Safety Requirements
Safety is paramount when operating the YR03385C. Adhere to the following guidelines:
- Door Mechanism: The autoclave will not initiate a cycle unless the door is securely locked.
- Pressure Safety: Ensure that the safety valves are functioning to prevent overpressure scenarios.
- Electrical Safety: A circuit breaker should be in place to cut off power in case of a fault.
- Alarm Systems: Familiarize yourself with alarm systems for door security and low water levels to mitigate risks.
Installation Steps and First Run Calibration
Follow these steps for proper installation and initial calibration of the YR03385C:
- Unbox the autoclave carefully, checking for any damages during shipping.
- Position the autoclave on a stable, level surface.
- Connect the water supply and drain, as necessary, ensuring no leaks.
- Plug the autoclave into the power source, checking voltage stability.
- Run a calibration cycle without any load to confirm proper functionality.
Common Installation Mistakes
Avoid these frequent installation mistakes to ensure optimal operation:
- Insufficient clearance around the unit.
- Neglecting to secure the electrical connections properly.
- Failure to test the water supply for contaminants.
- Overlooking the necessity of a level installation surface.
Frequently Asked Questions
What are the ideal temperature and humidity conditions for operating the YR03385C?
The ideal operating temperature for the YR03385C is between 10°C to 40°C with humidity levels remaining below 80% to ensure efficient performance.
How much space is required for the YR03385C autoclave installation?
When installing the YR03385C, it's recommended to allow for its footprint (640 x 640 x 560mm) and provide at least 30 cm of clearance on all sides for airflow and accessibility.
What safety features are included in the YR03385C autoclave?
The YR03385C features multiple safety mechanisms including a secure door locking system, pressure safety valves, and electrical circuit breakers to enhance operational safety.
How do I perform the first calibration cycle on the YR03385C?
To perform the first calibration cycle, position the autoclave on a level surface, connect the necessary water supply, plug it into a power source, and run a calibration cycle without any load.
What common installation mistakes should be avoided when setting up the YR03385C?
Common installation mistakes include insufficient clearance around the unit, improper electrical connections, neglecting water supply testing, and not ensuring a level installation surface.
How can I ensure proper ventilation for the YR03385C during operation?
Ensure proper ventilation by installing the YR03385C in an area with adequate airflow and avoiding obstruction of air vents to dissipate heat generated during operation.
Where can I request a quote for the YR03385C autoclave?
You can request a quote for the YR03385C by visiting the designated request page on our platform.
