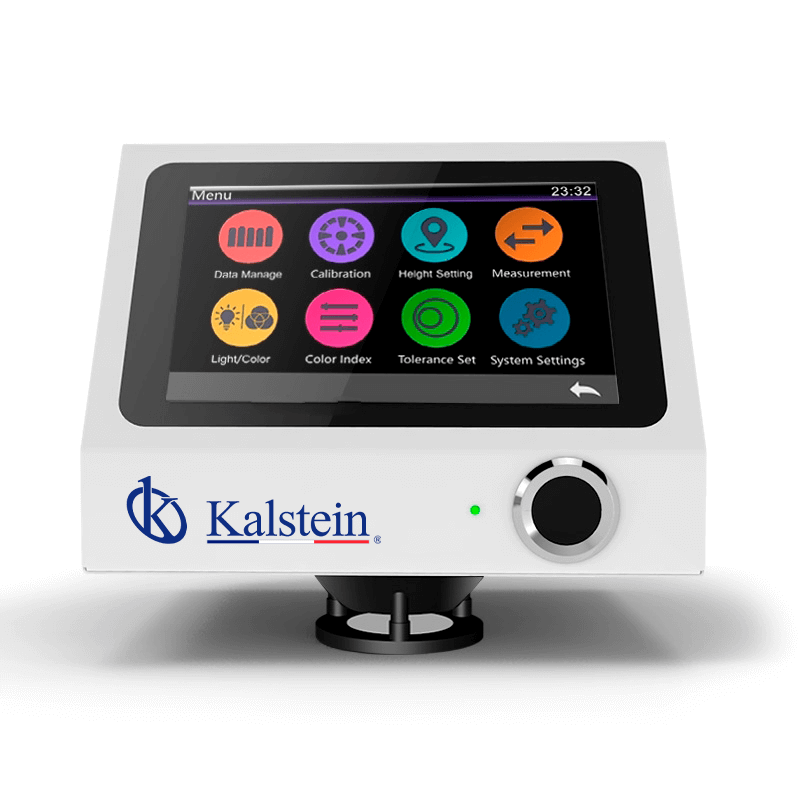

Understanding Measurement Interpretation with the YR05480 Spectrophotometer
The YR05480 Contactless Desktop Spectrophotometer is a cutting-edge instrument designed for precise color measurement without the need for direct contact with samples. This article delves into the unique functionalities of the YR05480, emphasizing how to interpret results effectively and accurately read measurements.
Overview of the YR05480 Spectrophotometer
The YR05480 utilizes a D/8 optical geometry with diffuse illumination and 8° reception to provide accurate measurements. It is particularly adept at handling liquids, sauces, powders, and other materials requiring non-contact color measurement. By utilizing advanced technologies such as a dual matrix 256-pixel CMOS image sensor and a full-spectrum LED light source, the YR05480 ensures high-resolution readings with rapid response times.
Technical Specifications of the YR05480
| Feature | Details |
|---|---|
| Model | YR05480 |
| Optical Geometry | D/8 (Diffuse illumination, 8° reception) |
| Measurement Technique | Non-contact measurement |
| Light Source | Full-spectrum LED |
| Measurement Time | As fast as 0.2 seconds |
| Measurement Distance | 3.0 mm (±0.2 mm) |
| Color Space | CIE LAB, XYZ, Yxy, LCh, and more |
| Data Storage | Up to 18,000 samples in quality control mode |
| Display Type | 7-inch Color TFT LCD |
How to Interpret Measurement Results
Understanding the reading from the YR05480 is crucial for accurate analysis. The instrument provides readings in various color spaces such as CIE LAB and XYZ, which are essential for color assessment in different industries. Here are the steps to correctly interpret the measurement results:
- Familiarize with Color Space: Understand the differences between CIE LAB, XYZ, and other color spaces to make informed decisions based on your specific needs.
- Check Calibration: Regular calibration against standardized colors is vital to ensure measurement accuracy.
- Assess Error Bars: Look for any error margins that accompany your measurements; this will give you an idea of the reliability of the data.
- Review Historical Data: Compare current readings with historical data to identify trends and anomalies in color measurements over time.
Common Misinterpretations in Color Measurements
Users often misinterpret the data provided by the YR05480. Here are some common pitfalls and how to avoid them:
- Ignoring Ambient Light Conditions: Measurements should always be taken in consistent lighting conditions to avoid variances caused by external factors.
- Neglecting Sample Preparation: Ensure that samples are properly prepared and free from contaminants that could affect readings.
- Confusing Color Spaces: Mixing up color spaces can lead to incorrect assessments. Always double-check the intended color space for your application.
Examples of Reading Display Outputs
The YR05480 provides readings in various formats, including numeric values and graphical displays. Here’s how to effectively read and analyze these outputs:
- Numeric Display: The numerical values represent the specific color coordinates; ensure you understand what each number represents in the context of your work.
- Graphical Representation: Utilize graphical displays for visual analysis, comparing current measurements against desired benchmarks.
Environmental Conditions for Accurate Measurements
To achieve accurate measurements with the YR05480, certain environmental conditions must be maintained. Here are vital considerations:
- Temperature: The operating temperature range should be maintained between 0-40°C.
- Humidity: Relative humidity should remain between 0-85% without condensation.
- Vibration and Electromagnetic Interference: Ensure the instrument is placed in a stable environment free from excessive vibration or electromagnetic interference.
Frequently Asked Questions
What types of samples can be measured with the YR05480?
The YR05480 is capable of measuring a variety of samples including liquids, sauces, powders, and solid materials, all without direct contact.
How often should the YR05480 be calibrated?
Regular calibration is recommended, ideally before each use or at least once a week, depending on the frequency of measurements and sample types.
What is the significance of using a full-spectrum LED light source?
A full-spectrum LED light source ensures accurate color measurement across the visible light spectrum, avoiding gaps that can occur with standard LEDs.
How can I troubleshoot inconsistent readings?
Inconsistent readings may result from environmental factors, sample contamination, or improper calibration. Check ambient conditions, ensure cleanliness, and calibrate the instrument before use.
What are the maintenance requirements for the YR05480?
Regular cleaning of the sensor and ensuring the calibration standards are followed will help maintain the instrument. It is also vital to check for software updates periodically.
Can the YR05480 be used for educational purposes?
Yes, the YR05480 is suitable for educational settings, providing practical applications in color measurement and analysis for students in scientific disciplines.
Conclusion and Call to Action
Mastering the interpretation of measurement results from the YR05480 is essential for achieving accurate and reliable outcomes. Understanding how to read measurements, knowing the best practices for sample preparation, and recognizing common misinterpretations can significantly enhance your operational efficiency.
If you are considering acquiring the YR05480 for your laboratory, request a quote through our exclusive channels.
