Installation and Commissioning Guide for the YR06299 Tilt Washing Machine
The YR06299 Tilt Washing Machine represents a significant advancement in industrial laundry technology, designed for efficiency and durability. This guide is intended to provide detailed instructions on the installation and commissioning process to ensure the optimal performance of this machine.
Overview of the YR06299 Tilt Washing Machine

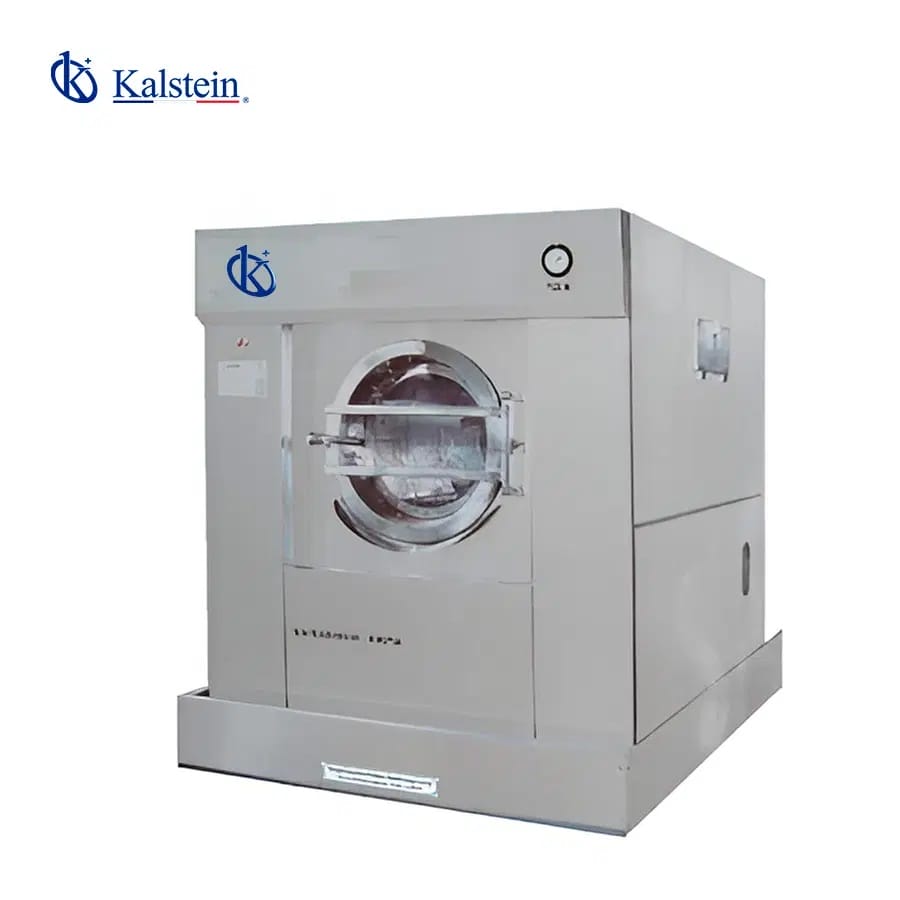

The YR06299 Tilt Washing Machine features a robust design, combining internal and external drums, a rotary lifting bearing system, shock absorbers, and a lifting cylinder. Built for high extraction efficiency, it offers four different speeds based on the material being processed. Its stainless steel construction ensures exceptional corrosion resistance and durability.
Technical Specifications of the YR06299
| Specification | Detail |
|---|---|
| Model | YR06299 |
| Rated Capacity | 100 kg |
| Drum Dimension | 1200-900 mm |
| Motor Power | 9kw, 1440r/min |
| Washing Speed | 30 r/min |
| Extracting Speed | 600 r/min |
| Inverter Power | 12kw |
| Steam Pressure | 0.4-0.6 Mpa |
| Water Pressure | 0.2-0.3 Mpa |
| Dimension | 1700x2300x2000 mm |
| Weight | 4000 kg |
Unboxing and Initial Setup
Upon receiving the YR06299, carefully unbox the unit. Ensure all components are present as per the checklist included with the machine. Inspect for any shipping damage and report immediately if found.
Once confirmed intact, prepare the installation area by ensuring it is clean and leveled. The machine must be anchored securely to prevent movement during operation.
Power-Up Sequence
To initiate the power-up sequence:
- Connect the machine to the power source ensuring proper voltage and frequency.
- Check all water and chemical inlet connections for leaks.
- Turn on the main power supply and allow the machine to self-check.
- Once the self-check is completed, you will see a confirmation on the display.
Calibration and First Run
The first run is crucial for calibrating settings. Choose a standard load and set the washing parameters according to the fabric type. Monitor the process closely to ensure proper functioning. Adjust settings as necessary based on the machine's performance.
Common Setup Mistakes
During installation and initial setup, the following mistakes should be avoided:
- Not leveling the machine properly, leading to instability.
- Failing to check for leaks in water connections.
- Improper electrical connections that might lead to short circuits.
- Ignoring the recommended clearance around the machine for ventilation.
Frequently Asked Questions
What should I check during the installation of the YR06299?
During installation, ensure that the machine is level, securely anchored, and that all connections (water, electrical, and steam) are properly sealed and leak-free.
How do I calibrate the YR06299 for the first use?
Calibration for the first use involves selecting the right washing parameters based on fabric type, running a test cycle, and adjusting settings as necessary based on the initial performance.
What are the common errors I should look for during the commissioning of the YR06299?
Common errors include incorrect speed settings, issues with water drainage, and improper steam pressure. Regular checks during the first few operations can help identify these issues early.
How do I maintain the YR06299 for optimal performance?
Regular maintenance includes checking for wear and tear on components, cleaning filters and drums, and ensuring that all connections remain secure and leak-free.
What is the expected lifespan of the YR06299?
The expected lifespan of a well-maintained YR06299 is typically over 10 years, depending on usage and maintenance practices.
