PCR Thermal Cyclers
PCR thermal cyclers are essential laboratory instruments used for amplifying DNA and RNA through the polymerase chain reaction (PCR) process. These devices enable scientists to perform a variety of genetic analyses, making them invaluable in research, clinical diagnostics, and biotechnology applications.
When selecting a PCR thermal cycler, it is crucial to consider factors such as temperature accuracy, cycling speed, and user-friendly features. Investing in the right thermal cycler can significantly impact the efficiency and reliability of your laboratory results.
What you should know before selecting a pcr thermal cyclers and making an investment
Key factors to consider
When choosing a PCR thermal cycler, it's important to evaluate key factors such as the temperature range, ramping speed, and sample capacity. A reliable thermal cycler should provide consistent heating and cooling rates to ensure precise and reproducible results in your experiments.
Additionally, consider the software features and ease of use, as modern devices often come with intuitive interfaces that facilitate protocol programming and data analysis, enhancing overall productivity in the lab.
Market price range
The price of PCR thermal cyclers varies widely based on their features and capabilities. Generally, basic models start at lower price points, while advanced systems with high throughput and additional functionalities can be significantly more expensive. It's essential to assess your laboratory's needs and budget when making a decision.
Investing in a more expensive, high-quality thermal cycler can lead to improved performance and longevity, which may prove to be cost-effective in the long run.
Value for money
When evaluating PCR thermal cyclers, consider the overall value for money rather than just the initial purchase price. High-quality units might come with a higher upfront cost but offer superior performance, reliability, and support throughout their lifespan.
Additionally, consider the warranty and service options provided by the manufacturer, as these can greatly influence the long-term value of your investment.
Expected lifespan based on use and maintenance
The lifespan of a PCR thermal cycler can vary depending on its quality, usage frequency, and maintenance practices. Generally, a well-maintained thermal cycler can last several years, making it a worthwhile investment for any laboratory.
Regular maintenance, including calibration and software updates, is essential to ensure optimal performance and extend the lifecycle of your equipment, allowing for consistent results in your PCR applications.
PCR THERMAL CYCLERS KALSTEIN
Discover pcr thermal cyclers for your laboratory
Explore our range of PCR thermal cyclers designed to meet the diverse needs of your laboratory. Each model offers unique features tailored for various applications, ensuring you have access to reliable and efficient tools for your research and testing.
Real-Time PCR YR06689 // YR06691
The YR06689 // YR06691 family represents excellence in real-time PCR systems, specifically designed to meet the experimental requirements of high-leve
View productReal-time PCR System YR06248 – YR06249
The Real-Time Quantitative PCR System YR06248 – YR06249 is a highly advanced tool designed for precise and sensitive PCR analysis. It features cutting
View productAutomatic Nucleic Acid Extractor YR01871
The Termocycler YR01871 is an advanced automated nucleic acid extraction system designed to provide high-precision and efficient results for a wide ra
View productOur best-selling pcr thermal cyclers
Real-Time PCR YR06689 // YR06691
Design and Technology (or Functionality)
The YR06689 // YR06691 systems integrate patented technologies that ensure consistent and precise results:- Superior Scanning System: It utilizes a high-brightness, long-life, maintenance-free LED light source with detection via photodiodes (PDs). By performing the scan from the top, interference is minimized and the signal is maximized.
- Peltier Thermal Control: Reaches heating rates of up to 6.1 °C/s, which drastically reduces the total time of PCR protocols.
- Operational Flexibility: Dual control mode allows the equipment to be operated autonomously via its 10.4-inch touch screen or through a direct PC connection.
- Experiment Protection: The automatic resumption function after power failures ensures that valuable data and samples are not lost in the event of a supply failure.
- Advanced Multiplexing: Capability to detect up to 6 different targets in a single well (on E and T models), optimizing reagent use and time.
Frequently Asked Questions (FAQ)
- What is the main difference between the model YR06689, YR06690, and YR06691? The difference lies primarily in the fluorescence channels. The YR06689 and YR06691 models feature 6 channels (ideal for complex clinical diagnostics and FRET), while the YR06690 offers 4 channels, covering the most common PCR applications.
- Which consumables can I use? They are compatible with standard 0.2 ml 96-well plates, 8-tube strips, and individual tubes (transparent, frosted, or white).
- How are result reports managed? The software includes reserved templates and allows for the creation of customized experiment reports that can be exported or printed directly following quantification or melting curve analysis.
Advantages and Disadvantages (Pros and Cons)
Advantages:- Scanning Speed: Only 7 seconds for a full plate reading.
- Thermal Stability: Exceptional temperature uniformity of ±0.1 °C ensures reproducible results between wells.
- Autonomy: Large internal storage capacity for up to 1000 results without needing a PC connection.
- Versatility: Supports applications for absolute and relative quantification, SNP analysis, and melting curve analysis.
- Bench Space: With a width of 555 mm for some models, it requires considerable workspace compared to portable units.
- Energy Consumption: Requires 900 VA; therefore, the use of a stabilized UPS is highly recommended.
Field Use and Recommendations
These units are ideal for third-level hospitals, Centers for Disease Control (CDC), and pharmaceutical laboratories. They are the ultimate tool for detecting infectious pathogens, cancer biomarker research, and food safety testing. Practical Tip: To ensure optical precision, always use high-quality optical consumables and ensure there is no condensation on the tube caps before starting the thermal cycle.Technical Specifications
| Parameter | characteristics | ||
| Model | YR06689 | YR06690 | YR06691 |
| Sample Throughput | ene-96 | ene-96 | ene-96 |
| Fluorescence Channels | 6 | 6 | 4 |
| Scanning Time | 7 s | 7 s | 7 s |
| Light Source | LED (Top scanning) | LED (Top scanning) | LED (Top scanning) |
| Detector | Photodiode (PD) | Photodiode (PD) | Photodiode (PD) |
| Heating Method | Peltier | Peltier | Peltier |
| Heating Rate | >6.1 C/s | >6.1 C/s | >6.1 C/s |
| Cooling Rate | >5.0 C/s | >5.0 C/s | >5.0 C/s |
| Temperature Uniformity | ±0.1 C | ±0.1 C | ±0.1 C |
| Temperature Accuracy | ≤0.1 C | ≤0.1 C | ≤0.1 C |
| Gradient Range | 1 C - 40 C | 1 C - 40 C | 1 C - 40 C |
| Control Screen | 10.4" Touch Screen | 10.4" Touch Screen | 10.4" Touch Screen |
| Internal Storage | 1000 results | 1000 results | 1000 results |
| PC Operating System | Win 7/10/11 | Win 7/10/11 | Win 7/10/11 |
| Power Consumption | 900 VA | 900 VA | 900 VA |
| Net Weight (kg) | 30 kg | 30 kg | 30 kg |
| Dimensions (LxWxH) | 55,5x47,5x48,4 cm | 55,5x47,5x48,4 cm | 35,5x47,5x48,4 cm |
| Consumables | 0.2ml Plate/8-tube strip | 0.2ml Plate/8-tube strip | 0.2ml Plate/8-tube strip |
Detailed analysis of pcr thermal cyclers for an effective and safe choice
Discover the Power of Kalstein's PCR Thermal Cyclers
PCR Thermal Cyclers, Brand Kalstein As someone who has delved deeply into the world of laboratory equipment, I can confidently say that Kalstein's PCR Thermal Cyclers stand out as remarkable tools in the scientific community. These devices are designed with precision and innovation, reflecting Kalstein's commitment to delivering high-quality instruments for DNA amplification. Their thermal cycler

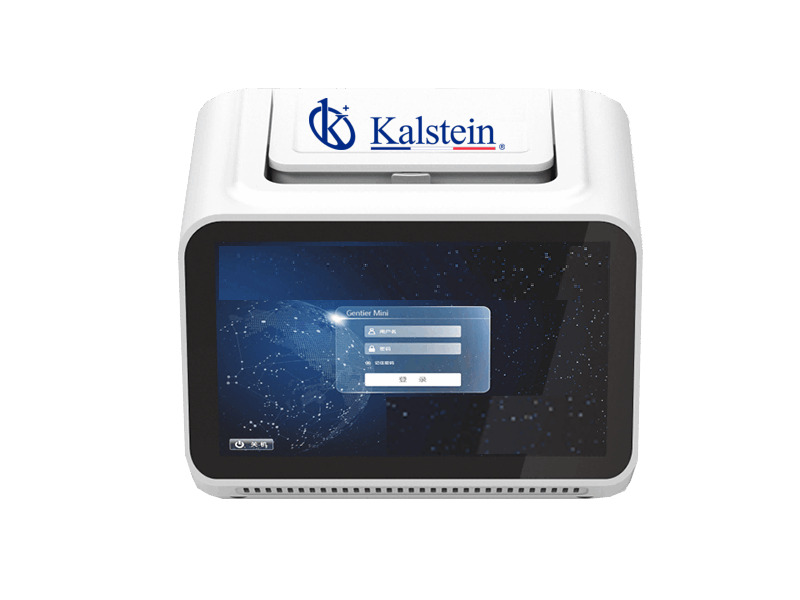

High-Precision PCR Thermal Cyclers for Advanced Genetic Diagnostics
The polymerase chain reaction (PCR) has revolutionized genetic diagnostics and biomedical research. PCR thermal cyclers have become an essential tool for DNA replication in laboratories worldwide, allowing for the precise amplification of DNA sequences for further analysis. As a scientist who has worked with various thermal cycler models, I can confirm that the precision and reliability of these devices are crucial for obtaining high-quality results, especially in advanced applications such as genetic diagnostics.

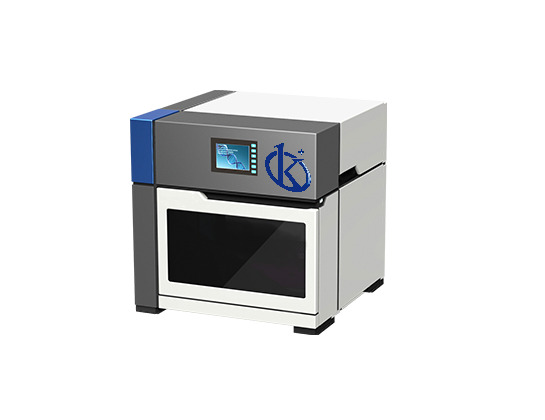

Revolutionize Your Genetic Research with Innovative PCR Thermal Cyclers
As a leader in the laboratory equipment industry, Kalstein has designed the most advanced PCR thermal cyclers available on the market. Cutting-edge technology in the field of Polymerase Chain Reaction (PCR) provides scientists and laboratory analysts with top-tier DNA amplification results.
PCR Thermal Cycler Technology for Rapid DNA and RNA Analysis
In recent years, the polymerase chain reaction (PCR) has proven to be an indispensable tool in genetic and molecular research. PCR thermal cyclers have played a key role in enabling fast and accurate DNA and RNA analysis, driving significant advances in fields such as biomedicine, forensic genetics, and disease diagnostics. As someone who has worked with various thermal cyclers, I can confidently say that choosing the right equipment directly impacts the quality and speed of the results obtained.
pcr thermal cyclers offer catalog
Guides about pcr thermal cyclers
Complete guides to choose pcr thermal cyclers
Correct Maintenance and Care of PCR Thermalcyclers
PCR thermal cyclers, also known as temperature grinders, are crucial tools in the field of molecular biology and instrumental in performing protein and DNA assays. However, proper maintenance of these machines is vital to ensure the accurac
Leer más

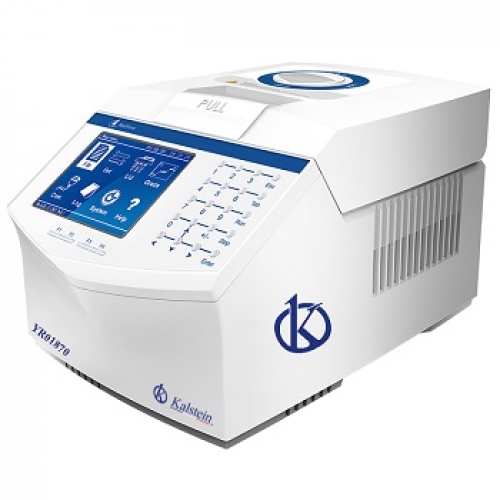

Essential PCR Thermal Cycler Performance and Applications in Laboratory Diagnostics
Laboratories are dynamic and highly demanding environments, where every process is constantly being optimized to ensure efficiency, accuracy and reliability. Within this landscape, PCR (Polymerase Chain Reaction) thermal cyclers become indi
Leer más

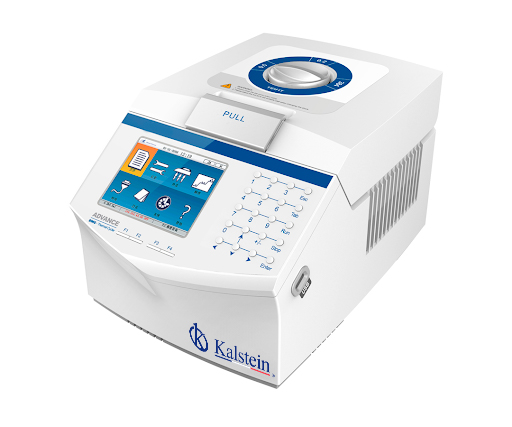

Efficient Use of PCR Thermocyclers
However, laboratory efficiency does not depend simply on the acquisition of a PCR thermal cycler, but on its efficient use. Optimizing the use of these devices can lead to a significant increase in laboratory productivity.
Leer más
Recent Innovations in PCR Thermocyclers
The PCR allows real-time monitoring of the PCR reaction, enabling more accurate and rapid measurement of nucleic acid levels. On the other hand, dPCR takes nucleic acid detection and quantification to even more detailed levels by dividing t
Leer másFrequently asked questions about PCR Thermal Cyclers
How to know the prices of PCR Thermal Cyclers?
To know the price of PCR Thermal Cyclers, please send us an email with your request through the contact form AQUI.
What are the delivery times for PCR Thermal Cyclers?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of PCR Thermal Cyclers?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for PCR Thermal Cyclers?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for PCR Thermal Cyclers?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
