Description

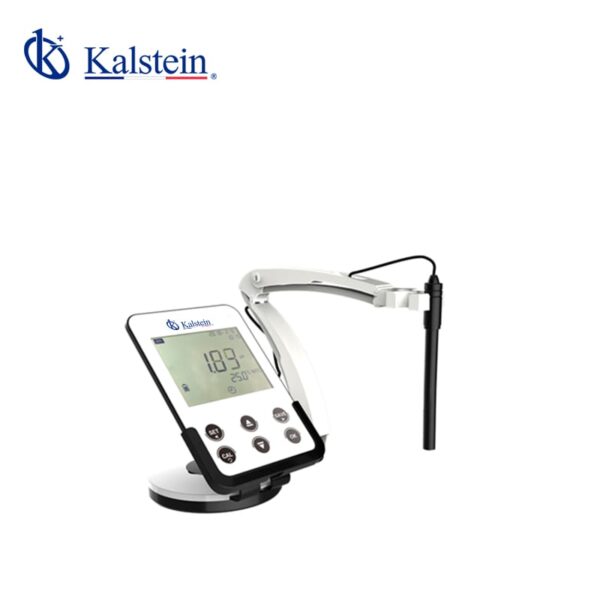

The Benchtop DO / Conductivity Meter YR01837 is an advanced laboratory tool designed for precision and convenience. Equipped with a 6.5-inch LED screen, it offers a user-friendly interface, making data analysis straightforward and efficient. The integrated microprocessor provides intelligent functions such as automatic calibration, automatic temperature compensation (ATC), data storage, clock display, and wireless printing. With its capability to connect via USB and Bluetooth, the YR01837 ensures seamless data transfer and storage options, enhancing your laboratory’s workflow. This model can store up to 1000 sets of test data, easily exportable to USB for Excel analysis.
Market Price
The Benchtop DO / Conductivity Meter YR01837 generally falls within the price range of $500 to $800 USD, providing advanced conductivity measurement technology at an excellent value. While prices may vary depending on the supplier and additional service options, this range gives a fair idea of what to expect when investing in this state-of-the-art equipment.
Frequently Asked Questions
What types of measurements can this meter perform?
The YR01837 measures conductivity, TDS, salinity, and resistivity, ensuring versatility for various applications.
How does the meter manage data storage?
It can store up to 1000 sets of data, which can be transferred to a USB stick and opened with Excel.
Advantages and Disadvantages
Advantages: The YR01837 boasts a high level of accuracy with an electrode precision of ±0.5% FS and meter accuracy of ±0.8% FS. The robust LED screen and Omron long-lasting keys enhance usability. It supports wireless Bluetooth printing, making data handling more convenient.
Disadvantages: The initial setup might require additional time for those unfamiliar with Bluetooth connectivity and data export functionalities.
Product Use in the Field
This meter is ideal for laboratories, quality control environments, and research applications where precise conductivity readings are needed. Its comprehensive measurement capabilities are advantageous for soil testing, water quality analysis, and chemical and pharmaceutical research.
Recommendations
Regular calibration and cleaning of the electrodes are recommended to maintain accuracy and prolong the lifespan of your meter. Utilize the data storage feature actively to back up important readings, minimizing data loss risks. Explore automatic temperature compensation settings to handle varying environmental conditions seamlessly.
Features
- 6.5-inch LED screen with user-friendly interface
- Automatic calibration and temperature compensation
- Bluetooth and USB connectivity
- Storage capacity for 1000 data sets
- Comprehensive measurement modes: Conductivity, TDS, Salinity, Resistivity
- Smart electrode status display
- Compatible with multiple conductivity standard solutions
Technical Specifications
| Model | YR01837 | |
|
Cond.
|
Measuring range
|
Conductivity: |
| (0.00~20.00)μS/cm, (20.0~200.0)μS/cm | ||
| (200~2000)μS/cm, (2.00~20.00)mS/cm | ||
| (20.0~200.0)mS/cm, | ||
| (200~2000)mS/cm (K=10) | ||
| TDS:(0 ~ 100)g/L | ||
| Salinity:(0 ~ 100)ppt | ||
| Resistivity:(0 ~ 100)MΩ·cm | ||
| Resolution | 0.01/0.1/1μS/cm; 0.01/0.1mS/cm | |
| Accuracy | Electrode: ±0.5% FS, Meter: ±0.8% FS | |
| Temp. compensation | (0 ~ 50)ºC, auto | |
| Electrode constant | 0.1 / 1 / 10 cm-1 | |
| Reference Temp. | 25ºC,20ºC,18ºC | |
|
Temp.
|
Measuring range | (0 ~ 100)ºC |
| Resolution | 0.1ºC | |
| Accuracy | 5 ~ 60ºC:±0.4ºC Others: ±0.8ºC | |
|
Other
|
Display | 6.5-inch LED screen |
| Data storage | 1000 sets | |
| Power | 12V/1A | |
| Output | USB, RS232, Bluetooth | |
| Ambient Temp. | 5 ~ 35 ºC | |
| Ambient Humidity | ≤85% | |
| IP grade | IP54 | |
| Dimensions/N.W. | 240×170×70mm/600g | |
| Shipping Size/G.W. | 470x430x85mm/2.6kg | |
