Recirculating Chiller
Recirculating chillers are essential pieces of equipment designed to provide precise temperature control in various medical, laboratory, and industrial applications. These chillers work by continuously circulating a coolant through a closed loop to maintain a stable and consistent cooling environment, ensuring optimal performance of sensitive instruments and processes.
Their utility spans across applications such as cooling medical devices, laboratory apparatus, laser systems, and chemical reactors where reliable temperature regulation is critical. By using recirculating chillers, facilities improve efficiency, reduce downtime, and protect equipment from overheating or thermal damage.
What You Should Know Before Selecting a Recirculating Chiller and Making an Investment
Key Factors to Consider
When selecting a recirculating chiller, it is vital to consider the cooling capacity required for your specific applications. The chiller must be able to handle the thermal load efficiently to avoid temperature fluctuations that could affect sensitive equipment performance.
Additionally, evaluating the temperature range and stability of the chiller is crucial. Ensure the model chosen can achieve and maintain the necessary setpoints consistently, as this directly impacts process quality and reliability in medical and laboratory environments.
Price Range in the Market
Market prices for recirculating chillers can vary significantly depending on capacity, features, and brand reputation. Entry-level models suitable for smaller applications tend to be more affordable, while industrial-grade chillers with advanced controls command higher prices.
It is important to compare prices with the chiller’s technical specifications and support services. Investment in a reputable and well-supported product often translates to lower long-term operational costs and better performance.
Quality-Price Ratio
The quality-to-price ratio is best assessed by focusing on the chiller’s durability, energy efficiency, and ease of maintenance. Kalstein chillers offer high reliability and precision, making them a cost-effective choice over their operational lifecycle.
Choosing a chiller with robust construction and components will reduce downtime and repair costs, increasing overall value. Investing in quality ensures sustained performance and fewer disruptions in critical laboratory processes.
Life Expectancy Based on Usage and Maintenance
The life expectancy of a recirculating chiller depends largely on usage conditions and maintenance practices. Regular cleaning, timely replacement of consumables, and adherence to manufacturer guidelines extend the operational life significantly.
Proper maintenance practices, including coolant checks and system calibration, help prevent breakdowns and preserve the cooling system’s integrity over years of service, guaranteeing consistent temperature control.
KALSTEIN RECIRCULATING CHILLERS
Among many products, at Kalstein you can find the ideal recirculating chiller for your Laboratory
If you don’t know which recirculating chiller to buy, we recommend evaluating your cooling requirements, including capacity, temperature range, and application type. Kalstein offers a diverse range of options designed to meet the unique needs of your laboratory, ensuring efficiency and durability tailored to your specific processes.
YR06705 Recirculating Chiller
The YR06705 Recirculating Chiller is a robust and highly efficient solution for processes requiring rigorous thermal con…
Water Recirculation System for Cooling YR06663
The YR06663 Cooling Water Recirculation System is a professional solution designed to ensure stable, efficient, and cont…
Recirculating Chiller YR02301
The Recirculating Chiller YR02301 is a compact, efficient solution tailor-made for laboratory-scale rotary evaporators….

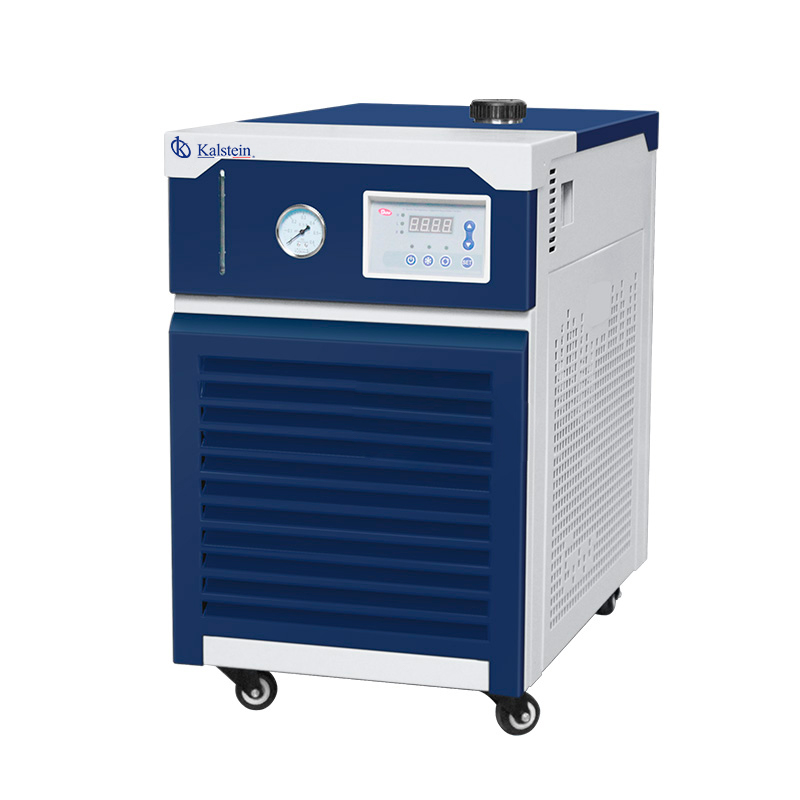

Recirculating Chiller YR02293 – YR02296
The Recirculating Chiller YR02293 – YR02296 is an essential tool designed to provide consistent low temperatures for a w…
Our recirculating chiller best seller
The YR06705 Recirculating Chiller is a robust and highly efficient solution for processes requiring rigorous thermal control. Designed with a forced-air cooling system and using the environmentally friendly refrigerant R410A , this unit guarantees a cooling capacity of 1500 W. Its architecture is designed for integration into environments where stability is critical, offering an adjustable range of 5 °C to 40 °C with exceptional accuracy of ±0.2 °C .
The YR06705 stands out for its high-performance pump capable of delivering a maximum flow rate of 40 L/min and a pressure of 0.14 MPa, ensuring smooth recirculation even in circuits with some resistance. Its 5-liter tank is designed to work with water or 15% ethylene glycol mixtures, preventing freezing in low-temperature applications.
| Model | YR06705 |
| Cooling Mode | Forced air (Air Cooling) |
| Refrigerant | R410A |
| Temperature Control | PID Control |
| Temperature Adjustment Range | 5°C to 40°C |
| Temperature Stability | ±0.2°C |
| Cooling Capacity | 1500 W |
| Circulation System | Water / 15% Glycol Solution |
| Maximum Pump Pressure | 0.14 MPa |
| Maximum Pump Flow Rate | 40 L/Min |
| Tank Volume | 5 Liters |
| Inlet/Outlet Diameter | Rc 1/2 |
| Electrical and Operational Data | |
| Parameter | Worth |
| Power Supply | 220-240V~, 50Hz |
| Total Power | 1160 W |
| Total Current | 6.2 A |
| Noise Level | 68 dB |
| Security Protections | Overload, overcurrent, overheating, pressure and liquid level. |
Choosing the right chiller improves laboratory cooling performance drastically.
Unlocking the Potential of Recirculating Chillers: The Ultimate Cooling Solution for Laboratories
The Recirculating Chiller from Kalstein is a well-regarded product in laboratory environments globally. Its design and functionality are crafted with precision…
What is a recirculation chiller used for?
A recirculation chiller is laboratory equipment that is a high-efficiency closed cooling system used in various external cooling applications. These devices are…
Recirculating Chiller: Optimal Thermal Control for Scientific Experiments and Industrial Processes
Recirculating chillers have revolutionized the way we control temperature in scientific experiments and industrial processes. By offering an efficient and preci…
Recirculating Chillers for Thermal Control in Laboratory Equipment
Recirculating chillers are essential equipment in research, biotechnology, and pharmaceutical laboratories that require precise thermal control to optimize the…
Kalstein updates its chillers to meet the latest industry standards.
Detailed guides help select and maintain your recirculating chiller for optimal service life.
Our comprehensive guides and expert recommendations provide all you need to operate your recirculating chiller like a true professional, from installation to advanced maintenance techniques, ensuring maximum efficiency and reliability.
Technology of Recirculating Chillers for Stable Scientific Processes
Recirculating chillers are essential instruments in modern laboratories. Their ability to maintain precise and constant temperatures is vital for a wi…
Innovation and Technology with Recirculating Chillers
Recirculating machines are an indispensable tool in leading laboratories advancing science. This specialized equipment preserves and protects the inte…
Optimize your Laboratory Tests: The Advantage of Compact Recirculating Chillers for Rotary Evaporators
Professionals in laboratories recognize the value of performance and efficiency in their daily operations, and Kalstein, as a leading manufacturer of…
What are the precautions to keep in mind when using recirculating coolers for evaporators in the chemistry laboratory?
The use of refrigeration equipment in chemistry laboratories is an important part of various chemical operations. Evaporator recirculation coolers are a good tool to use for this purpose. These coolers make it possible to supply refrigeration devices…
