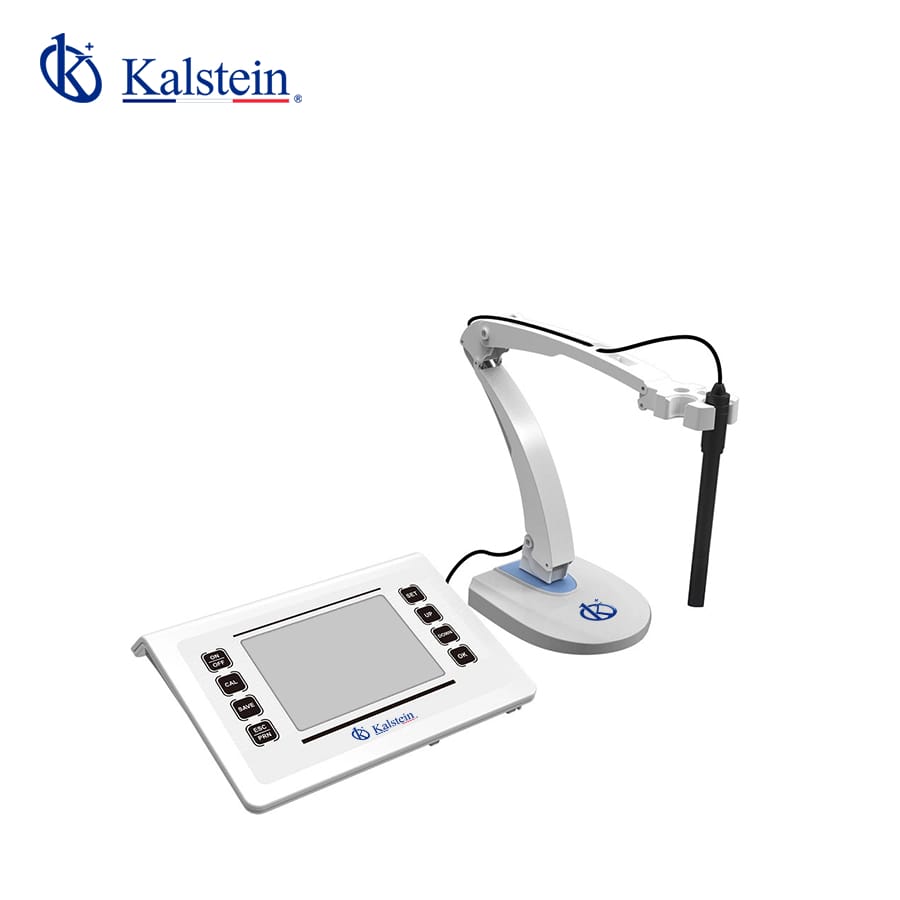

Benchtop Dissolved Oxygen Meter YR01833
Fabricante: Kalstein
Product Description
Precision laboratory dissolved oxygen meter, 1 or 2 points calibration, setup menu contains 9 options, accuracy: 0.2mg/L.
Features:
• Precision laboratory dissolved oxygen meter is equipped with a large backlit LCD display.
• 1 or 2 points calibration using the air-saturated water or zero oxygen solution.
• Salinity and barometric pressure compensations eliminate the measurement error.
• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-Read function senses and locks the measurement endpoint.
• Calibration due alarm prompts user to calibrate the meter regularly.
• Setup menu allows setting the number of calibration points, resolution, stability criteria, date
and time, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 500 data sets.
• USB communication interface for data transfer and timed interval readings.
| Model | YR01833 |
| Dissolved Oxygen | |
| Range | 0.00 to 20.00mg/L |
| Resolution | 0.01, 0.1mg/L, selectable |
| Accuracy | ±0.2mg/L |
| % Saturation of Oxygen | |
| Range | 0.0 to 200.0% |
| Resolution | 0.1, 1%, selectable |
| Accuracy | ±2.0% |
| General Specifications | |
| Calibration Points | 1 or 2 points |
| Temperature Compensation | 0 to 50°C/32 to 122°F, automatic |
| Pressure Correction | 60.0 to 112.5kPa/450 to 850mmHg, manual |
| Salinity Correction | 0.0 to 50.0g/L, manual |
| Stability Criteria | Low or high |
| Calibration Due Alarm | 1 to 31 days or off |
| Hold Function | Manual or auto-endpoint |
| Memory | Stores up to 500 data sets |
| Output | USB communication interface |
| Connector | 6-pin nimi-DIN |
| Display | Custom LCD (125×100mm) |
| Power | DC5V, using AC adapter, 220V/50Hz |
| Dimensions | 210(L)×188(W)×60(H)mm |
| Weight | 1.5kg |
| Order Code | Accessories |
| YR01833 | DO100 dissolved oxygen electrode |
| DO electrolyte solution | |
| DO membrane cap | |
| USB cable | |
| DC5V power adapter |
Additional Information
| Weight | 1,7 kg |
|---|---|
| Dimensions | 31 × 26 × 20 cm |
