Patient and Fetal Monitor
This medical equipment, required in clinics and hospitals, is used to monitor and control the vital signs of the patient connected to the device and requiring continuous monitoring, this device detects, processes and records the physiological and cardiac parameters of the patient, the design of these equipment should be simple to facilitate use by medical staff, nurses and paramedics.
These electronic devices are intended to collect, display and store all vital signs of the pediatric patient. The parameters are displayed separately on the monitor, where the digital value of the parameter and its graphical representation will be displayed. In the event that any of these parameters is below or above the normal for the patient, or any other adverse activity occurs, an alarm is triggered to alert physicians. The alarms built into these devices are visual and sound, although they can be easily silenced if the problem that generated them is being solved.
Types of Patient and Fetal Monitor that the Medical Sector may need

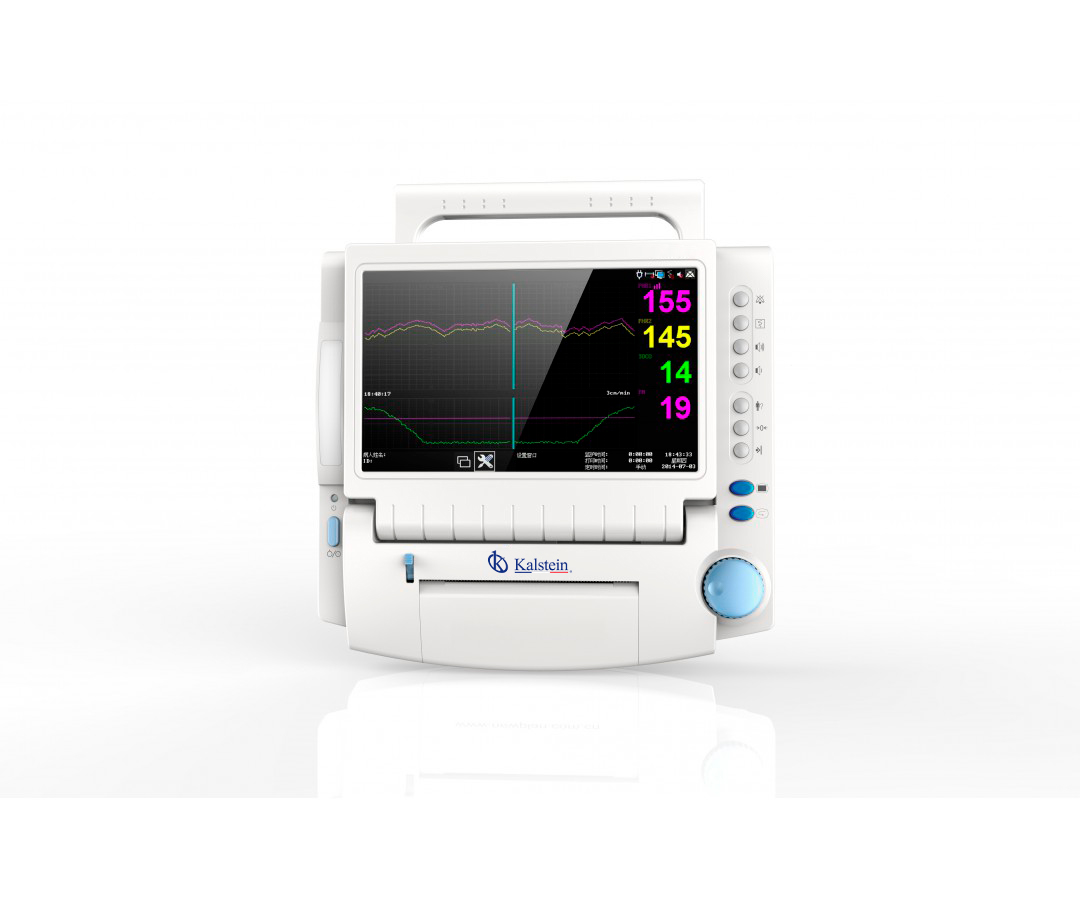

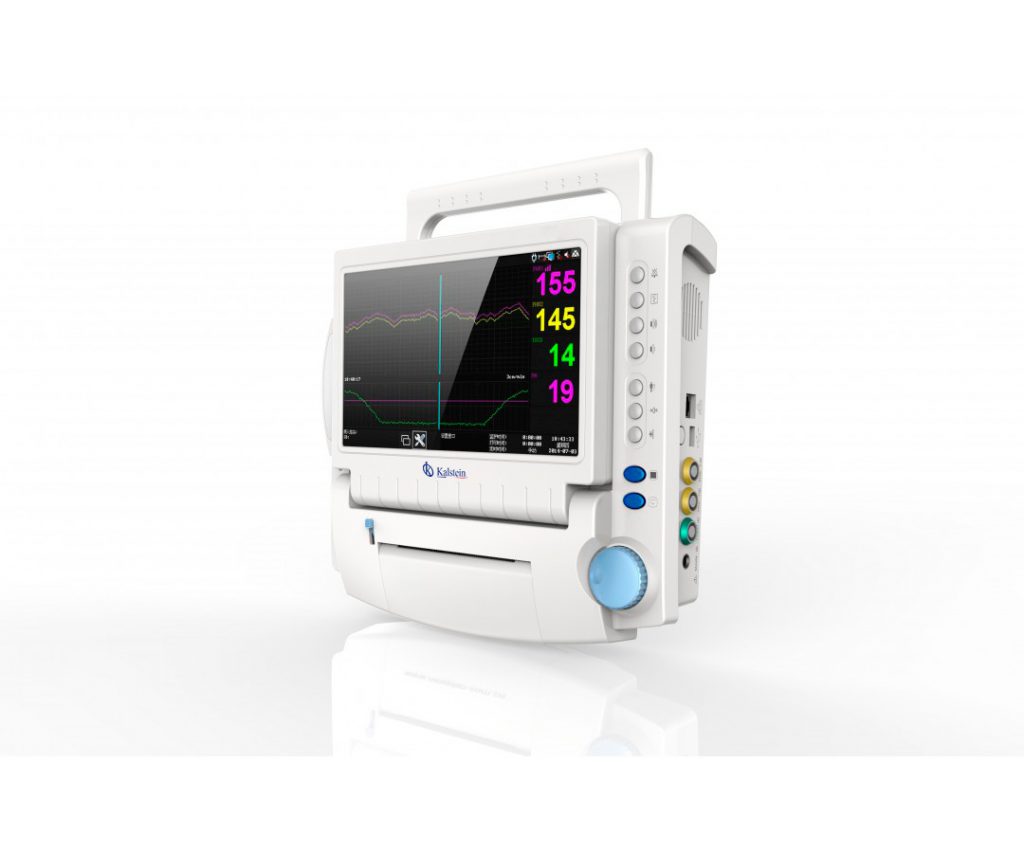

Fetal Doppler Ultrasound Monitor YR02181
10.2 inch TFT large screen color display, digital display and value waveform oscilloscope twins heart rate (FHR) and uterine...
Patient monitors YR02170 // YR02172
8.4-inch touch screen, ECG (3 leads), Suntech NIBP, Masimo SpO2, RESP, singal TEMP, HR/PR,Multiple display interface...
Multi-parameter Patient Monitor YR02177
Adult, kid and newborn monitoring are supported. Slim body with a hidden handle, easy to move;. Visual and audio alarm...
Patient Monitor YR02175
Medium and high complexity semi-modular monitor, specially designed to be used in the ICU, Ward and Emergency Room in Adult, Pediatric or Neonatal...
Our best-selling Patient and Fetal Monitor
- 12.1-inch, high-resolution LCD display; 35-million-click, long-lasting touchscreen display with Accutouch technology; Maximum 168 hours of graphic and tabular trends of all parameters; Adjustable breathing cable helps get accurate RESP readout for different patients; Slim 120mm design that's a modern and cheap place; 112mm removable wide-range printer can generate 7 waveforms simultaneously.
12.1-inch high resolution LCD screen; - 35 million-click, long-lasting touchscreen display with Accutouch technology
- Maximum 168 hours of graphical and tabular trends of all parameters;
Model | YR02173 |
ECG | |
Type of lead | 3 leads or 5 selectable leads |
Contribution: | 3-conductor cable: RA; LA; LL or R; L; F |
Lead Selection
|
3 leads: I, II, III |
Slead: I, Il, Il, V, AVR, AVL, AVF | |
ECG waveform | 2 channels |
Win | x0.25, x0.5, x 1, x2, x4, Auto |
Scan Speed | 12.Smm/s, 25 mm/s, 50 mmls |
Broadband
|
Diagnostic mode: 0.05-100Hz |
Monitor Mode: 0.5-40Hz | |
Surgical mode: 1.0-25Hz | |
Defib. Protection
|
Supports 5000VAC / 50Hz voltage in isolation |
Against electrosurgical interference and defibrillation | |
ST segment discovery
|
Measuring range: -2.0 mv to 2.0 mv |
Alarm range: -2.0 mv to 2.0 mv | |
Arrhythmia analysis | yes |
Rhythm Detection | yes |
Calculating drug dose | yes |
Standby Mode | yes |
Heart rhythm | |
Distance
|
Neonate: 15 to 350 rpm |
Adult / Pediatric: 15-300 rpm | |
Accuracy | 1 bpm or 1%, whichever is greater |
Resolution | 1 bpm |
Alarm range
|
Newborn: 15~350rpm |
Adult / Pediatric: 15-300 rpm | |
Breathing | |
Method | Thoracic impedance |
Measurement Range
|
Neonate / pediatric: 0-150 rpm |
Adult: 0-150 rpm | |
Apnea alarm | Yes, no alarm, 1 Os, 15 s, 20 s, 25 s, 30 s, 35 s, 40 s selectable |
Resolution | 1 rpm |
Scan Speed | 6.25 mm/s, 12.5 mm/s, 25 mm/s |
PANI | |
Method | Oscillometric |
Modes of operation | Manual.Auto.STAT |
Parameters | Systolic, Mean Diastolic |
Systolic pressure range
|
Adult: 40-270 mm Hg |
Pediatric: 40-200 mm Hg | |
Neonate: 40 to 135 mm Hg | |
Diastolic pressure range
|
Adult: 10-210 mm Hg |
Pediatric: 10-150 mm Hg | |
Neonate: 10 to 100 mm Hg | |
Mean pressure range
|
Adult: 20-230 mm Hg |
Pediatric: 20-165 mm Hg | |
Neonate: 20 to 110 mm Hg | |
Accuracy | ± 6 mmHg (± 0,80 kpa) |
Resolution | 1 mmHg |
Overpressure protection | Dual safety guard |
Analysis of the best Patient and Fetal Monitor fo the Medical Sector
What is a multiparameter monitor?
A multi-parameter monitor is an electronic medical equipment that allows monitoring of...
Monitor pediatric or pediatric patients
A pediatric patient monitor or also called a children's monitor is a medical and electronic...
Parameters measured by a patient monitor
A patient monitor is medical equipment designed to monitor vital physiological...
Patient monitor - Usage rules
A patient monitor is a medical device that collects and stores vital signs of the patient, which together with alarm systems...
Catalog of Patient and Fetal Monitor models on offer
-
Multi-parameter Patient Monitor YR02177
-
Doppler Fetal Monitor YR02180
-

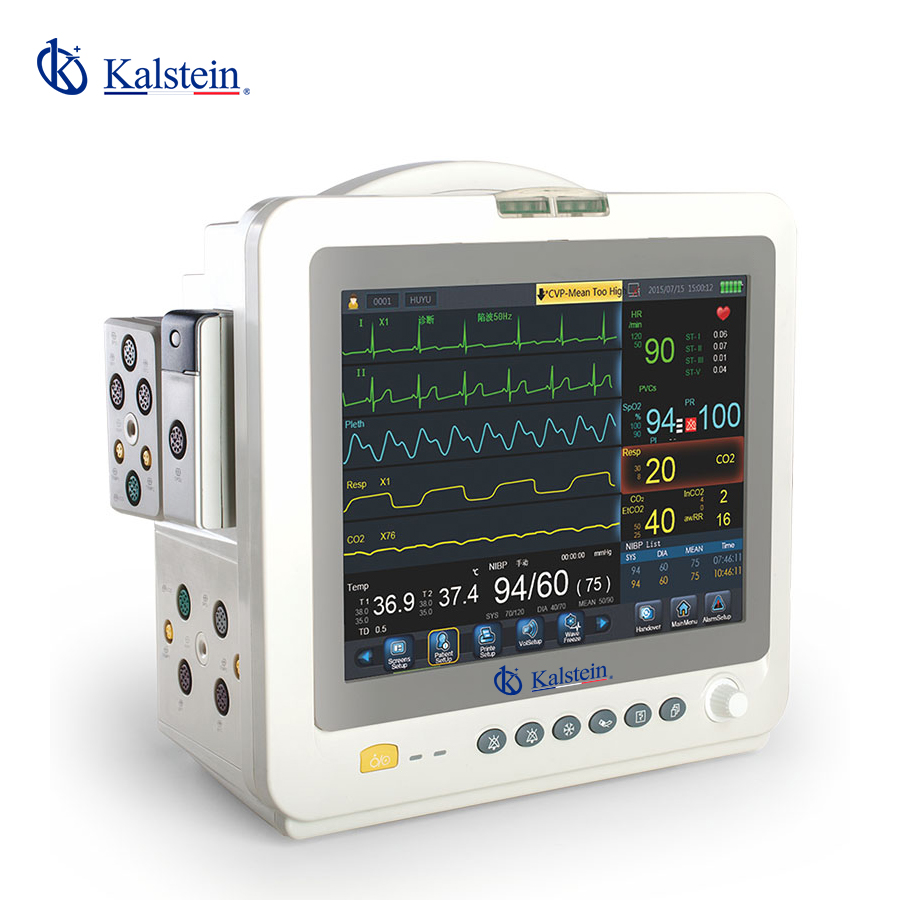

Multi-parameter patient monitor YR02178 // YR02179
Select options -
Bedside Monitor YR02174
-
Bedside Monitor YR02173
-
Patient Monitors YR02170 // YR02171 // YR02172
Select options -
Doppler Ultrasound Fetal Monitor YR02181
-

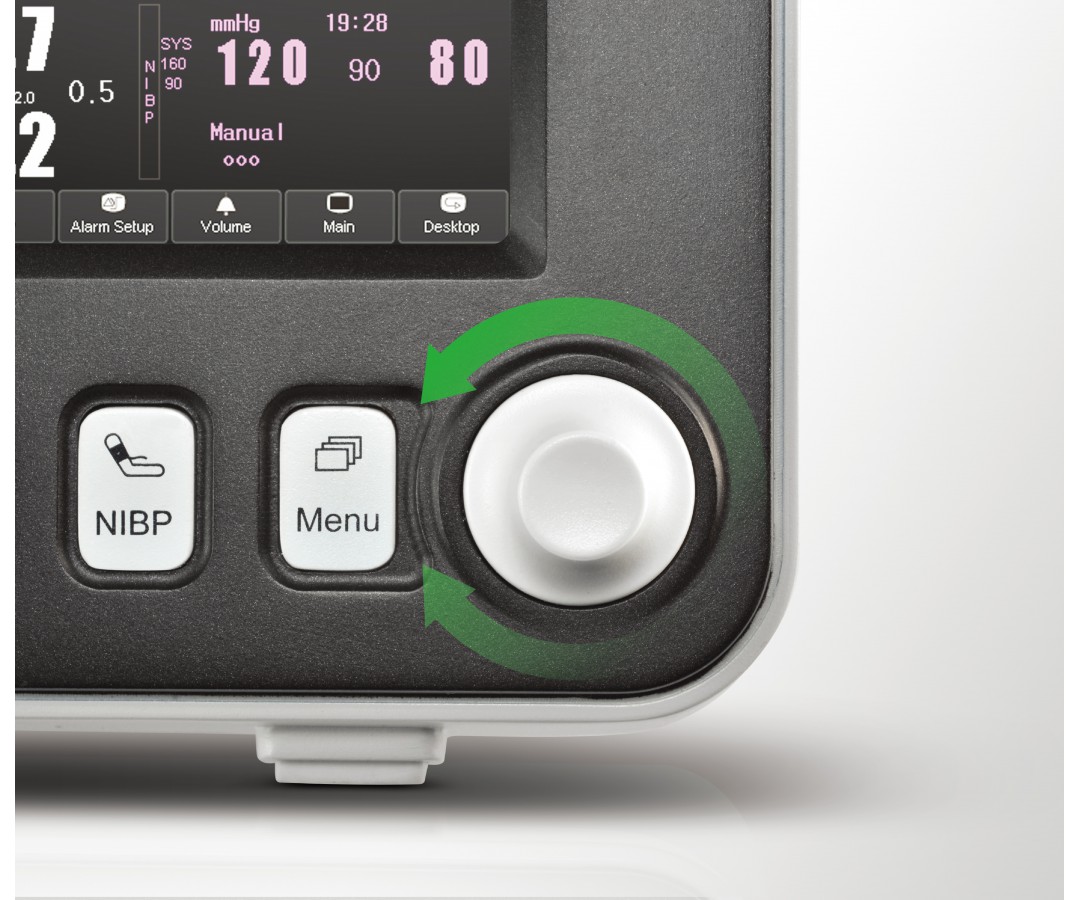

Patient Monitors YR02176
Guidelines to become an expert in Patient and Fetal Monitor
How do you explain a Patient Monitor? - Medical Sector
The Patient Monitor is a multifunctional instrument designed to monitor vital functional signs of adult and pediatric patients. This medicine...
Patient Monitor, How To Read On A Vital Signs Monitor?
This medical equipment, required in clinics and hospitals, is used to monitor and control the vital signs of the patient connected to the device...
Characteristics of a Pediatric Vital Signs Monitor
A pediatric vital signs monitor or also called a pediatric vital signs monitor is an electronic equipment that allows the detection...
How many parameters does a vital sign Monitor have?
A vital signs monitor is electronic devices commonly used in intensive care units, and hospitalization and emergency services to continuously monitor the patient’s vital signs or constants, as these equipment has the ability to continuously detect, process...
Customer FAQs about Patient and Fetal Monitor
How to know the prices of Patient Patient and Fetal Monitor?
To know the price of Patient and Fetal Monitor we invite you to send us an email with your request through the contact form.
What are the lead times of Patient and Fetal Monitor?
The delivery time of your Kalstein product it will depend on the following:
- If the equipment of your interest is in stock or if otherwise it must be manufactured.
- The type of freight you have chosen may be; air or sea.
- Equipment in stock:
- Delivery Time ( Aerial ): 15 -30 days .
- Delivery Time ( Maritime ): 45-60 days .
- Equipment not in stock:
- Delivery Time ( Aerial ): 30 -60 days .
- Delivery Time ( Maritime ): 60-90 days .
How to make a purchase of Patient and Fetal Monitor?
It may perform your purchase through :
- By email: s[email protected]
- By telephone: +33 (0) 1 78 95 87 02
- Trade electronic : Through from Kalstein official website in your country .
How does the warranty work?
At Kalstein we make it easy for our customers to provide induction and technical support through new online methods. You can visit our induction, technical assistance and guidance videos provided by a Kalstein team through our induction channel Youtube (Kalstein English) HERE
