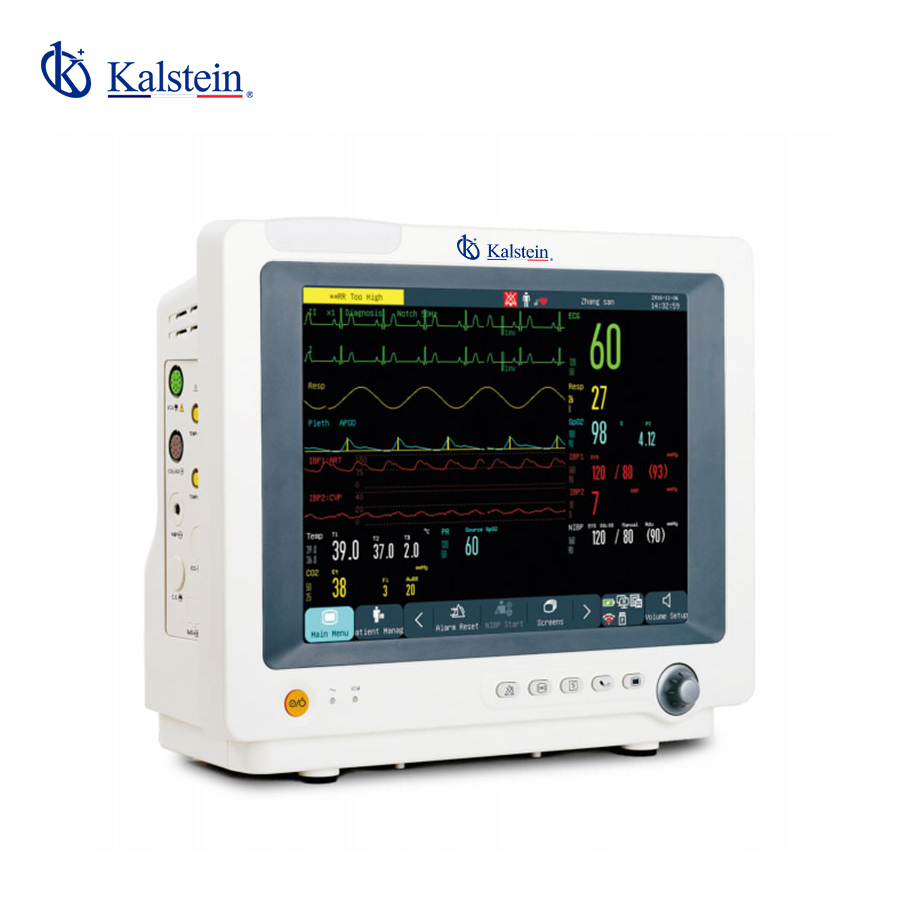

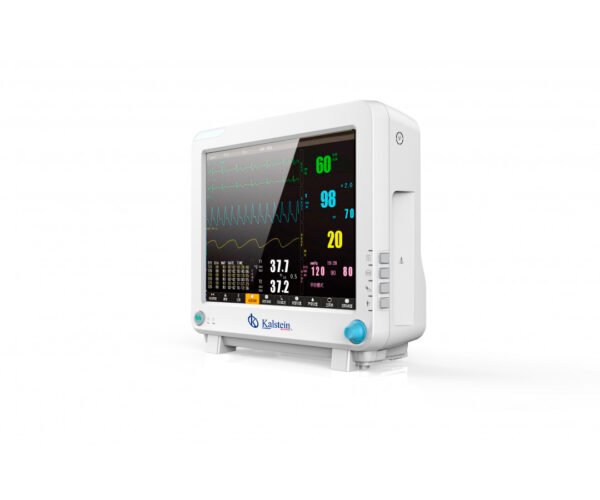

Bedside Monitor YR02173
Manufacturer: Kalstein
Manufacturer: Kalstein
Product Description
12.1 inch high resolution LCD display; 35 million clicking times long life touch screen with Accutouch technology; Maximum 168 hours graphic and tabular trends of all parameters; Adjustable respiration lead helps to get accurate RESP reading for different patients; 120mm slim design which is modern and saving place; 112mm removable wide range printer can output 7 waveforms simultaneously.
- 12.1 inch high resolution LCD display;
- 35 million clicking times long life touch screen with Accutouch technology;
- Maximum 168 hours graphic and tabular trends of all parameters;
- Adjustable respiration lead helps to get accurate RESP reading for different patients;
- 120mm slim design which is modern and saving place;
- l112mm removable wide range printer can output 7 waveforms simultaneously.
| Model | YR02173 |
| ECG | |
| Lead type | 3 leads or 5 leads selectable |
| Input | 3-conductor cable: RA; THE; LL or R; L; F |
|
Lead selection
|
3 leads: I, II, III |
| Slead: I, Il, Ill, V, AVR, AVL, AVF | |
| ECG waveform | 2 channels |
| To win | x0.25, x0.5, x 1, x2, x4, Automatic |
| Sweep speed | 12.Smm / s, 25mm / s, 50mmls |
|
Broadband
|
Diagnostic mode: 0.05-100Hz |
| Monitor mode: 0.5-40Hz | |
| Surgical mode: 1.0-25Hz | |
|
Defib. Protection
|
Supports voltage of 5000VAC / 50Hz in isolation |
| Against electrosurgical interference and defibrillation | |
|
ST segment detection
|
Measurement range: -2.0 mv to 2.0 mv |
| Alarm range: -2.0 mv to 2.0 mv | |
| Arrhythmia analysis | Yes |
| Rhythm detection | Yes |
| Calculation of drug dose | Yes |
| Standby mode | Yes |
| Heart rate | |
|
Distance
|
Newborn: 15-350 rpm |
| Adult / pediatric: 15-300 rpm | |
| Precision | 1 bpm or 1%, whichever is greater |
| Resolution | 1 bpm |
|
Alarm range
|
Newborn: 15 ~ 350 rpm |
| Adult / pediatric: 15-300 rpm | |
| Breathing | |
| Method | Thoracic impedance |
|
Measuring range
|
Newborn / Pediatric: 0-150 rpm |
| Adult: 0-150 rpm | |
| Apnea alarm | Yes, no alarm, 1 Os, 15 s, 20 s, 25 s, 30 s, 35 s, 40 s selectable |
| Resolution | 1 rpm |
| Sweep speed | 6.25mm / s, 12.5mm / s, 25mm / s |
| NIBP | |
| Method | Oscillometric |
| Modes of operation | Manual.Auto.STAT |
| Parameters | Systolic, Middle Diastolic |
|
Systolic pressure range
|
Adult: 40-270 mmHg |
| Pediatric: 40-200 mmHg | |
| Newborn: 40-135 mmHg | |
|
Diastolic pressure range
|
Adult: 10-210 mmHg |
| Pediatric: 10-150 mmHg | |
| Newborn: 10-100 mmHg | |
|
Medium pressure range
|
Adult: 20-230 mmHg |
| Pediatric: 20-165 mmHg | |
| Newborn: 20-110 mmHg | |
| Precision | ± 6 mmHg (± 0.80 kpa) |
| Resolution | 1 mmHg |
| Overpressure protection | Double safety protection |
Additional Information
| Weight | 6 kg |
|---|---|
| Dimensions | 39,5 × 28 × 33 cm |
