ECG-Digital Electrocardiograph
An electrocardiograph of this type is characterized by having 12 channels and recording each of the 12 leads in a period of 2.5 seconds; they allow the visualization of the analysis in real time before printing the records, providing efficiency and improving the accuracy of the patient's diagnosis; this way avoids having to repeat the procedure, an electrocardiograph of 12 leads have advantages over other types, such as the possibility to send data to the ECG administration system without the need to perform the printing.
This 12-lead apparatus helps to diagnose whether there are abnormalities in the cardiac electrical conduction, through electrodes that transfer the impulses to an ECG monitor, the 12 leads instantly provide waves from 12 different angles or views of the heart, one electrode is placed in each of the four limbs and another six at specific locations in the chest, making a total of 10 electrodes in the patient's skin.
Types of ECG-Digital Electrocardiographs that the Medical Sector may need

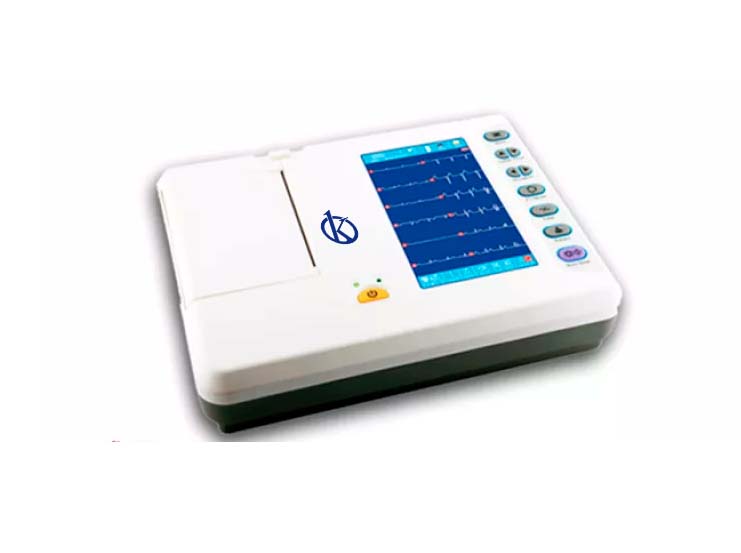

Holter dynamic ECGs YR05161
This new 6-channel YR ECG will bring you the power of advanced and easy-to-use technologies, multiple forms of data management, as well as accurate...

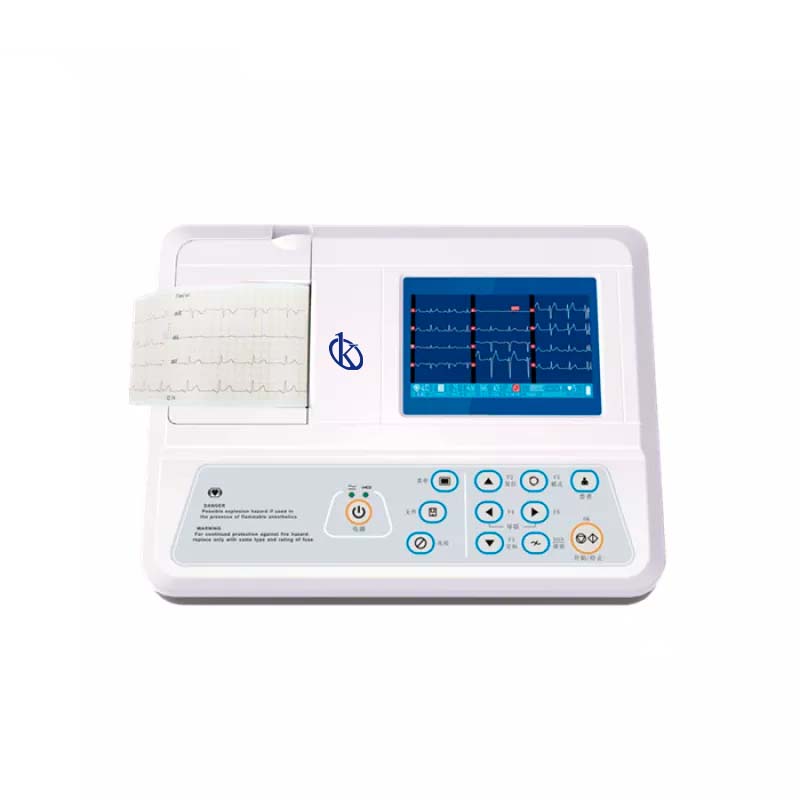

Interface 12-lead ECG USB/RS232 YR05160
The 12-channel ECG machine is an electrocardiograph that can collect 12-lead ECG signals ...

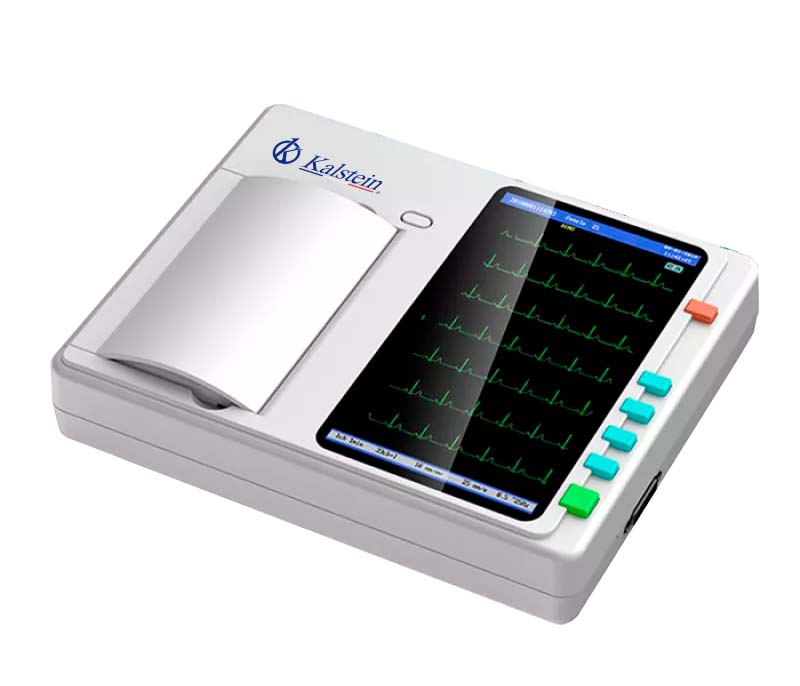

12-channel, 12-lead Ecg YR05159
The 12-channel ECG machine is an electrocardiograph that can collect 12-lead ECG signals simultaneously...
ECG touch screen electrocardiograph
As the name suggests, the 3-channel ECG machine prints 3 waveforms / channels at a time. On 3-channel ...
Our Best Selling ECG-Digital Electrocardiographs
The 12-channel ECG machine is an electrocardiograph that can collect 12-lead ECG signals simultaneously and print ECG waveforms with a thermal printing system. The electrocardiogram is commonly used to detect abnormal heart rhythms and to investigate the cause of chest pains. An electrocardiogram records the electrical activity of the heart. The heart produces small electrical impulses that travel through the heart muscle to cause the heart to contract. These impulses can be detected by the ECG machine.
| Model | YR05161 |
| Guide | 12 standard conductors |
| Input dynamic range | ± 10Vpp |
| Patient current leak | <10μA |
| Calibration Voltage | 1mV ± 2% |
| Tension Tolerance | : ≥ ± 500mV |
| Time constant | ≥3.2s |
| Frequency response | 0.05 ~ 160Hz (-3db) |
| Noise level | <15μVp-p |
| Input circuit current | 0.050.05 μA |
| Sensitivity | 2.5, 5.10, 20mm / mV |
| Interchannel interference | ≤0.5mm |
| Paper speed | 6.25,12.5, 25.50mm / s (± 3%) |
| Patient current leak | <10μA |
| AC filter | 50Hz / 60Hz |
| EMG filters | 25Hz / 45Hz |
| Anti-drift filter | 0.15 Hz (adaptive) |
| CMMR | ≥120dB (with AC filter) |
| Sensitivity Valve | ≤20μV |
| Input impedance | ≥50MΩ |
| Work Modes | MAN, AUTO, ANALYSIS modes |
| Acquisition of Potential Customers | 12 bits / 1000 Hz (synchronously 12 leads) |
| Input Circuit | floating; protection circuit against defibrillator effect |
| Screen | 7 inch LCD |
ECG-Digital Electrocardiographs Model Catalog on Sale
Guides to becoming an expert in Electrocardiograph ECG-Digital
What are the criteria for selecting your ideal Electrocardiograph?
Electrocardiographs are vital medical equipment to provide good health services, so it is an indispensable...
Differences between a mono channel and multichannel Electrocardiograph?
The electrocardiograph is a medical team in charge of performing tests called electrocardiogram (ECD), and detect the...
Pathologies that are detected with an Electrocardiograph - Medical Sector
The objective of the electrocardiograph is to search for any pathology in the heart and the effects of treatments .
How is an ECG interpreted?
It is called ECG as an electrocardiogram, if it is an evaluation that is done to know the electrical activity of the heart, are performed in the emergency and internal medicine units, consists in the placement of electrodes in different...

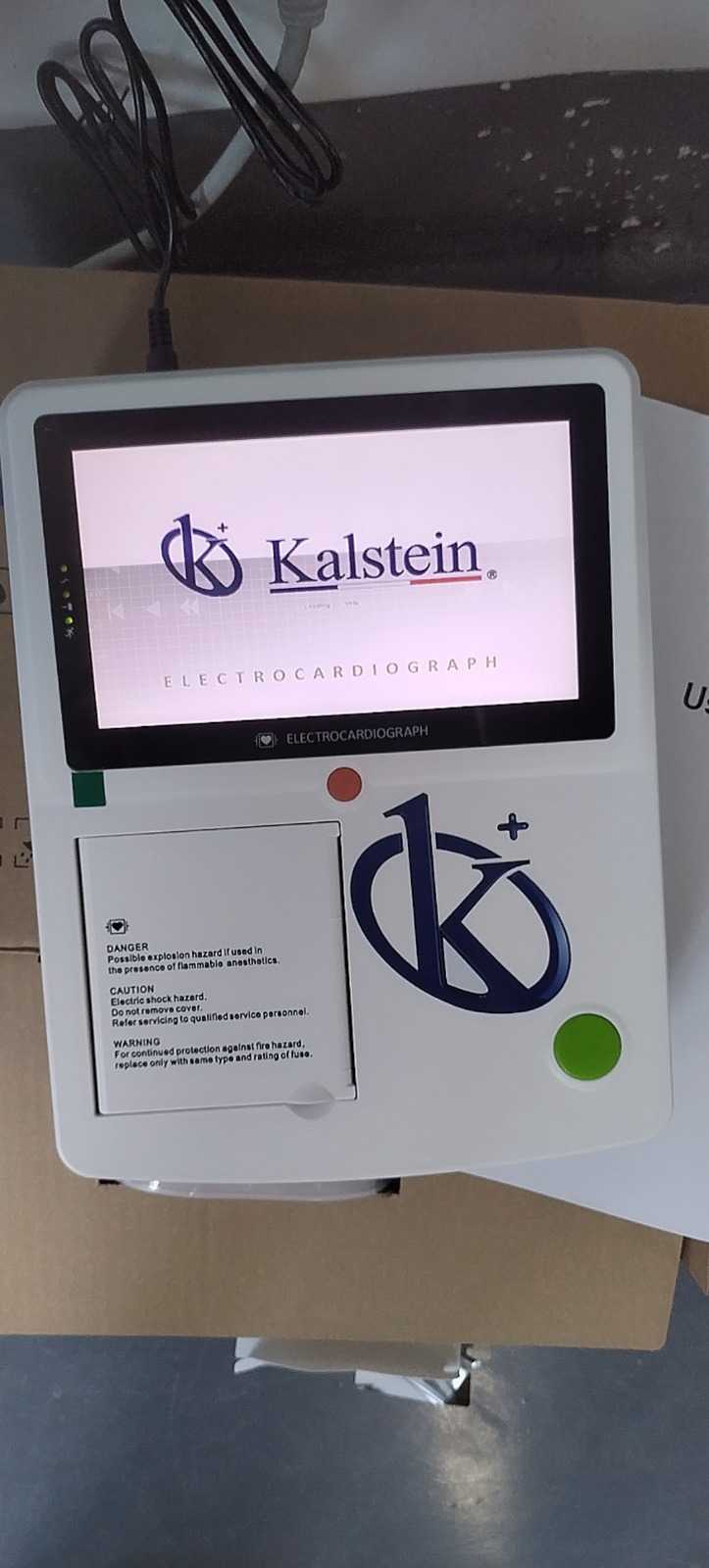

Videos of Electrocardiograph ECG-Digital in operation
In this section you can find, our ECG-Digital Electrocardiograph in operation, packaged, receiving service, etc.
Electrocardiograph ECG-Digital working
Electrocardiographs are essential medical equipment in the health sector, so it is common to find them in the different medical centers that exist. Their work is essential in the diagnosis of pathologies such as heart disease, arrhythmias and any type of abnormality of the heart or its chambers.
The function of this medical team is based on the installation of a series of electrodes on the surface of the patient's skin at the level of the region of the chest and extremities. The electrode on the skin is connected to another electrode through the electrocardiograph, a galvanometer measures the current that passes through the apparatus and is transmitted directly to the inscriptor to record waves and complexes that reflect the electrical activity of the heart.
