Heating Mantle / (Stirrer)
One of the key factors in ensuring that the heating equipment is used safely is the correct temperature setting. It is recommended to set the temperature to the minimum level before adding the reagent to the heating equipment. It is important to observe the behavior of the heating material to ensure that overheating does not occur.
One of the most common uses of laboratory heating mantles is for digestion. In addition to protecting the user from the hot material, the blankets also protect the heating equipment. Although the equipment is heated by the heating mantles, heating stands can also be mounted to prevent the materials from reacting with the heating devices.
Types of Heating Mantle / (Stirrer) a Laboratory may need
Heating Mantle YR05021 // YR05036
YR heating mantle are the most widely used heating mantle in laboratories,Once shaping shell is made of cold rolled steel...
Heating Mantle YR05055 // YR05058
Large heating area, heating uniform and heating fast, and the maximum temperature can be 380°C,Big LCD display...
Heating Mantle YR05039 // YR05048
Once shaping shell is made of cold rolled steel sheet with surface spraying treatment,Precise PID Temperature control ...
Multi Heating Mantle YR05049 // YR05054
Independ and separate temperature control at each different condition,Inner heating element consists soft glass fiber ...
Our Best Selling Heating Mantle / (Stirrer)

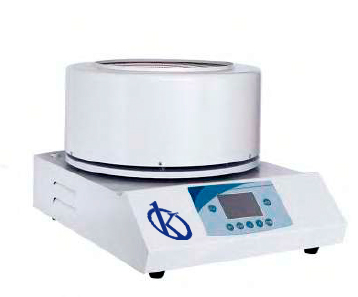

- Large heating area, heating uniform and heating fast, and the maximum temperature can be 380°C
- Big LCD display, can show speed, temperature and timer together
- Adopt brushless DC motor, have stable performance, low noise, long service life and have no sparkThe sheel is high-temperature resistan, anti-corrosion and has good insulation property
Model | YR05055 | YR05056 | YR05057 | YR05058 |
Capacity | 1Lts | 2Lts | 5Lts | 10Lts |
Power Requirements | 110 / 220V, 15A,50/60 Hz | 110 / 220V, 20A,50/60 Hz | ||
Speed Range | 100 – 2500 r/min | |||
Motor Power | 40W, DC 14V | |||
Temperature Range | RT – 380°C | |||
Heating Power | 180 – 2 200W | |||
Temperature Accuracy | ±1°C | |||
Insulation Max Temperature Resistance | 450°C | |||
Temperature Control Type | LCD Display with PID Control | |||
Timer | 0 – 9 999 minutes | |||
Dimensions / mm | 330 x 254 x 228 | 432 x 280 x 228 | 432 x 305 x 254 | 508 x 356 x 305 |
Weight / Kg | 3.2 | 3.2 | 5 | 8.2 |
Catalog of models of Heating Mantle / (Stirrer)
Guides to becoming an expert in Heating Mantle / (Stirrer)
Innovation: Uses and Applications of Heating Blankets
Heating blankets are scientifically useful devices, specifically designed to provide a controlled heat source in a variety...
Boosting Laboratory Efficiency with Heating Blankets
Amid the sophistication of modern laboratories, heating blankets have become indispensable tools. These devices, specially ...
Heating Blankets: An Essential Tool for Laboratory Solutions
In the ever-evolving scientific world, heating blankets have become an indispensable tool in a variety of fields, from...
The Emerging Use of Heating Blankets for Biology Laboratory Solutions
Heating blankets are revolutionary devices that are essential for providing uniform and constant heat to different solutions in biology laboratories. These devices are crucial for stimulating and accelerating various biological reactions, including ...
Videos of Heating Mantle / (Stirrer)
In this section you can find, our Heating Blocks (Agitators) in operation, packaged, receiving service, etc..
Heating beds (Shakers) in operation
Amid the sophistication of modern laboratories, heating blankets have become indispensable tools. These devices, specially designed to provide a controlled heat source, are critical in a variety of laboratory applications. They ensure precise and stable temperature control, improving the effectiveness and reliability of experiments and processes in numerous fields, from chemistry and biology to physics and medicine.
Heating mantles represent a significant advance in laboratory efficiency. With their ability to deliver heat in a controlled and uniform manner, coupled with their safety and energy efficiency, they have become an indispensable tool in any contemporary laboratory.
Frequently Asked Questions about Heating Mantle / (Stirrer)
How to know the prices of Heating Mantle / (Stirrer)?
To know the price of the Heating Blocks (Agitators) we invite you to send us an email with your request through the contact form.
What are the delivery times of the Heating Mantle / (Stirrer)?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to make a purchase of Heating Mantle / (Stirrer)?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
