Climate Chambers
Crop chambers are peculiar units, capable of growing plants, plants, seeds, small living organisms such as insects, bacterial cultures, food, product quality tests and other uses of experiments of constant light and temperature, allowing from the inside, adjust climate and humidity measures. However, in addition to standard climate cameras, crop chambers are equipped with a lighting system that simulates the effect of sun exposure.
In this sense, the chamber adjusts to the propagation and growth of fertile crops, as a laboratory instrument, built specifically for the study of plant development. As well, they are ideal environment test units for biology, medicine, agriculture and livestock, forestry, research departments in environmental sciences.
Types of Laboratory Climate Chambers a Laboratory May Need
Plant Growth Chamber
Through parameters based on climate control, temperature, lighting, humidity monitoring, etc., the development of biological functions directed towards the growth of the samples to be studied is achieved. Therefore, the culture chamber, leads to simulate the normal or optimal state in which the treated product would be, so that the need for development of the species is met in a controlled way.
For this reason, each sample requires a specific temperature, which varies according to the product. Room temperature control is required, up to 50 degrees Celsius, which is sufficient for growth experiments.
Artificial Climate Chamber
The climatic chamber is a unit able to build the will of stable situations of temperature and relative humidity, to provide controlled climatic states, in order to have a reliable measurement pattern in the measuring instrument. It is made by an airtight structure, able to provide pressures between the inside and the outside, its main components being an access gate, means to humidify and condition the air inside the chamber, sensors and temperature controllers.
Within the commercial line, they are considered as a standard equipment to evaluate and measure the preservation of the samples, mostly used to store pharmaceutical products, veterinary, agri-food, biotechnological, biological, chemical, materials and others, under constant conditions of temperature and controlled humidity.
In Kalstein you can find the Weather Chambers ideal for your Lab

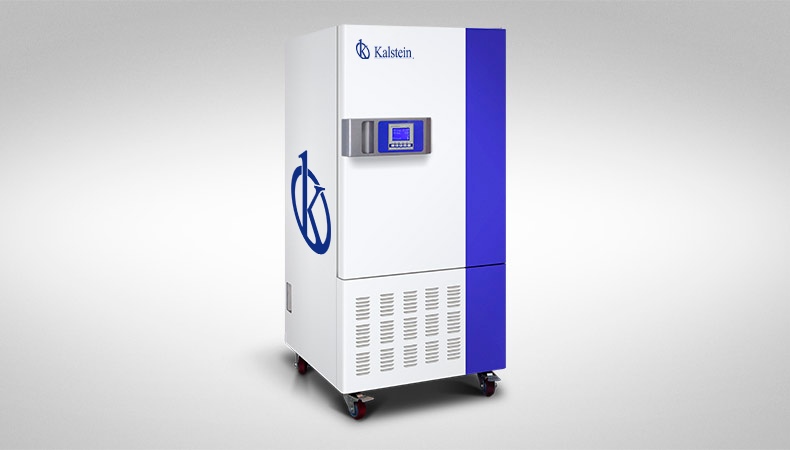

Drug Stability Test Chamber YR05350 // YR05352
Mainly used in the pharmaceutical industry, medicine, biotechnology, food industry and other industries...

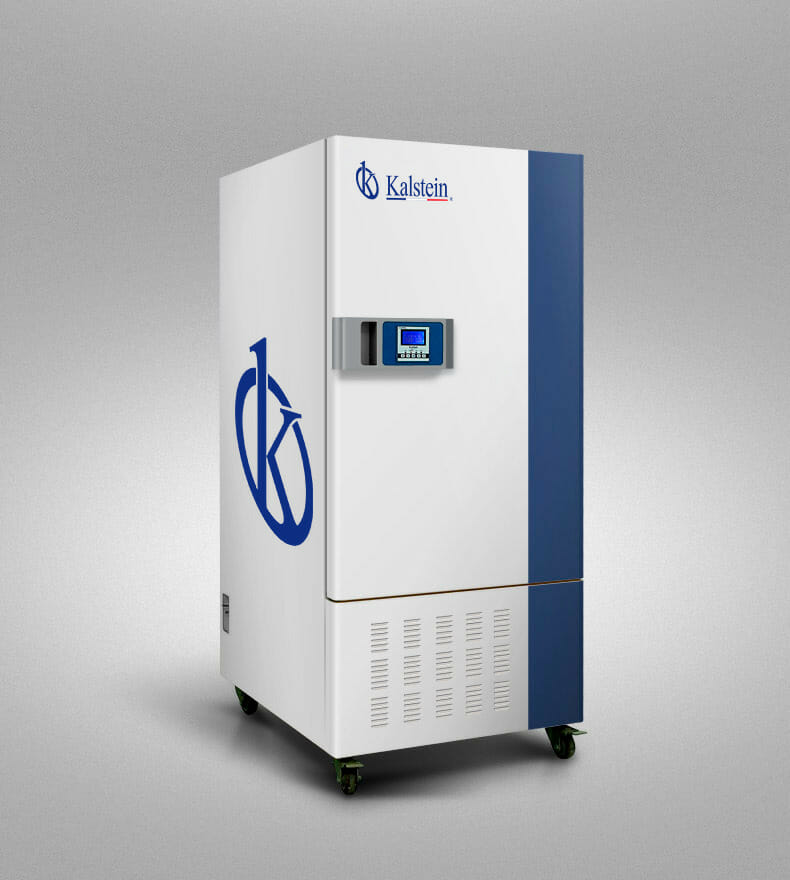

Constant Climate Chamber YR05334 // YR05339
LED large screen display working status at any time monitoring; adaptive control temperature constant; original imported...
Environmental Chamber YR05340 // YR05346-1
The Environmental chamber is produced with imported parts with excellent performance, beautiful appearance...

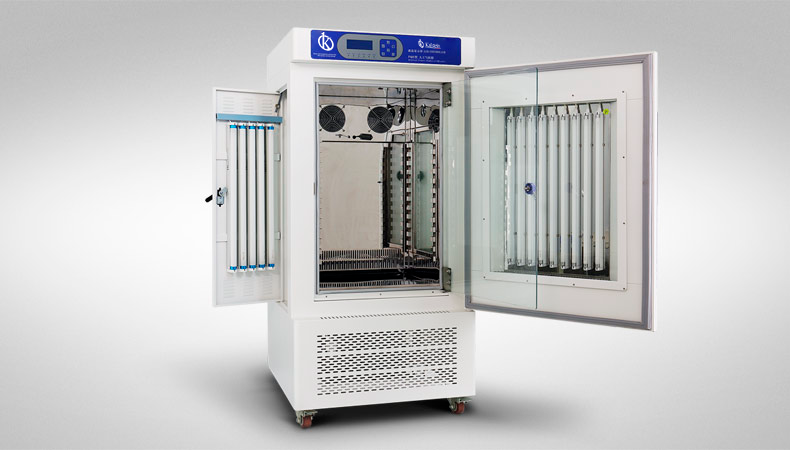

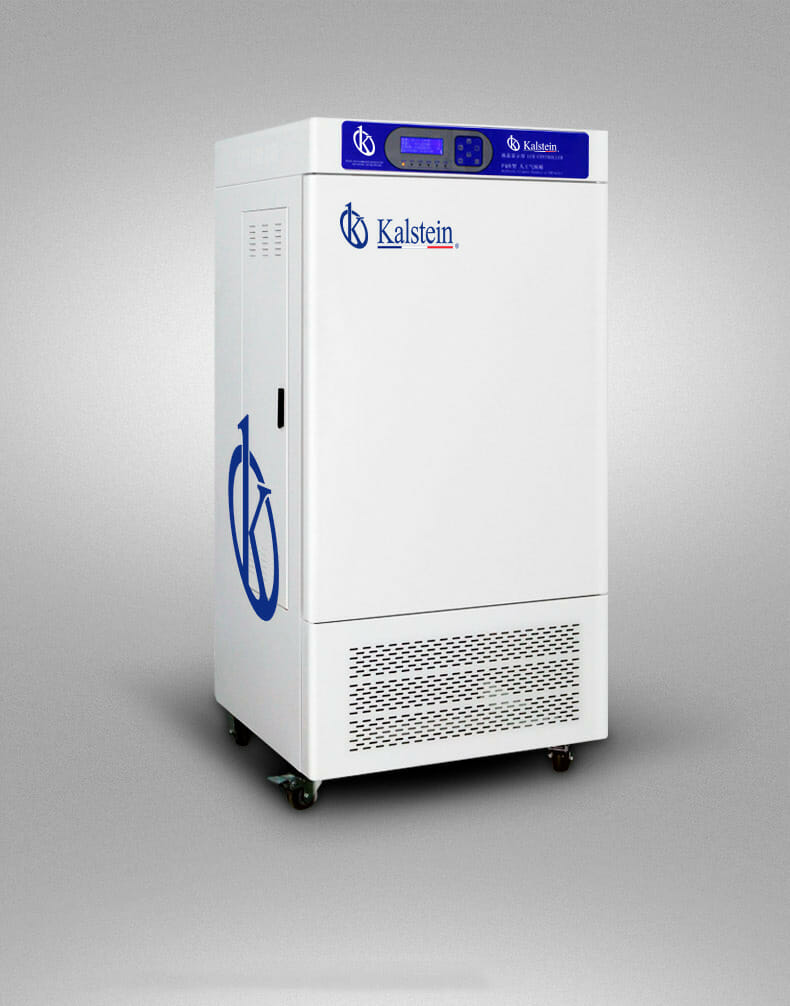

Illumination (Ray radiation) Incubator YR05331 // YR05333
Balanced refrigeration, automatic defrost, environmental protection without fluorineR134 refrigerant, LCD display...
Our Best Selling Weather Cameras
LED large screen display working status at any time monitoring; adaptive control temperature constant; original imported temperature sensor to reduce the impact of temperature; high efficient isolation technology to ensure the consistency of indoor and outdoor; high security; CE certification.
Stimulate various climatic conditions, especially used in samples tests, shelf life tests, long-term experiments and cultivation of plants, seeds and microorganisms.
Suitable for scientific research, pharmaceutical, foodstuff, materials science, cosmetics, tobacco, microbe, chemical industry, electronics and other fields
YR05334 | YR05335 | YR05336 | YR05337 | YR05338 | YR05339 | |
Convection Mode | Forced-convection | Forced-convection | ||||
Control mode | 30 Programmable PID Control System | 30 Programmable PID Control System | ||||
Sterilization function | — | — | ||||
Temperature range (℃) | 0~60℃ | 0~60℃ | ||||
Humidity range | 40~95%RH | 40~95%RH | ||||
Temp. display resolution(℃) | 0.1 | 0.1 | ||||
Temp. fluctuation(℃)(10-40℃) | ±0.5 | ±0.5 | ||||
Temp. spatial deviation(℃)(10-40℃) | ±1 | ±1.5 | ±1 | ±1.5 | ||
Humidity fluctuation(RH) | ±2% | ±2% | ||||
Timing range | 0~99Hour ,Or 0~9999min | 0~99Hour ,Or 0~9999min | ||||
Running environment | environment temp.10-30;relative humidity below 70% | environment temp.10-30;relative humidity below 70% | ||||
Heat insulator | imported environmental protection material | imported environmental protection material | ||||
External dimension (mm)(H×W×D) | 1410×650×680 | 1730×650×740 | 1700×745×930 | 1410×650×680 | 1730×650×740 | 1700×745×930 |
Dimension of inner chamber (mm) | 757×508×389 | 1088×508×449 | 1052×601×639 | 757×508×389 | 1088×508×449 | 1052×601×639 |
Volume of inner chamber (L) (H×W×D) | 150 | 250 | 400 | 150 | 250 | 400 |
Material of internal surface | SUS304 Interior steel materials | SUS304 Interior steel materials | ||||
Shelves | 3 | 4 | 4 | 3 | 4 | 4 |
Rated power(W) | 1080 | 1100 | 1350 | 1080 | 1100 | 1350 |
Input voltage | AC220V/50Hz | AC220V/50Hz | ||||
Net weight (KG) | 107.5 | 136 | 158.5 | 107.5 | 136 | 158.5 |
Gross weight (KG) | 133 | 162.5 | 188 | 133 | 162.5 | 188 |
Package size(mm) | 1605×760×830 | 1935×760×890 | 1907×815×1090 | 1605×760×830 | 1935×760×890 | 1907×815×1090 |
Additional Features | SUS304 stainless steel cavity / Standard tray num. 3 / 0°C~65°C | SUS304 stainless steel cavity / Standard tray num. 3 / 0°C~65°C
with UV sterilization function |
Catalog of Climatic Chambers models on offer
-
Strong Illumination Stability Test Chamber YR05353 // YR05353-2
Select options -
Artificial Climate Incubator YR05328 // YR05330
Select options -
Drug Stability Test Chamber YR05350 // YR05352
Select options -
Environmental Chamber YR05340 // YR05346-1
Select options -
Climate Simulation Chamber YR05347 // YR05349
Select options -

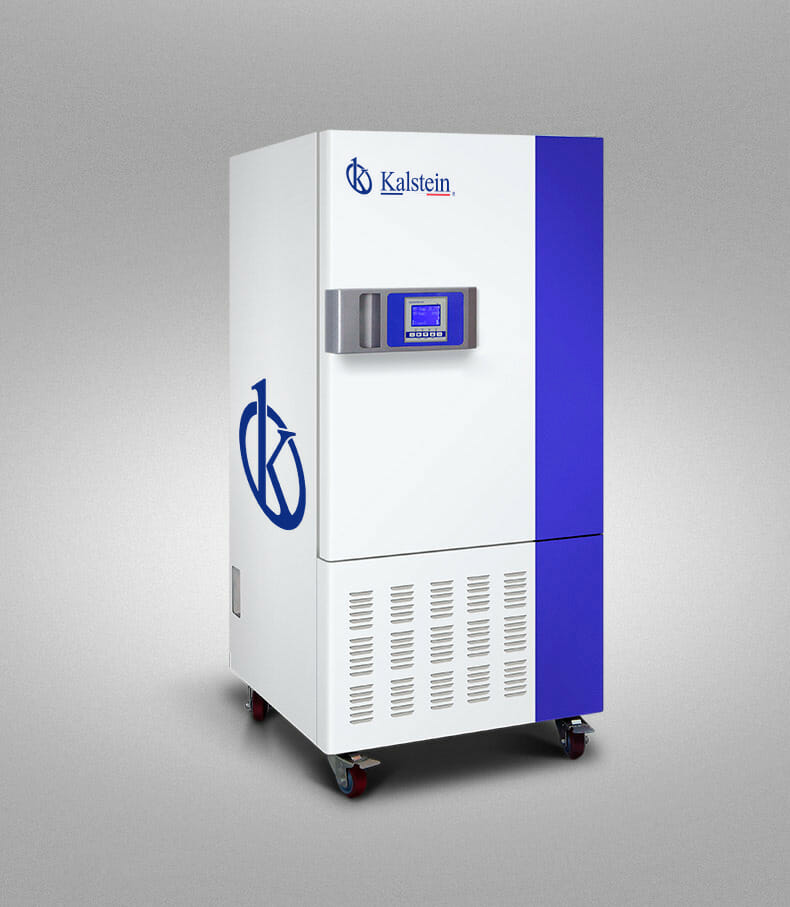

Comprehensive Drug Stability Test Chamber YR05354 // YR05356
Select options -
Constant Climate Chamber YR05334 // YR05339
Select options -

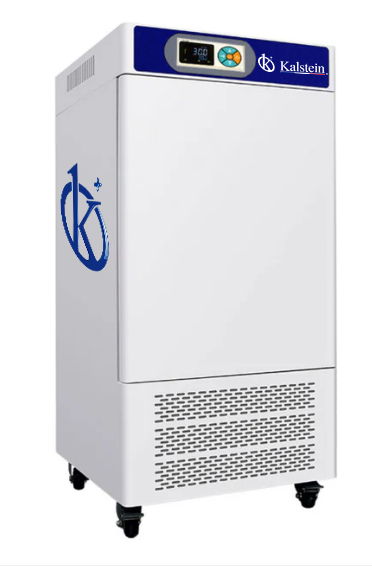

Humidity Chamber YR05802 // YR05807
Select options
Guides to becoming an expert in Climate Chambers
What are air conditioning Chambers?
The air conditioning chambers are units that artificially offer controlled environments necessary to perform tests...
What is a Walk-in Climate Camera? - Laboratory
A controlled climate chamber is a space where different environmental conditions are faked to determine the behavior of the material to...
How many types Of Climate Chambers are There?
The climatic chamber is a unit able to build the will of stable situations of temperature and relative humidity, to provide controlled climatic...
Parameters Controlled in a Climate Chamber?
The climatic chamber is a fundamental laboratory instrument to perform a wide range of climatic tests on materials. However, it is very important...
Frequently Asked Questions about Climatic Chambers
How to know the prices of the Weather Chambers?
To know the price of the Climatic Chambers we invite you to send us an email with your request through the contact form.
What are the delivery times of the Climatic Chambers?
The delivery time of your Kalstein product will depend on the following:
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen may be either air or sea.
- Equipment in stock:
– Delivery Time (Air): 15-30 days.
– Delivery Time (Maritime): 45-60 days.
- Equipment not in stock:
–Delivery Time (Air): 30-60 days.
– Delivery Time (Maritime): 60-90 days.
How to make a purchase of the Climatic Chambers?
You can purchase through:
- By email: s[email protected]
- By phone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
At Kalstein, we provide our customers with induction and technical support through new online methods. You can visit our induction videos, technical assistance and guidance provided by a Kalstein team through our YouTube channel (Kalstein English). HERE
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
