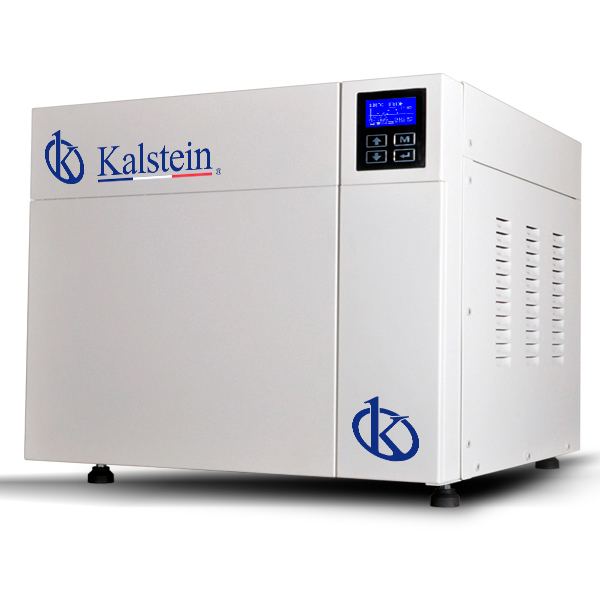

8 liter, 12 liter, 18 liter and 23 liter tabletop autoclaves with class B pre-vacuum, complies with the European standard EN13060. These autoclaves require minimal space, being an ideal solution for small businesses such as tattoo, podiatric consultations, beauty salons, veterinary medicine and laboratories.
Order Code | YR03385B | YR03385C |
Chamber Dimension | Ø319×417 mm | Ø319×617 mm |
Chamber Volume | 29 L | 45 L |
Number of Trays | 3 | 3 |
Material of Trays | Stainless steel | Stainless steel |
Size of Trays | 240×340 mm | 240×540 mm |
Voltage, Freq. | 220/110V, 50/60Hz | 220/110V, 50/60Hz |
Power | 2300 w | 3800 w |
Overall Dimension (WxHxD) | 640x640x560 mm | 840x640x560 mm |
Weight | 95 kgs | 115 kgs |
Program | Temp. [·C] | Pressure [Mpa] | Sterilization time [min.] |
QUICK | 134 | 210 | 4 |
WRAPPED | 134 | 210 | 10 |
121 | 110 | 30 | |
PRION | 134 | 210 | 18 |
DRY | – | – | – |
B&D TEST | 134 | 210 | 3.5 |
HELIX TEST | 134 | 210 | 3.5 |
VACUUM TEST | – | – | – |
Weight | N/A |
---|---|
Dimensions | N/A |
Model | YR03385B, YR03385C |
