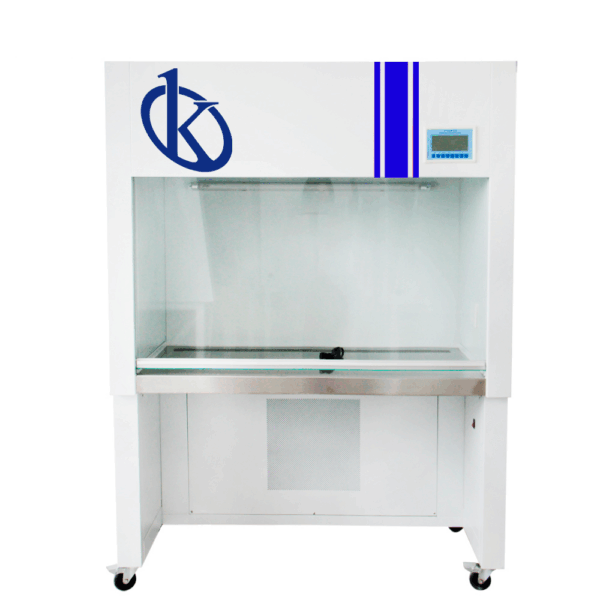

Horizontal Air Supply Clean Bench YR05733

ManufacturerKalstein

Product Description

This is a Kind of new type horizontal unidirectional clean bench widely used in electron, national defense, precise instrument and apparatus, pharmacy, chemical experiment and so on

Main Characteristics
  • Adopting arbitrary positioning sliding door system
  • The shell is welded by cold-rolled plates. the surface is electrostatically strayed, and the work surface is SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean
  • The lighting and sterilization systems are interlocked safely, and have the timing function of the ultraviolet lamp
  • Digital display LCD control Interface, more user-friendly design
  • Equipped with a HEPA filter and a primary filter for preliminary filtration, which can effectively extend the service life og the high-efficiency filter
Technical Specifications
Model  YR05733
Air Supply Vertical Air Supply
Cleanliness level Class 100@≥0.5μM (US Federal 209E)
Number of colonies ≤0.5pcs/dish·hour (Φ90mm culture plate)
Average Wind Speed 0.25~0.45m/s(Fast and slow)
Noise ≤62dB(A)
Vibration half peak ≤5μM(x、y、z direction)
Illuminance ≥300Lx
Power Supply AC single-phase 220V/50Hz
Max. Power

Consumption

800 W
Working area

W1×D1×H1

1 1 40 x 580 x 700
Overall dimension

W×D×H

1 300 x 760 x 1 760
Specification and quantity of high efficiency filter 1125 x 540 x 50 x 1
Specification and quantity of fluorescent lamp/ultraviolet lamp 20W x 1 / 36W x 1
Applicable Persons Double  person-single side

Additional Information

Weight 300 kg
Dimensions 139 × 86 × 186 cm
