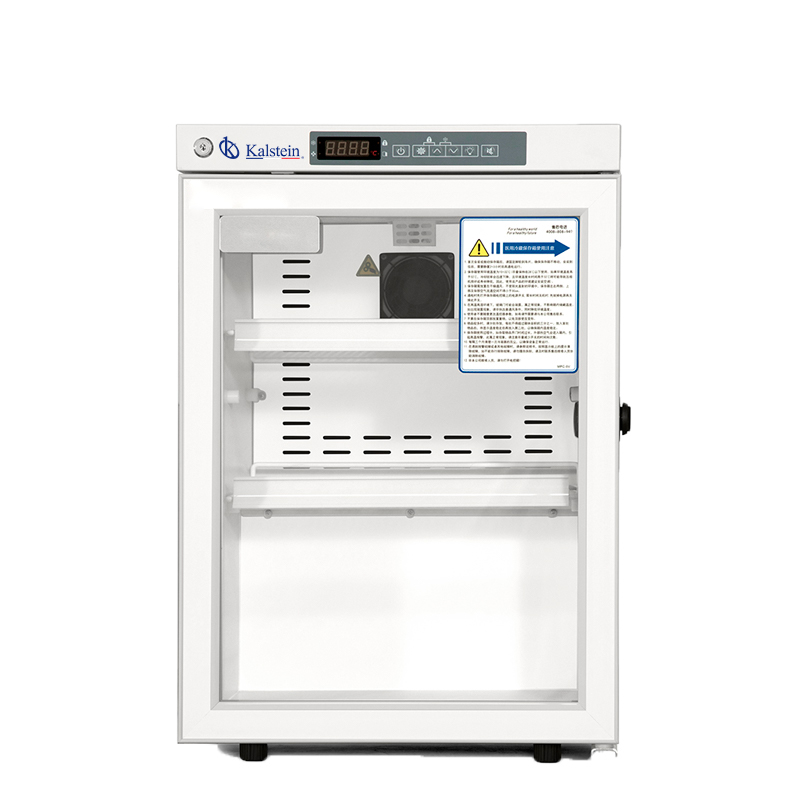

Medical Refrigerator YR05083
Manufacturer: Kalstein
Manufacturer: Kalstein
Product Description
The pharmacy refrigerators are suitable for installation in drug and vaccine stores, pharmaceutical companies, hospitals, epidemic prevention centers and clinics.
Hot tips
- Reliable control system
- Inside temperature 2~8°C
- Forced-air cooling system, Frost-free
- Service-free drainage system
- Wide voltage range, 187V~242V available
Features
- Adjustable temperature range 2-8ºC
- Microprocessor control, adjustable temperature
- LED digital display and increment at 0.1 °C.
- Temperature variation within ±3ºC
- Permanently lubricated cooling fan for safety and longevity
- High efficiency specialty compressor with known field reliability
- Forced- air cooling with optimized air distribution system designed
- To achieve maximum temperature uniformity and stability
- Optimized refrigeration system design for more effective cooling and speedy recovery
Safety Guarantee
- Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 8 hours without AC power
- Visual and audible alarm system:High/low temperature, thermostat failure alarm,power failure alarm, door ajar.
- Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.
- Keyboard lock, password protection to avoid set parameter randomly.
- Wide available voltage range: 187V~242V.
Humanized design
- Optimized space utilization design with multi – level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds
- Standard with LED Interior light
- Safety lock to prevent unauthorized access requirement of pharmaceutical products of various kinds
Regrigeration System
- Imported brand compressor work with CFC-Free environmental refrigerant.
- High density insulation foam layer with better heat preservation effect.
| Model | YR05083 | |
|
Specificaitons
|
Shelf/drawer | Shelves/2 |
| Cooling method | Forced Air Cooling System | |
| Defrost | Auto | |
| Refrigerant | R600a | |
| Power consumption(kWh/24h) | 0.84 | |
| Noise(db) | 50 | |
| Ambient temperature(ºC) | 10~32ºC | |
| Temperature range(ºC) | 2~8ºC | |
|
Cooling system
|
Compressor brand/QTY | China Brand/1 |
| Sensor Type | NTC | |
| Temperature controller | Microprocessor | |
| Display | Digital display | |
|
Power
|
Voltage/frequency(V/Hz) | 220/50Hz |
| Power(W) | 72W | |
| Current(A) | 0.59A | |
|
Material
|
Inside material | Color sprayed steel |
| Outside material | Color sprayed steel | |
| Insulation | PURF | |
|
Size
|
Capacity(L/cu.ft) | 60/2.11 |
| NT./GT.(kg) | 33/37 | |
| Exterior size(W*D*H)(mm) | 495*450*710 | |
| Interior size(W*D*H)(mm) | 410*315*560 | |
| Package size(W*D*H)(mm) | 558*510*760 | |
| CBM | 0.22 | |
| 20GP/40GP/40HQ | 132/276/276 | |
|
Alarm
|
High/low temperature | Y |
| Power failure | Y | |
| Thermostat failure | Y | |
| Backup battery failure alarm | / | |
| Condenser fault alarm | / | |
| Ambient Temperatures | / | |
| Voltage abnormality alarm | / | |
| Door ajar | Y | |
| System abnormal alarm | / | |
| Power failure backup system(alarm) | 8h | |
|
Accessories
|
Foot | Y |
| Castor | / | |
| Outer door/Type | 1/Glass/Low-E | |
| Door Lock | 1 | |
| Test hole QTY/diameter | 1/25mm | |
| Lamp | LED | |
| USB port | / | |
| Temperature recorder | Optional | |
| Remote alarm port | Y | |
| RS232/485 port | / | |
| Other | Certification | ISO9001/13485/14 001;CE |
