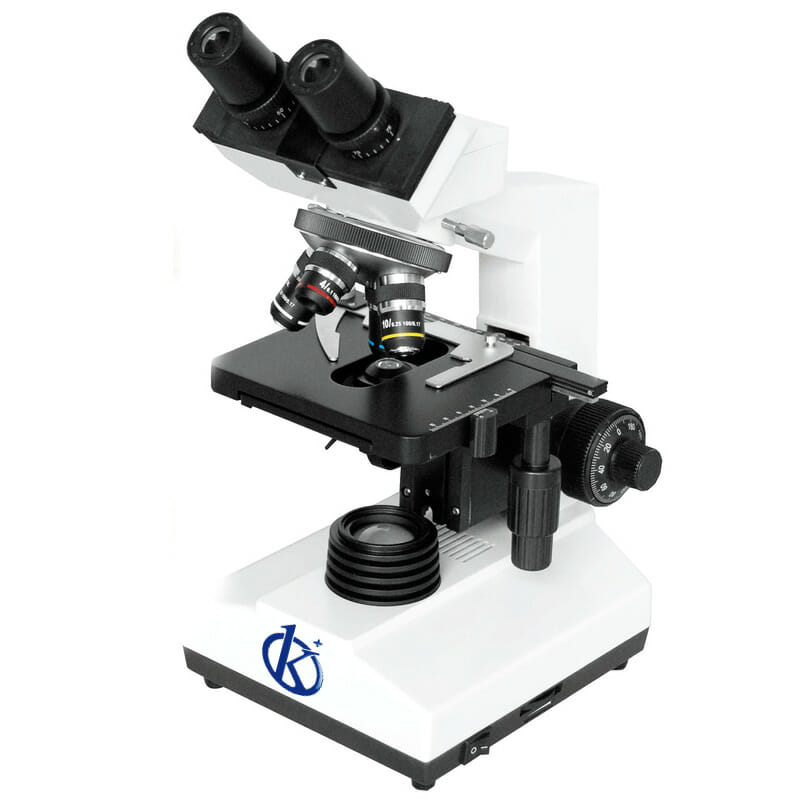

Phase contrast microscope YR05792-1

ManufacturerKalstein

Description

  • Classic 107BN biological microscope of phase contrast version
  • Phase contrast objective 40x, phase contrast condenser for 40x
  • 10x centering telescope, green filter included. PH 40x, 100x Optional
  • Large mechanical stage 140×140 mm, movable range 50×75 mm
  • High brightness 3W LED light source, adjustable brightness
Technical Specifications
Model YR05792-1
Phase contrast 40x phase-contrast objective, Abbe NA1.25 condenser, 40x phase-contrast diaphragm, 10x telescope, green filter
Type of power supply AC 110V-240V
Transmitting Light Halogen 6V20W or LED
Type of light source halogen
Capacitor NA Mirror
Capacitor type 1.25
Capacitor characteristics Abbe + Iris diaphragm
Focusing scale Filter holder
Focus range Iris diaphragm
Type of approach Rack and pinionↆ↑.
Focusing functions 0.002 mm
Working in motion stage 37.7 mm
Size of the working stage Coaxial Coarse and Fine
Type of work stage Adjustable tension
Target Safety stop locking ring
Type of target 50x75mm, Accuracy 0.1mm
Nozzle holes 140x140mm
Nozzle characteristics 2 mechanical layers
Ocular Achromatic 4x/0,10, 10x/0,25, 100xs/1,25 (oil)
Eyepiece diameter Achromatic
diopter of the head 4 holes
interpupillary head Exterior
Head rotation WF10x/18 mm, 2 pcs. WF16x/11 mm, 2 pcs.
Head tilt 23.2 mm
Head type Both tubes adjustable
Standard extension 55~75mm
Optical system 360° head rotation
Standard function 45°

Additional information

Weight 6,5 kg
Dimensions 35 × 30 × 53 cm
