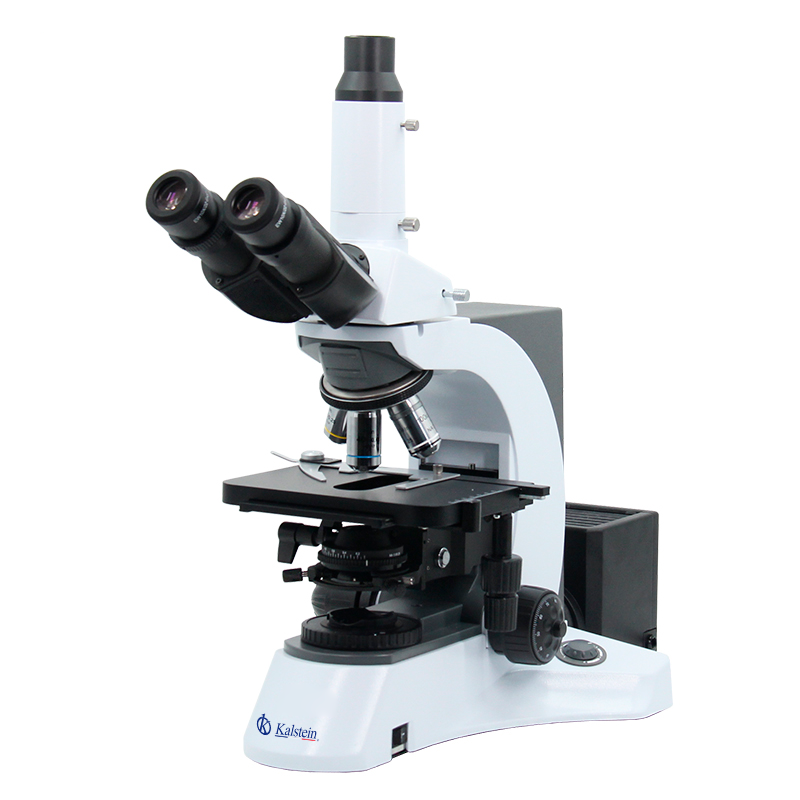

Product Description
- Seidentopf Trinocular Head, 30°. Inclined, 360° Rotatable, Interpupillary 48-75mm, Left Eyepiece Tube Diopter Adjustable
- Backward Quintuple Nosepiece, with slide slot
- Infinity Plan Achromatic Objective 4x,10x,40x,100x
- Double Layer Mechanical Stage, 185x142mm, Moving Range 55*75mm
- Swing Out Condenser N.A.0.9/0.25
- Halogen Lamp 6V30W, External Kohler Illumination, with asperical collector, brightness adjustable FUSE Protection circuit, replaceable
- Coaxial coarse & fine adjustment, focusing range 24mm, fine division 0.001mm, coarse stroke 37.7mm, with lock
Technical Specifications
| Model | YR0231 | |
| Optical System | Infinity Plan Optical System | |
| Function | Bright Field, Optional Dark Field, Polarizing, Phase Contrast, Fluorescent | |
| Head | Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary 48~75mm, Left Eyepiece Tube Diopter Adjustable | |
| Eyepiece | Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | |
| Nosepiece | Backward Quintuple Nosepiece, With Slide Slot | |
| Objective | Infinity Plan Achromatic Objective 4x,10x,40x,100x | |
| Focusing | Coaxial Coarse & Fine Adjustment, Focusing Range 24mm, Fine Division 0.001mm, Coarse Stroke 37.7mm | |
| Working Stage | Double Layer Mechanical Stage, 185*142mm, Moving Range 55*75mm | |
| Condenser | Swing Out Condenser N.A.0.9/0.25 | |
| Illumination | Halogen Lamp 6V30W, External Kohler Illumination, With Asperical Collector, Brightness Adjustable | |
| Filter | Green, Blue | |
| Adapter | Trinocular Adapter + Eyepiece Tube Photo Adapter Dia.23.2mm | |
| Optional Accessories | ||
| Head | Seidentopf Binocular Head, 30° Inclined, Interpupillary 48~75mm | YR0231-op1 |
| Upgrade to Tilting Binocular Head 5°~35° | YR0231-op2 | |
| Upgrade to Tilting Trinocular Head 5°~35° | YR0231-op3 | |
| Eyepiece | Extra Wide Field Eyepiece EW10x/20mm, Eyepiece Tube Dia.30mm | YR0231-op4 |
| Extra Wide Field Eyepiece EW20x/12mm, Eyepiece Tube Dia.30mm | YR0231-op5 | |
| Extra Wide Field Eyepiece EW15x/16mm, Eyepiece Tube Dia.30mm | YR0231-op6 | |
| Objective | Infinity Plan Achromatic Objective 20x | YR0231-op7 |
| Infinity Plan Achromatic Objective 60x | YR0231-op8 | |
| Nosepiece | Sextuple Nosepiece | YR0231-op9 |
| Illumination | Upgrade To Halogen Lamp 24V50W, For Better Dark View | YR0231-op10 |
| Upgrade To Halogen Lamp 24V100W, For Better Dark View | YR0231-op11 | |
| Adapter | 0.45x C-Mount | YR0231-op12 |
| Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry, | YR0231-op13 |
| Use With 40x Or Lower Magnification Objective | ||
| Dark Field Condenser, N.A. 1.25~1.36, Immersion, | YR0231-op14 | |
| Use With 100x Objective | ||
| Dark Field Objective, Infinity Plan 100x(Oil) | YR0231-op15 | |
| Dark Field Objective, Infinity Plan 100x(Oil), With Iris Diaphragm | YR0231-op16 | |
| Phase Contrast | Infinity Plan Turret Phase Contrast Set | YR0231-op16 |
| –Infinity Plan Turret Phase Contrast Condenser | ||
| –Infinity Plan Phase Contrast Objective 4x,10x,40x,100x | ||
| –Centering Telescope 10x | ||
| –Green Filter | ||
| Infinity Achromatic Turret Phase Contrast Set | YR0231-op17 | |
| –Infinity Achromatic Turret Phase Contrast Condenser | ||
| –Infinity Achromatic Phase Contrast Objective 4x,10x,40x,100x | ||
| –Centering Telescope 10x | ||
| –Green Filter | ||
| Flourescent | EPI-Fluorescent Kit, Upgrade to A16.1028 | YR0231-op18 |
| –Power Supplier 220V/110V Interchangeable, Digital Display | ||
| –100WHBO Ultra Hi-Voltage Spherical Mercury Lamp | ||
| –Barrier To Resist Ultraviolet Light | ||
| –Fluorescence Free Oil | ||
| –Excitation Filter B/G | ||
| EPI-Fluorescent Kit, Upgrade to A16.1028 | YR0231-op19 | |
| –Power Supplier 220V/110V Interchangeable, Digital Display | ||
| –100WHBO Ultra Hi-Voltage Spherical Mercury Lamp | ||
| –Barrier To Resist Ultraviolet Light | ||
| –Fluorescence Free Oil | ||
| –Excitation Filter B/G/V/U | ||
| EPI LED Fluorescent Kit, Upgrade To A16.1029 | YR0231-op20 | |
| EPI Light 3W LED 465~475nm, B Excite Filter BP460~490, | ||
| EPI Light 3W LED 525~530nm, G Excite Filter BP510~550 | YR0231-op21 | |
| Polarizing | Polarizing Attachment , Polarizer, Analyzer, Intergrate Device | YR0231-op22 |
Additional Information
| Weight | 14 kg |
|---|---|
| Dimensions | 43 × 38,4 × 60,6 cm |
