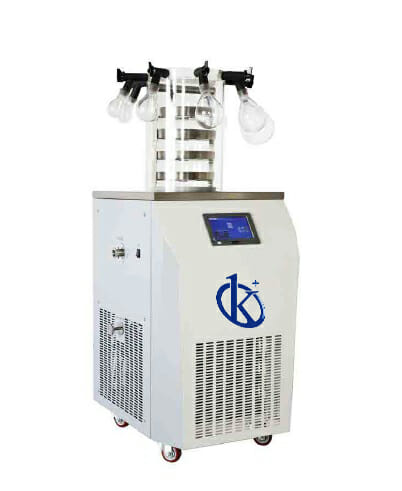

Vertical Electric Heating Laboratory Freeze Dryer YR05198 // YR05201

ManufacturerKalstein

Description

The Vertical Electric Heating Laboratory Freeze Dryer YR05198 // YR05201 is a top-tier, versatile freeze dryer, widely applicable in fields such as medicine, pharmaceuticals, biological research, chemistry, and food industry. It expertly maintains the integrity and biochemical properties of products by reducing them to a stable, dry state ideal for prolonged storage. With its shelf electric heating and a 7-inch touch screen for precise control, this laboratory freeze dryer offers advanced, user-friendly operations tailored for routine lyophilization tasks in laboratory settings.

Crafted with high-grade stainless steel, both its cold trap and operation table ensure long-lasting durability. The large cold trap opening with pre-freezing function and electric defrost capability optimizes efficiency and performance. Flexibility in vacuum unit usage (Pa, mBar, etc.) and a vacuum pump protection function with a temperature-activated start enhance its usability, making it a cutting-edge addition to any lab.

If you’re keen to enhance your laboratory’s lyophilization capabilities, the Vertical Electric Heating Laboratory Freeze Dryer YR05198 // YR05201 is your optimal choice. Reach out now to request a detailed quote through our Kalstein Plus platform to secure the best equipment for your needs.

Market Price

In the current market, the price range for a high-quality freeze dryer like the YR05198 // YR05201 usually falls between $11,200 and $12,000 USD. Such a range provides a competitive edge, given the robust features and advanced specifications offered by this model, ensuring excellent value for investment.

Frequently Asked Questions

Q: What is the freeze-drying process used for?
A: Freeze drying is primarily used for preserving perishable materials, making them easier to store long-term without compromising their biochemical characteristics.

Q: How do I ensure the freeze dryer works efficiently?
A: Regular maintenance is key. Ensure the cold trap is defrosted when necessary and that the vacuum pump settings are correctly configured to match the intended use.

Advantages and Disadvantages

Advantages:
– High precision control with a touch screen interface.
– Durable design with stainless steel components.
– Flexible vacuum unit operation with protective features.
– Broad temperature range allowing versatile applications.

Disadvantages:
– Higher initial investment compared to less advanced models.
– Requires experienced handling for optimal performance in specialized applications.

Field Use

This laboratory freeze dryer is indispensable in environments where precise and reliable preservation of biological, chemical, and medical samples is critical. It’s extensively used in research labs that require consistency and efficiency in sample preservation to ensure fidelity in results and storage. With its robust design, this freeze dryer performs exceptionally under demanding conditions, maintaining its reliability over extensive usage periods.

Recommendations

For optimal longevity and performance of your freeze dryer, it’s essential to follow a rigorous maintenance schedule. Regularly inspect and clean the stainless steel surfaces to prevent corrosion. Ensure the vacuum pump oil is changed as recommended by the manufacturer, and calibrate the touch screen controls periodically to maintain accuracy. If planning to operate in particularly cold environments, consider opting for the cold trap with optional lower temperature settings.

Features

  • Setting freeze-drying process
  • Controlling the heat rate with shelf electric heating
  • 7 Inch Touch Screen
  • Stainless steel cold trap and operating table
  • A large opening cold trap with pre-freezing function
  • Cold Trap Electric Defrost
  • Flexible switching of vacuum units (Pa, mBar, etc.)
  • Vacuum pump protection function with set the vacuum pump to start the cold trap temperature.

Technical Specifications

Model YR05198 YR05199 YR05200 YR05201
Freeze-dried area 0.18m²/0.27m² 0.09m² 0.18m²/0.27m² 0.09m²
Panel material (material thickness 10mm) 1.8L/2.7L 0.9L 1.8L/2.7L 0.9L
Material Tray Ф240mm
4/6 layers
Ф200mm
3 layers
Ф240mm
4/6 layers
Ф200mm
3 layers
Material plate spacing 70mm/50mm 70mm 70mm/50mm 70mm
Shelf temperature range -40 ~ +60°C
Cold trap temperature ≤ 60 ° C (no load), optional ≤ -80 ° C (no load)
Water catching capacity 6 kg/24h
Ultimate vacuum ≤ 5pa (no load)
Power 1800w
Host Weight 105 KG
Mainframe Dimensions 630×580×1455mm 630×580×1455mm 630×580×1455mm 630×580×1455mm

Additional information

Weight N/A
Dimensions N/A
Model

YR05198, YR05199, YR05200, YR05201
