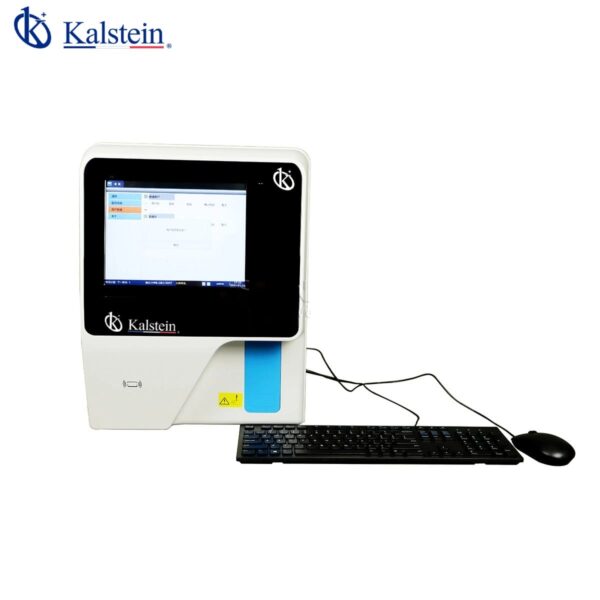

Veterinary Automatic Hematology Analyzer YR06171



Automated user-friendly interface integrates 10.4″ touch screen display, built-in soft keyboard, external barcode scanner and USB keyboard or mouse.

  • 31 parameters, 4 scatter diagrams and 3 histograms
  • Micro sample technology of only 11μL samples reduces animal pain greatly.
  • Highly integrated electrical & fluidic system and particular modular design to enhance performance.
  • Sensitive liquid position detection technology to achieve easy reagent management.
  • Independent operating system supports LlS and two-way transmission.
  • Reagent system with constant temperature management.
  • User permission management to avoid misoperation.
  • Anti-clog made by high voltage burning, flushing and soaking.
  • Alarm of abnormal sample alarm, reagent abnormal alarm, instrument failure alarm.
  • One-button automatic analysis and print in multiple report formats.
  • One-button troubleshooting, auto maintenance system and customized maintenance period.

Technical Specifications

Model YR06171
Category Hematology Analyzer
Gross weight (kg) 1
Scatter diagrams: 4
Histograms: 3
Performance: 60 samples per hour
Sample volume: ≤20μL
Testing mode: CBC+DIFF, CBC
Calibration: Automatic calibration, manual calibration
QC mode: L-J, X-B
Storage: 50,000 sample results including scatter diagrams and histograms
Weight: 26.5kg
Dimension: 364mm*498mm*431mm
Work environment: Temperature: 10-30℃, Humidity≤70%

Additional information

Weight 36 kg
Dimensions 66 × 62 × 62 cm
