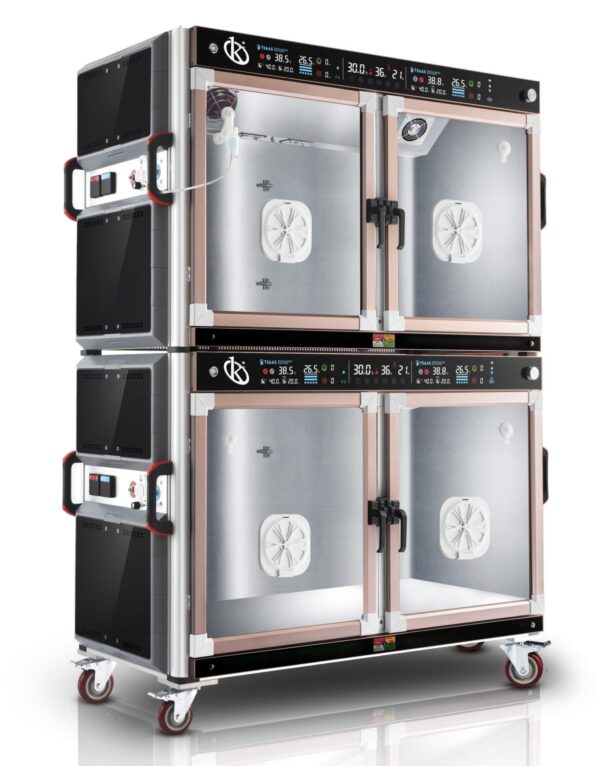

Veterinary ICU Unit YR06178

ManufacturerKalstein

Description

Animal ICU intensive care unit

Operating system: intelligent central control large touch screen

Auxiliary operating platform: mobile phone intelligent remote-control software, tablet mobile remote monitoring software, PC remote monitoring software

Temperature control adaptive adjustment technology: the equipment automatically tracks the animal body temperature and automatically adjusts the ICU temperature setting according to the animal body temperature rise and fall

Remote monitoring: Applicable to devices such as mobile phones, pads, mobile tablets, PCS, worldwide real-time monitoring, delay does not exceed 1min

Light source: medical inspection special cold light, lighting warm light

Alarm warning: temperature, humidity, oxygen concentration and other abnormal alarm prompts

Technical Specifications
Model YR06178
Number of space 4 rooms (can be combined into 2 rooms)
Dimensions 1380mm*723mm*1708mm
Chamber size 1184mm*570mm*720mm (single large cabin)
Cabin temperature control 18℃~43℃, accuracy ±0.5℃
Bilge temperature control 17℃~43℃, accuracy ±0.5℃
Humidity control 30%~90%
Oxygen concentration 21%~80%
Negative oxygen ion medical purification 7.2*106 PCS/CM3
Ultraviolet disinfection Wavelength 200 ~ 280 nm UVC ultraviolet efficient sterilization
External circulation system Fresh air system
Medical atomizer Maximum atomization volume ≥0.2ml/min, fog particle 0.5-2um, noise ≤40dB(A), atomization time set 1-10min
Medical care indicator Level 4 intelligent control, red light (critical care – special care), yellow light (postoperative care – primary care), white light (hospital observation – secondary care), green light (mild care – tertiary care)
Infrared therapy lamp Wavelength range 0.76-5um, peak wavelength 4um
Animal temperature measurement Refresh rate 5 seconds -1 minute, error ±0.2℃
Safety system Power failure safety protection
Maximum power consumption 1600W
Power supply AC 220V, 60Hz
Operating conditions Ambient humidity -10℃~40℃ (indoor)

Additional information

Weight 191 kg
Dimensions 159 × 100 × 108 cm
