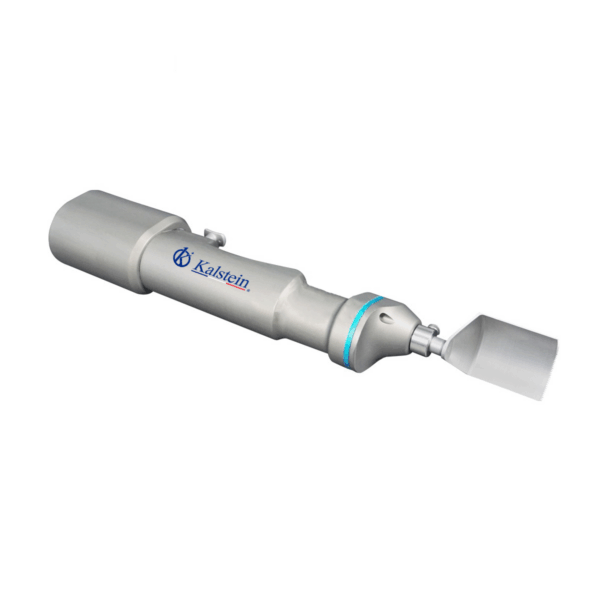

Veterinary TPLO Saw YR06128



TPLO surgery (Tibial-Plateau-Leveling Osteotomy) is performed on dogs to stabilize the stifle joint after ruptures of the cranial cruciate ligament.

  • High-strength stainless steel shell to ensure the intraoperative safety for dogs.
  • Blade thickness and a variety of common knee prosthesis to match with the template, forming an osteotomy is perfect fit prosthesis, it brings you more accurate and rapid surgical procedures.
  • Specially designed saw tooth ensures very small contact pressure to achieve accurate and neat osteotomy, so it greatly reduces the generated heating when cutting that possibly leads to the risk of osteonecrosis.
Technical Specifications
Model YR06128
Frequency 0-16000Hz
Swing angle 11.5°
5-minute temperature ≤25℃
Noise ≤75dB
Sterilization temperature ≤135℃
Operation voltage 12V
Battery type NI-MH Battery
Battery Voltage 9.6V~14.4V
Charging time 2 hours
Discharge time/1A ≥30min
Charger input voltage AC 100-240V, 50/60Hz
Charger output power 7.2V-16.8V

Additional information

Weight 5 kg
Dimensions 41 × 16 × 35 cm
