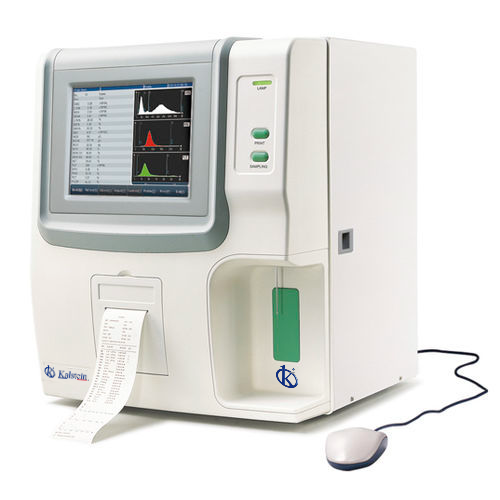

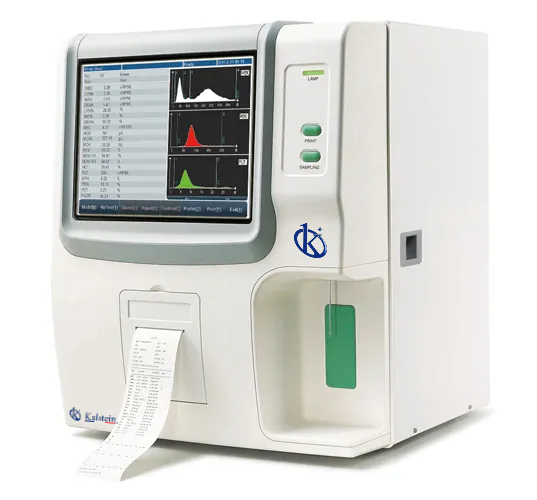

Auto Hematology Analyzer YR05122

Manufacturer: Kalstein



  •   3-part differentials of WBC, 23 parameters including 3 histograms
  •   60 samples/h
  •   10.4 inch LCD with touch screen
  •   Support English, Spanish, French, Ukrainian and Russian software
  •   Up to 50,000 results (including histograms)

Technical Specifications

Model: YR05122
Principle: Electrical resistance for counting WBC,RBC and PLT
Sample Volume: Prediluted:20uL;Whole Blood:9.8uL
Throughput: 60 samples per hour
Alarms: Error messages
Input/Output: RS-232,USB,LAN,keyboard and mouse interface
Printout: Thermal recorder
Operating Environment: Temperature:15℃-35℃;Humidity:≤80%
Power Requirement: a.c.100-240V,50-60±1Hz
Dimension: L×W×H(mm): 468×325×395
Weight: 16.5Kg

Additional information

Weight 22 kg
Dimensions 52 × 48 × 61 cm
