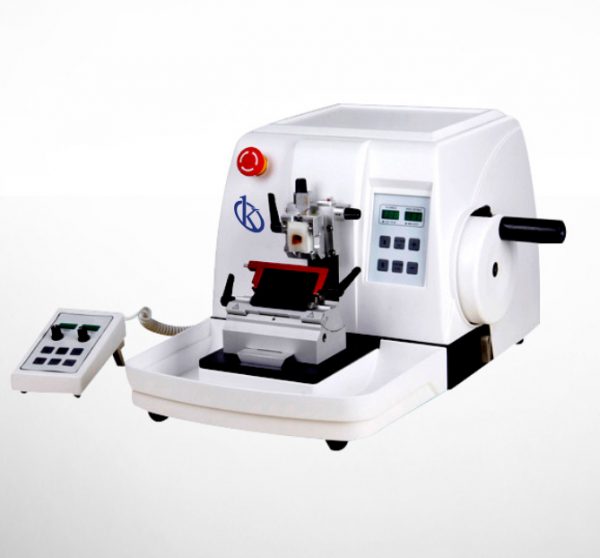

Automated microtome YR415-1

Manufacturer: Kalstein



Description

  • This machine uses a streamlined design, with advanced features, stable and reliable performance and ease of use;
  • The feeding system uses an intelligent control mechanism; enabling quick switching between manual or automated smart sectioning modes; automatic slicing speed is adjustable;
  • Advanced drive systems and multiple functions including sectioning, trimming, fast forward, fast backward, quick mode conversion including automatic retraction;
  • Incorporates an international advanced screw motion mechanism to ensure precision, thus achieving superior sectioning performance;
  • Pure-green digital display of slice thickness, trimming thickness, slice count and slice speed;
  • Trimming and slicing are operated under a control system, and can be switched easily. The automated slicing controller can be equipped at either the left or right side; when automated slicing controller is off, semi-auto slicing or trimming can still be performed;
  • Automatic sectioning speed is continuously adjustable
  • With safety and emergency braking systems, security alarm systems, driver overload protection and an auto-sleep protection system;
  • Features easy and fast switching between different specimen clamps (two options: paraffin block clamp and cassette clamp);
  • Hand-wheel balance is precisely adjusted and can be locked at any position to ensure safety of operation;
  • Blade holder can be laterally moved to avoid moving the blade with direct contact, thereby enabling use of the entire length of the blade. (Three different segments);
  • The red protection bar on the blade holder covers the whole length of blade to protect the user and the push bar enables easy changing of the blade;
  • Hand-wheel balance is precisely adjusted and can be locked at any position to ensure the safety and convenience of sectioning;
  • Large-volume waste tray is easy to remove, and items such as deposable blades can be stored on the top of the housing.
Model YR415-1
Type Rotary
Mode of use Automatic
Maximum Specimen Size 70 x 70 mm
Minimum Setting of Sectioning Thickness 0.25ฮผm
Horizontal Feed 28mm
Vertical Specimen Stroke 70mm
Specimen Holder Rotation At any angle within 360 degrees
Movement Range of the Base of Blade

Holder Base

0-60mm (front to back)
Movement Range of the Blade Press plate 0-23mm
Specimen Clamp Rotation At any angle within 360 degrees
Specimen Orientation XY โ€“ 8ยฐ
Maximum Specimen Size 70ร—70mm
Feed speed adjust 1500ฮผm/s ~ 3500ฮผm/s
Precision Error ยฑ1%
Working Voltage AC 220Vยฑ10% 50Hz (standard model); AC110Vยฑ10% 60Hz
Power 150W
Dimensions 580ร— 475ร— 340 mm (Wร—Dร—H)
Net Weight 41kg

Additional information

Weight 60 kg
Dimensions 68 × 57 × 47 cm
