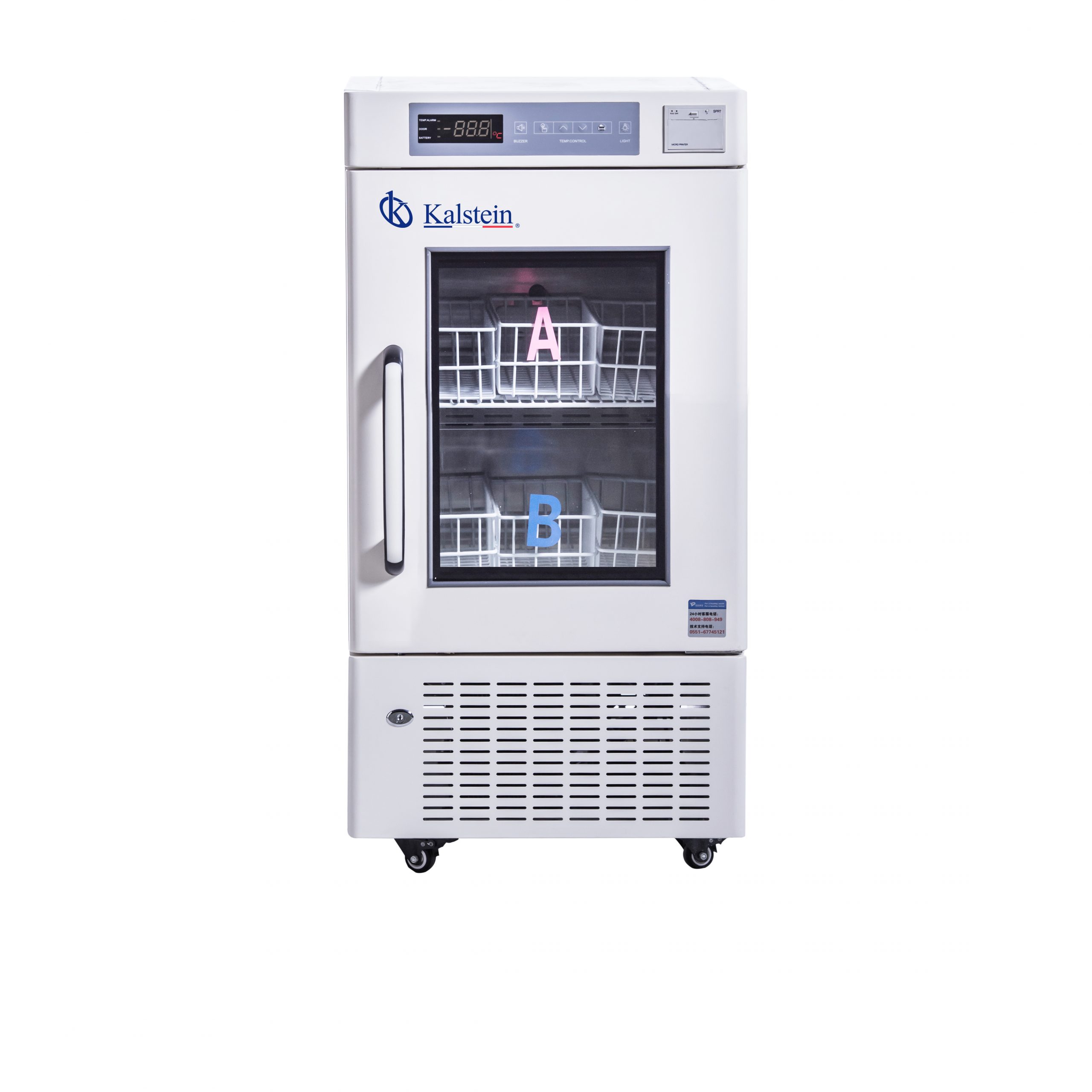

Blood Bank Refrigerator YR05091

Manufacturer: Kalstein

Product Description

YR05091,108L three layer toughened glass door with heater and 340 stainless steel inner chamber

Features
  • Accurate microprocessor controller to ensure consistent cabinet temperature 4±1°C.
  • Specially designed forced-air cooling system to ensure frost-free cabinet and good temperature uniformity.
  • Three layer toughened glass door with heater to avoid condensation.
  • 304 stainless steel inner chamber for friendly using and easy cleaning.
  • Wide available voltage range: 187V~242V
Security system
  • Safety door lock and controller setting password to prevent unauthorized access.
  • Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power.
  • Inner doors and auto on/off cooling fan to prevent cold air from leaking out when the door is opening.
  • Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar, low battery.
  • Power failure protection: turn on delay of the cooling system after power failure.
  • Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensor failed.
  • Temperature printer: print current inside temperature automatically per 10 minutes.
  • Temperature variation within ±1.5℃
Humanized design
  • 4 casters with stopper for easy moving and fixation.
  • 4 adjustable shelves and 12 blood baskets for easy using.
  • Special designed service-free drainage system ensure no water in the cabinet.
  • Standard 25mm test hole for easy connecting to temperature monitoring systems.
  • Automatic on/off LED light with manual switch on control panel.
Special
  • Large storage capacity: 66 X 450ml blood bags
  • Reliable control system: 4±1°C
  • Forced-air cooling system, frost-free
  • Glass door with heater, condensation-free
  • Wide voltage design: 187V~242V available
  • Build-in back-up battery: 8 hours power failure alarm
Performance
Temperature Range 4°C±1°C
Ambient Temperature 10~32°C
Controller Microprocessor
Display Digital Display
Electrical Data
Power Supply(V/Hz) 220/50~60; 115/60
Rated Power(W) 160
Electrical Current(A) 0.6
Power Consumption 1.95 kWh/24h
Dimensions
Capacity 108L
Interior Size(W*D*H) 432*462*478 mm
Exterior Size(W*D*H) 540*630*1030 mm
Package Size(W*D*H) 700*585*1200 mm
N.t./G.t.(approx) 74/95 kg
Loading Qty(20’/40’/40’H) 27/54/108
Blood bags(450ml) 66
Refrigeration System
Compressor 1
Refrigerant R134a
Cooling Type Forced-air cooling
Defrost Type Frost free
Alarm
High/Low Temperature Y
Sensor Error Y
Power Failure Y
Door ajar Y
Accessories
Caster 4
Lamp LED
Shelf 2
Test hole 1/25mm
Temperature printer 1
Temperature recorder Optional
USB Optional

#s3gt_translate_tooltip_mini { display: none !important; }

Additional Information

Weight 95 kg
Dimensions 69 × 58 × 120 cm
