Desktop Mechanical Heated Ultrasonic Cleaner YR05234 // YR05243

Manufacturer: Kalstein

Description

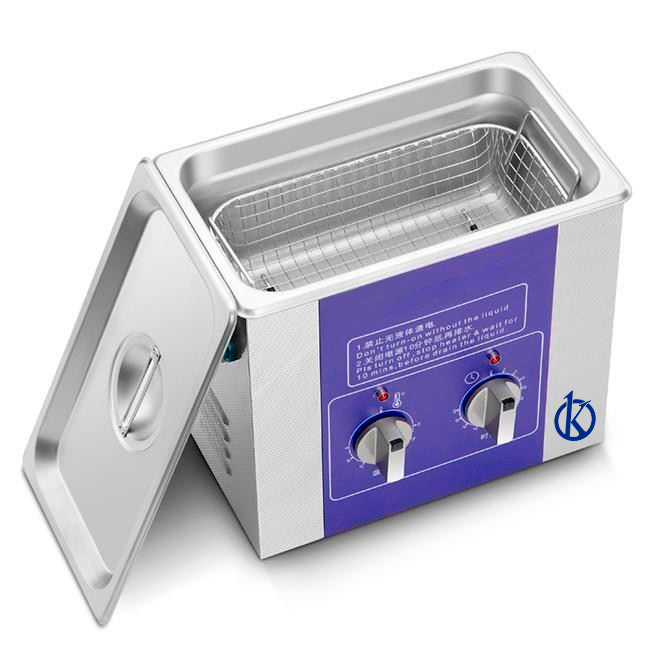

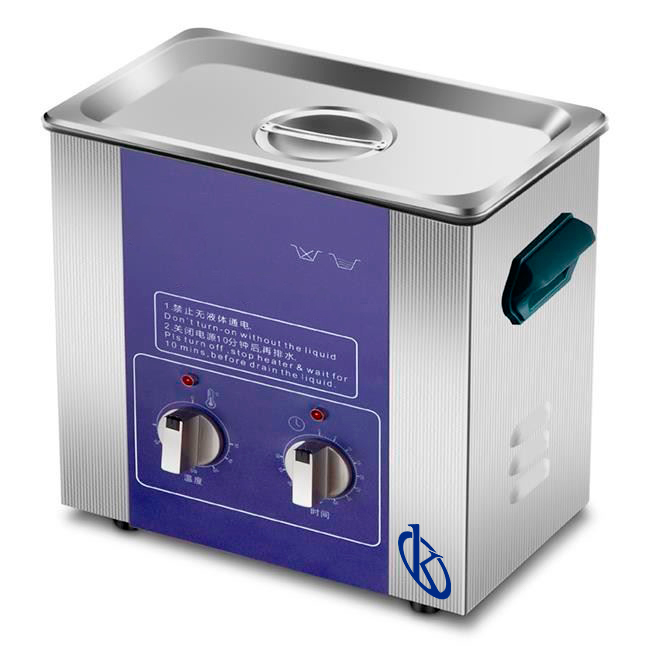

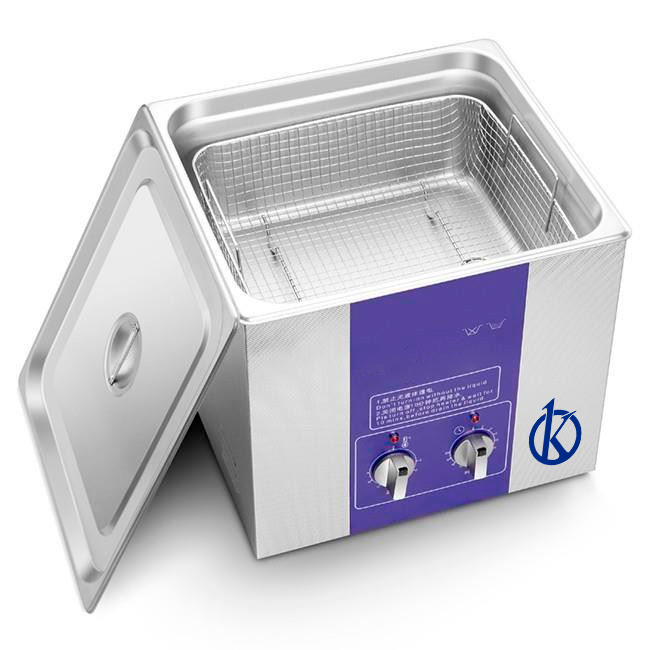

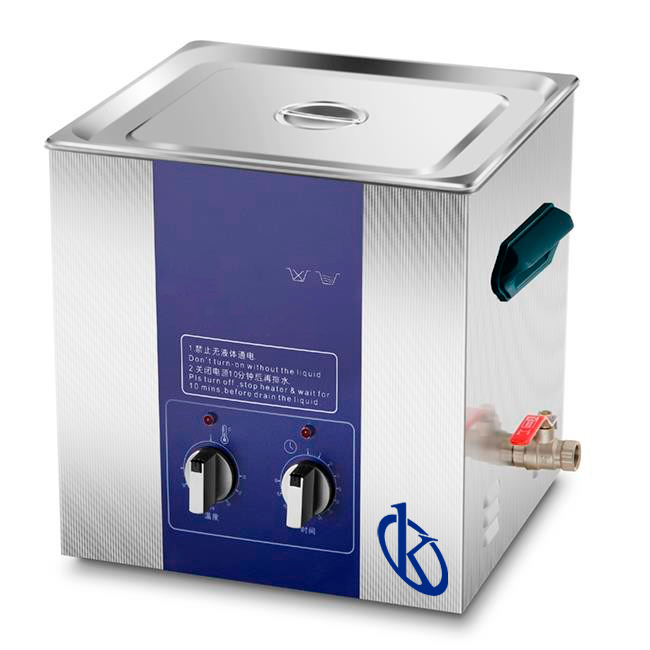

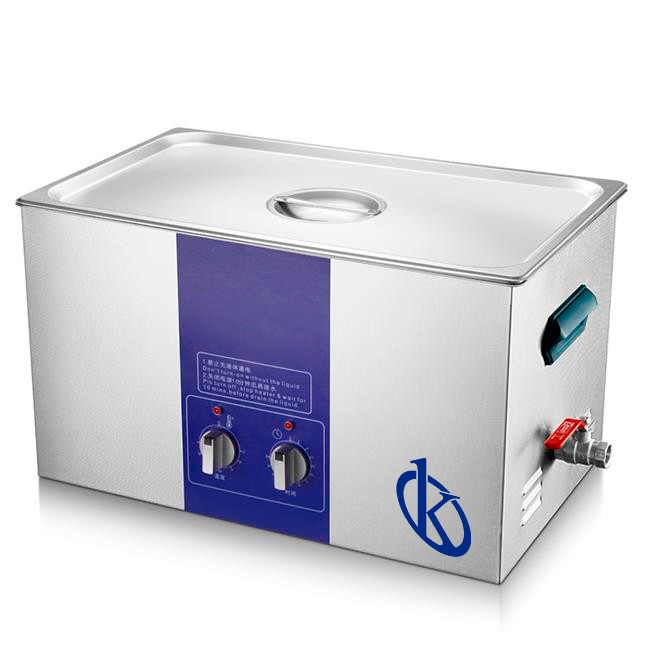

Ultrasonic Cleaner Machine YR05234 Series Ultrasonic Cleaner Machine has a various capacity of internal operation, high cleaning accuracy.It can effectively clean the tiny dirt particles, and also clean the deep hole, the small seam and the workpiece concealment.

Product Features
  • Proprietary MCU-sweep ultrasonic generator driver circuit to present better cleaning performance and to minimize noise level.
  • Proprietary industrial ultrasonic transducer with high Q value and energy conversion efficiency and long service life.
  • Imported high-strength glue, staple-free bonding, and long service life of tank.
  • Mechanical timed cleaning for 1-60 mins and digital heating control, arbitrary set temperature up to 80 โ„ƒ.
  • Internal tank fabricated of 1.0mm SUS304 stainless steel to present good performance and long service life.
  • Cleaning basket made of 304 stainless steel and electro-polished.Outer Shell made of high-quality stainless steel to present good corrosion resistance.
Model Internal Dimensions External Dimensions Volume๏ผˆL๏ผ‰ Gross Weight

(KG)

Ultrasonic

Power(W)

Heating Powery(W) Drain valve Frequency

(KHz)

Time

(Min)

Heating

Temperature(โ„ƒ)

YR05234 240*135*100 268*170*243 3.2 4.77 120 100
no
40
1-60
30~80
YR05235 240*135*150 268*170*290 5.0 5.4 120 200
YR05236 300*150*100 325*178*243 4.8 5.65 180 200 no
YR05237 302*150*150 325*178*290 6.8 6.2 180 200 no
YR05238 300*240*150 368*270*290 11 8.5 240 300 yes
YR05239 330*300*150 397*320*317 15 11.5 360 400 yes
YR05240 330*300*200 397*320*368 20 12.5 360 400
yes
YR05241 500*300*150 560*320*317 22 14.5 480 500
YR05242
500*300*200
560*320*385
30
16.0
600
500
yes
YR05243 28

Additional information

Weight N/A
Dimensions N/A
Model

YR05234, YR05235, YR05236, YR05237, YR05238, YR05239, YR05240, YR05241, YR05242, YR05243
