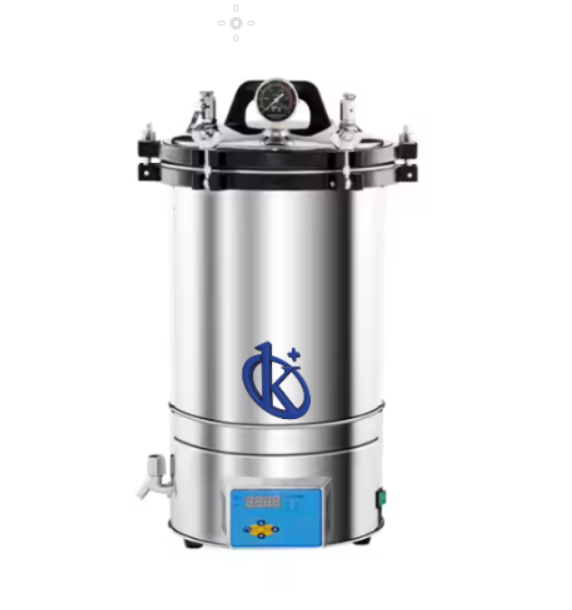

Digital Display Portable Steam Autoclave YR05701 // YR05703



  • Hand wheel quick open door.
  • High Quality SUS304 stainless steel material.
  • Electric heating system.
  • Double scale indicator pressure gauge.
  • LED digital display.
  • PID control.
  • Silicone seal.
  • Double safety valve to ensure safe.
  • High pressure faucet drainage water.
  • Easy operate, safe and reliable.
  • Automatic cut off the power if the water is not enough.
Safety Protection Device
  • Safe protection of water lacking.
  • The buzzer alarms when a cycle of operation is completed.
  • Over temperature& over pressure auto-protection.
  • Over current protector.
  • Safety valve of auto release against over-pressure.
Technical Specifications
Model YR05701 YR05702 YR05703
Type Portable Steam Autoclave
Working Pressure 0.14-0.16Mpa
Working Temperature Range 105 – 126℃
Sterilization Time 0 – 99 min
Heat Average ≤± 1℃
Control PID Microprocessor
Display Digital display
Sterilization Drum 1 PCS
Language  English
Voltage 110-240V, 50/60Hz, single-phase
Chamber Size 18L / Ø280×260 mm 24L / Ø280×390 mm 30L / Φ300 x 520mm
Gross Weight 16 17 19
Power 2.0KW

Additional information

Weight N/A
Dimensions N/A

YR05701, YR05702, YR05703
