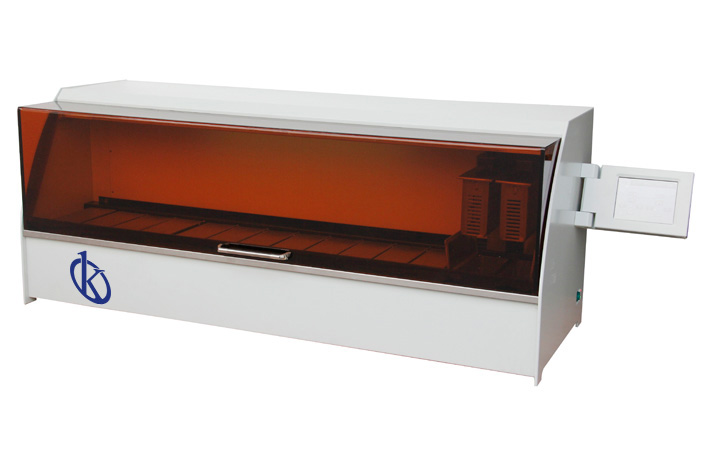

Fully automated tissue processor YR432-1

YR432-1 Automated Tissue Processor is mainly used in middle laboratories to process specimens to improve the quality sections. The max number of specimens processed is 200 each time. It is popular in the market because of its space saving and simple operation.

• Flexible transmission system, low noise, wear-resistant
• High-precision, low-noise, and wear-resistant photoelectric positioning system using imported high-quality elements to ensure stable and smooth operation all within an ideal ergonomic design
• Two sets of operation mechanisms doubles the processing capacity. Tissue specimens can be separately placed into different basketsaccording to size, texture, and origin, thus improving processing performance
• Optional single-mechanism mode for processing a small numberof tissue specimens easing the operation
• Scrolling processing mode multiplies the processing capacity of the system –one device can do the amount of work equal to multiple single-basket machine
• A processed basket can be continuouslyused following another basket that is in processing without interruption, thus achieving a continuous cycling operation and maximizing the processing capacity of the system
• 20 editable programs for each of A and B mechanisms can be stored in the system
• Integrated high-quality colored super largeLCD touch-screen offers clear display and simple operation; window-scrolling/flipping human-machine conversation interface provides clear instructions for each step (online help)
• Fully intelligent design, enabling timely determination and automatic recovery from an abnormal event
• Real-time visual simulation with icons displays working status dynamically, clearly and intuitively
• Green inner-cycling air purification system to highly efficiently adsorb and remove poisonous gas; well-sealed gas-effluxion mechanism to effectively improve the operation environment, environmentally friendly and safe
• This system can be automatically started at any timeas programmed (Setting Rang 0-99 hours and 0-59 minutes)
• Processing duration is automatically calculated and displayed on the screen, allowingthe user to make a more efficient work plan
• Power Protection Station: Station 7 for A basket and Station 5 for B basket, ensuring continuedoperation during a power outage.
• Automated fan control: Stays‘on’ all the time when the specimens are not submerged in cup and 10 seconds every minute when the specimens are submerged in cup and in processing
• Automated light control:
• stays ‘on’all the time during programming;
• stays ‘off’during the automatic operation and can be automatically turned ‘on’ anytime by touching the screen or any key and stays ‘on’ for 2
• Internal dry heating mechanism andtriple protection channels offer high-precision automatic gradient temperature control
• Automatically determines the time of heating, resulting inenergy efficiency
• Low-energy-consuming control circuit with power protection function
• When power outage occurs, the screen displays as normal with a scrolling bar demonstrating the ‘on’ status of the power protection system
• Battery backup with more than 30 hours of running power
• Manual operationcan be conducted anytime during the programmed automatic operation, allowing user to check or add tissue specimens during the operation
• 200 or more specimens can be processedat the same time
