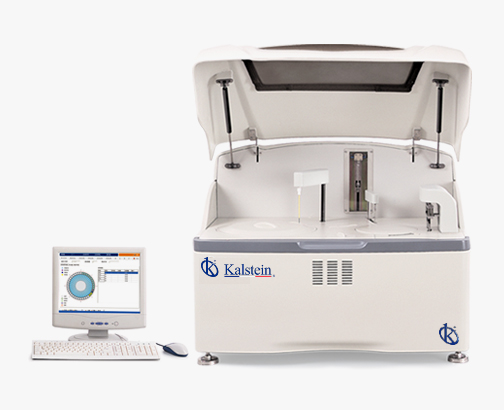

Fully Automatic Chemistry Analyzer YR06074



  •    Automatic, Random Access.
  •    Automatic 8 steps washing system, Low carry over.
  •    Labor saving, simple operation and real walk-away system.
  •    24 hours non-stop reagent cooling compartment.
  •    Pre-diluent function for sample.
  •    Low consumption of the reagent.
  •    User-friendly software.
  •    Multi-language supported.

Technical Specifications

Model YR06074
System Function
Throughput: Up to 160 tests per hour
Contents of the testing: Clinical chemistry, Immunoturbidimetric
Analytical modes: End-point, Two-point, Kinetic
Programming: Open system with user defined programs
Automatic Random Access
STAT sample priority
Sample Tray
Sample position: 40 positions for samples
Sample volume: 3- 100μL, 0.5μL adjustable
Any position for standard and quality control setting
Reagent Tray
Reagent position: 40 positions in refrigerated compartment
Refrigerated temperature: ≤16C
Reagent volume
R1:180~450μL, 1μL adjustable
R2: 30-250μL, 1μL adjustable
Working Condition
Power supply: a.c. 110V/220V, 50Hz
Temperature: 0~40°c
Humidity: ≤80%
Water consumption: Max 3 W/hour
Dimensions: 810mm (L)*680mm (W)*1150mm (H)
Gross weight: 145KG

Additional information

Weight 167 kg
Dimensions 100 × 88 × 138 cm
