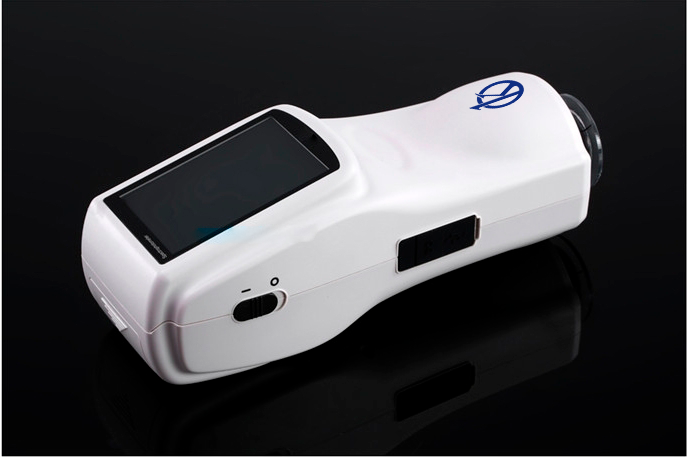

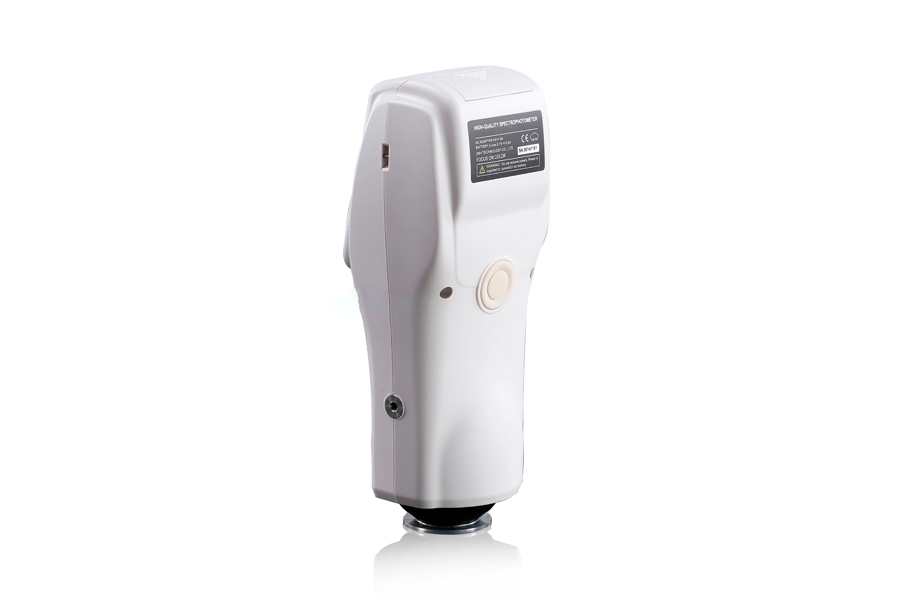

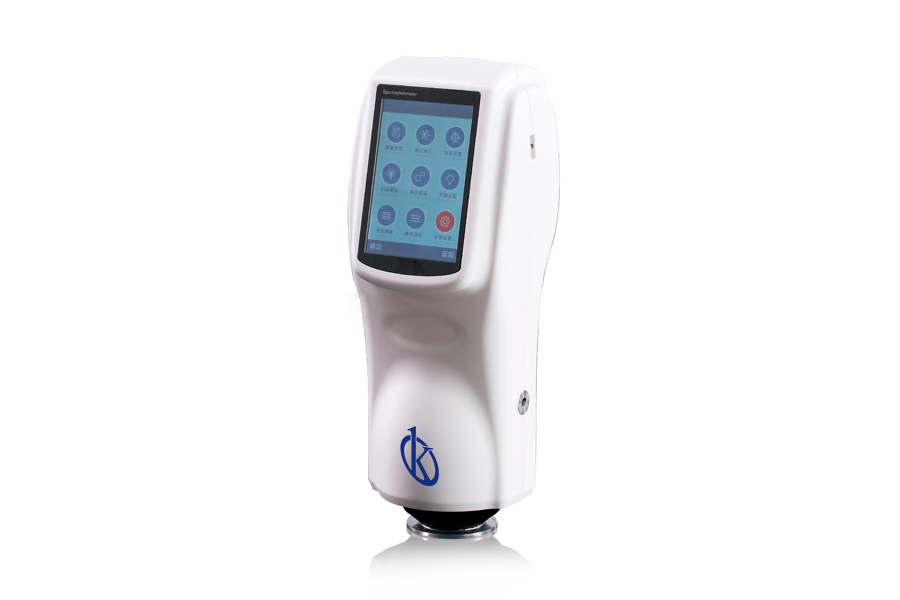

Handheld Color Spectrophotometer YR05496

Manufacturer:ย Kalstein

Description

YR05496 handheld color spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.

YR05496 color spectrophotometer is developed by Kalstein with independent intellectual property rights.It uses 45/0 geometrical optical structure, comply with CIE No.15, GB/T 3978. With human body engineering mechanics and humanized operation design, YR05496 color spectrophotometer has stable performance precise measurement and powerful functions in the leading position of the same industry.

With 400~700nm, YR05496 handheld color spectrophotometer features with high accuracy DeltaE*ab 0.04, and 8mm aperture makes measurement so easy. It can save 1000 Standards, 15000 Samples and you also can input your own LAB or XYZ value into the instrument. With SQC8 software, ย you can do better color control management. Plus, it is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.

Portable Color Spectrophotometer Product Features
  • Aesthetic design perfectly combined with ergonomics structure.
  • 45/0 geometrical optics structure, comply with CIE, ISO, ASTM, DIN standard.
  • 3.5 inch large capacitive touch screen.
  • Two standard observer perspectives, multiple light sources modes, a variety of color systems.
  • The repeatability ฮ”E*ab is within 0.04, the errors between each instrument ฮ”E* ab is less than 0.2.
  • Large capacity storage, can save more than 10000 data
  • PC software with powerful extension functions.
  • High hardware configuration with a number of innovative technologies.
  • Oversized integrating sphere, more effective homogenization ray of lights and precise measurement.
  • 15ยฐ oblique angle screen, more in line with the human eye observation
Technical Specifications

Model

YR05496

Illumination/observation system

45/0 method (45ย ring-shaped illumination, vertical viewing)

Comply with CIE No.15๏ผŒGB/T 3978.

Integrating sphere Size

ฮฆ58mm

Light Source

combined LED sources

Sensor

Silicon photodiodearray

Wavelength range

400~700nm

Wavelength pitch

10nm

Reflectance range

0~100%

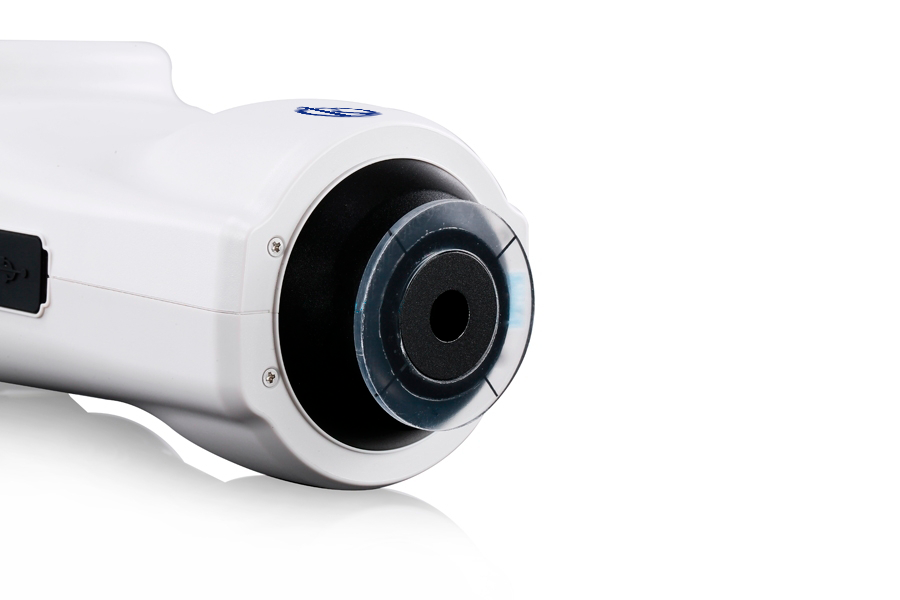

Measuring Aperture

ฮฆ8mm

Color Space

CIE LAB,XYZ,Yxy,LCh,CIE LUV

Color difference Formula

ฮ”E*ab,ฮ”E*uv,ฮ”E*94,ฮ”E*cmc(2:1),ฮ”E*cmc(1:1),ฮ”E*00

v

Other Chromaticity Data

Whiteness – WI(ASTM E313๏ผŒCIE/ISO,AATCC,Hunter)๏ผŒ

Yellowness-YI(ASTM D1925๏ผŒASTM 313),

TI(ASTM E313๏ผŒCIE/ISO),

Metamerism Index (Mt)

Colour Stain, Color Fastness, Color Strength, Opacity

Observer

2ยฐ/10ยฐ

Illuminant

D65,A,C,D50,D55,D75,F2,F6,F7,F8,F10,F11,F12

Display Data

Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation

Measurement Time

1.5s

Repeatability

Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)

Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)

Inter Instrument Agreement

Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)

Dimension

L*W*H=90*77*230mm

Weight

600g

Battery

Li-ion battery. 5000 times within 8 hours.

Lamp Life

5 years, more than 1.6 million measurements

Display Screen

TFT 3.5inch, Capacitive Touch Screen

Interface

USB/RS-232

Data Memory

1000 Standards, 10000 Samples

Operating Temperature

0~40โ„ƒ(32~104ยฐF)

Storage temperature

-20~50โ„ƒ(-4~122ยฐF)

Standard Accessory

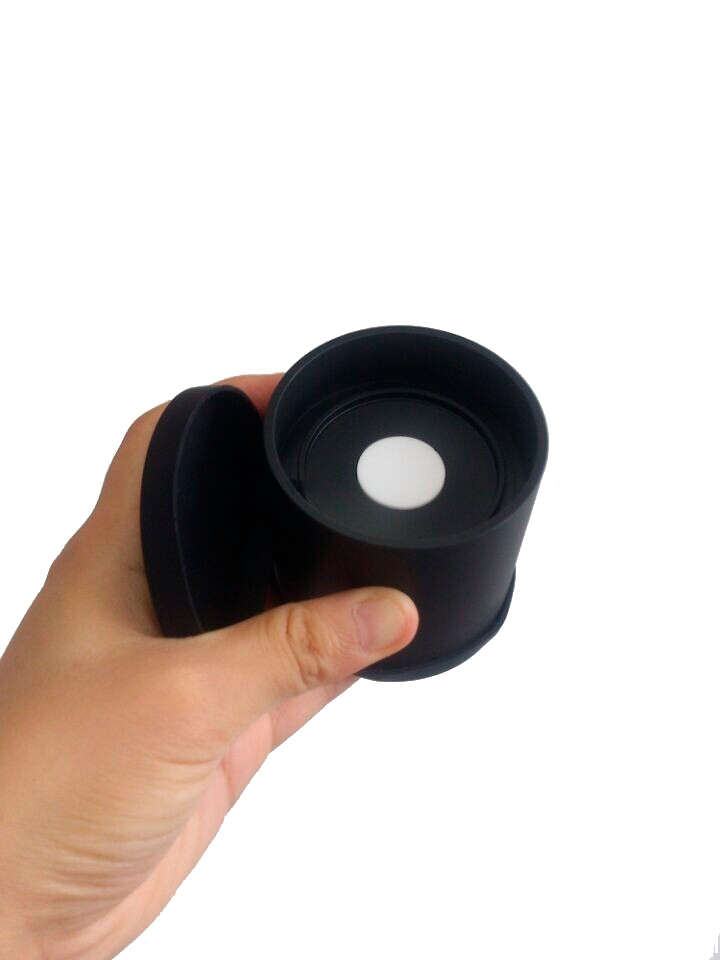

Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap

Optional Accessory

Micro Printer, Powder Test Box

Notes

The specifications are subject to change without notice.

Additional information

Weight 3 kg
Dimensions 34 × 13 × 29 cm
