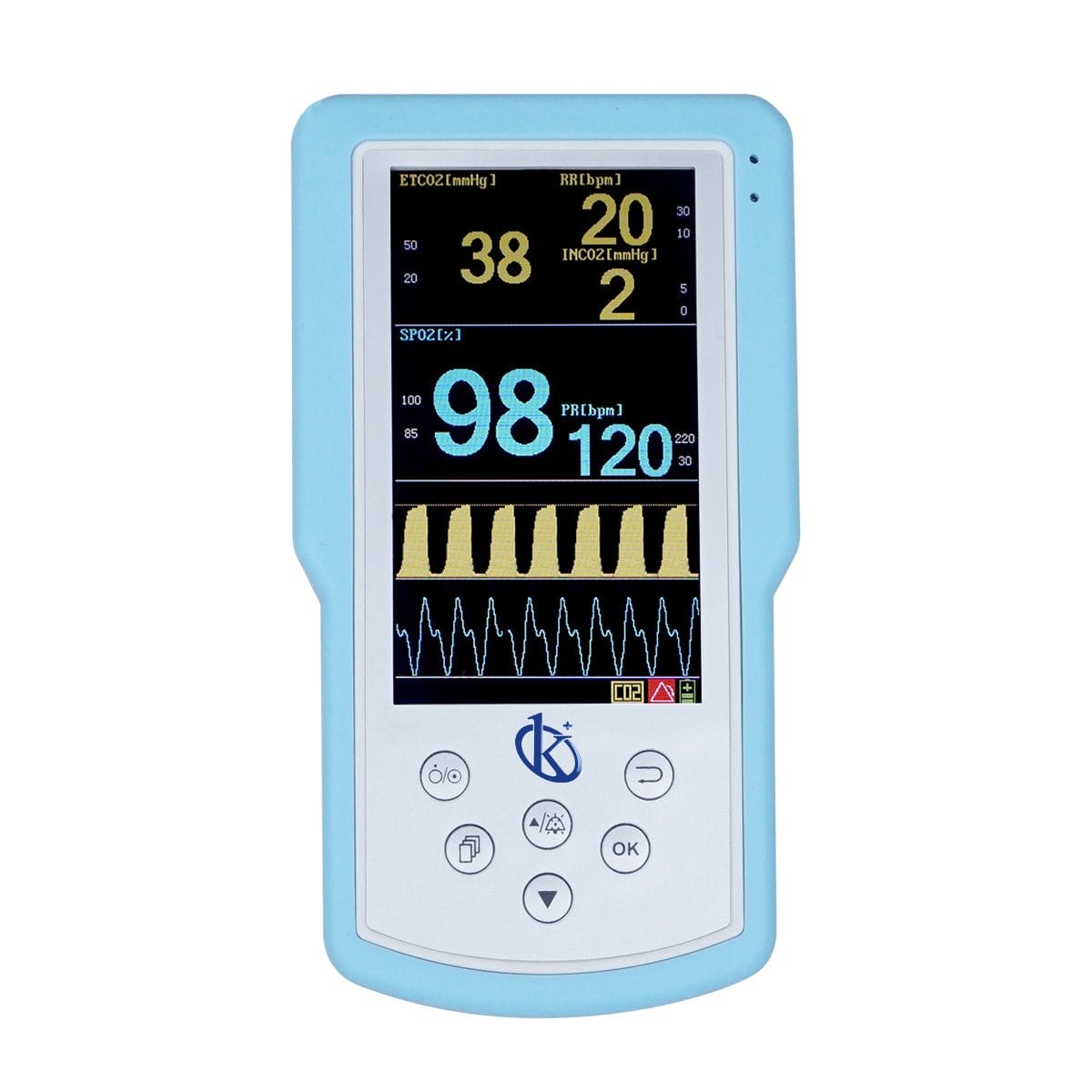

Handheld Veterinary Capnograph & SpO2 Monitor YR06108 – YR06109

ManufacturerKalstein

Description

Monitoring SpO2, pulse rate, EtCO2 and respiratory rate

Update 255 hour historical data replay on PC through USB

Equipped with SpO2 and Respiratory Status Analysis Software, comprehensive data analysis, report printing

Suitable for veterinary clinical and emergency circumstance

SpO2, SpO2+CO2 selectable.

Software Functions
  • Professional Data Analysis Software for CO2 Monitoring
  • Storaging 255 patients historical data
  • Displaying EtCO2, SpO2 Trends Table
  • Controlling Printer which connected by PC, outputing trend graph, trend table report
  • Recording and storage object’s respiration details in clinical
Application Fields
  • Monitoring the patient respiratory status during CPR
  • Assists in determining when to intubate or extubate
  • Verification of ET tube placement
  • Alerts if accidental extubation occurs
  • Verification of ventilation during transport
  • Specialized date export function, help analysing sleep condition
Technical Specifications
Model YR06108 YR06109
Measure Range
SpO2 0~100%
Pulse rate 35~254bpm
EtCO2 0~150mmHg
Respiratory rate 3~120bpm
Measure Accuracy
SpO2 ±2% (70~100%)
Pulse Rate ±2 or ±2bpm
EtCO2 ±5% of reading
Respiratory Rate ±1 breath
Electrical Safety
Adapter Input AC 110V/220V, 50/60Hz
Adapter Output DC 12V, 2A
Inner Battery Rechargeable Lithium Battery, working for 10 hours
Charge time 4 hours
Standard Parameters EtCO2 + SpO2
Standard Configuration Main unit, Sample line, Nasal sample line, CO2 adapter, SpO2 sensor, L-connector, Power adapter Sidestream EtCO2 Sensor Airway Adapter Kit (including 1pc Nafion Dehumidification Tube, 1pc L-Connector, 1 pc Sample Line, 1pc sidestream adapter)
Optional Configuration Mainstream CO2 Sensor Sidestream CO2 Sensor

Additional information

Weight 2 kg
Dimensions 35 × 25 × 11 cm
Model

YR06108, YR06109
