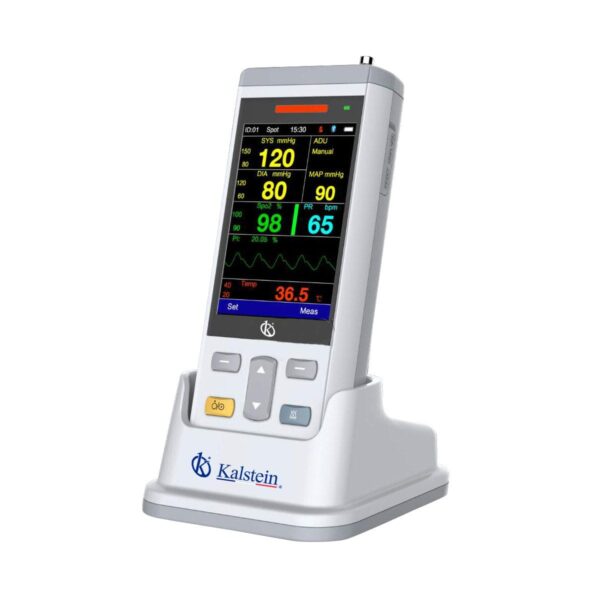

Veterinary Handheld Vital Sign Monitor YR06106

ManufacturerKalstein

Description

The smallest and exquisite handheld vital sign monitor in the worldwide.

Accurate measurement in 0.05% Low Perfusion Index, the word leading production in the movement environment

Provide the parameter of Pl( Perfusion Index 0.05%-20%)

Accurate measurement in all kind of extreme environment measurement such as neonatal and shock patients

Features
  • NIBP adopt
  • SAWAA (Self-Adaptive-Waveform-Amplitude-Adjust)algorithm and SAFD(Self-Adaptive-Fast-Deflation)algorithm
  • Easy operation by 3.5” color TFT
  • Up to 100 users ID switch
  • Multiple vital signs measurement parameters for collocation optional:
  • NIBP, SpO2, Temp
  • NIBP, Temp
  • SpO2, Temp
  • Two measurements mode: Spot, Monitoring
  • Data storage capabilities, support for historical data view and trend chart back to see
  • In monitoring mode, can continuously record 48 hours of measurement data
  • In spot mode, 100 users ID, each user can store 200sets data
  • Support audio and visual alarm, support to set alarm upper and lower limit values
  • Lithium ion battery power supply
  • Optional Charging dock
Technical Specifications
Model YR06106
Display 3.5 ” color TFT
Resolution 320*480
Indicator Alarm indicator, Power indicator
Trace 1 plethysmogram waveform
Alarm Probe off, low power
Modes Visual and Audio
Application Neonatal, pediatric and adult patients
Temperature Measurement range 25-45°C
Temperature Resolution 0.1°C
Temperature Accuracy 0.1°C
Power Type Lithium ion battery
Operation time 8 hours for normal operation
Storage/ Transportation -20℃~65℃
Humidity Operating: 15% to 90% noncondensing
Altitude Operating Altitude: Up to 5000 meters
Dimension 146mm*67mm*30mm
Weight 250g

Additional information

Weight 2 kg
Dimensions 34 × 24 × 18 cm
