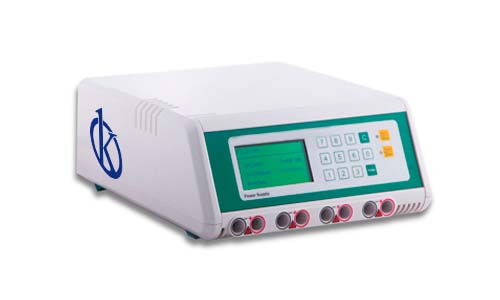

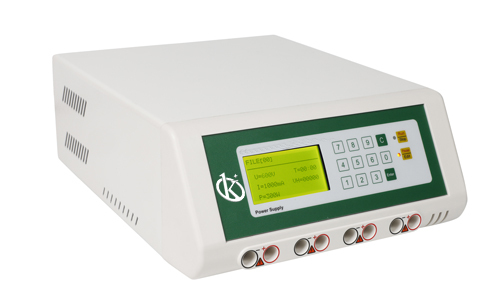

High-Voltage Power Supply YR03407

Manufacturer: Kalstein

Touch keys, dual core microprocessorintelligent control;
0-9 digital button, make the operation more simple andconvenient;
Indicate the preset value and the actual output value at the same time;
It can store 100 electrophoresis methods;
With automatic memory function;
With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);
With a pause control function (including real-time tuning)
With standard, timing, V-hr, step-by-step operation function;
With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions
Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

Model	YR03407
Type of Output	Constant-Voltage, Current or Power
Increment	1V, 1mA, 1W
Output Range	20–3000V, 1–400mA, 1–400W
Timer Range	1min~99hr, 59min
V-hr Range	1~99999V-hr/ Increment 1V-hr
Display	LCD display with backlight
Output jacks	Four sets of output jacks

Weight	6 kg
Dimensions	40 × 36 × 22 cm
