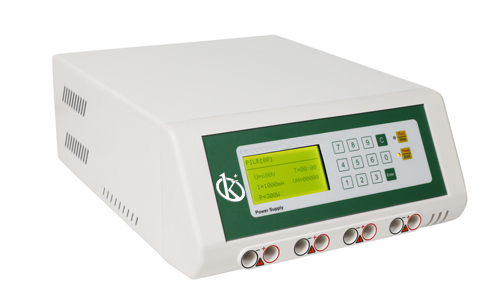

High-Voltage Power Supply YR03409

Manufacturer: Kalstein

Product Description

  • Touch keys, dual core microprocessor intelligent control;
  • Indicate the preset value and the actual output value at the same time;
  • It can store 10 electrophoresis methods;
  • With the temperature control operation, range of temperature is RT+10โ„ƒ~65โ„ƒ;
  • With automatic memory function;
  • With Standard, Timing, Temperature control operation function;
  • With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;
  • Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.
Technical Description
Model YR03409
Type of Output Constant-Voltage, Current or Power
Increment 1V, 1mA, 1W
Output Range 20–3000V, 1–200mA, 1–200W.
Timer Range ย 1min~99hr, 59min
V-hr Range 1~99999V-hr/ Increment 1V-hr
Display LCD display with backlight
Output jacks Four sets of output jacks



Additional Information

Weight 6 kg
Dimensions 40 × 36 × 22 cm
