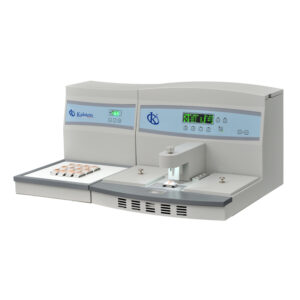

Inclusion Center YR439-1

Manufacturer: Kalstein



  • Imported OLED module display, clear writing, you can clearly observe the display data from any angle
  • The interface layout is reasonable, the working status icon is displayed and the button LED indicates, the working status is clear at a glance
  • Full automatic program control by computer, can be preset to turn on and off at any time every week
  • The integrated temperature measurement block imported from the United States has high precision and reliable performance.
  • Independent seven channel PID temperature control, do not affect each other
  • Using a new type of flexible heating element, rapid heating, uniform heating, energy saving and reliable
  • Double overheat protection device; safe and reliable
  • With memory and automatic recall functions, the preset temperature is automatically retained after operation
  • Two modes of operation, manual mode to start and stop immediately, automatic mode with power off memory, call auto power function
  • The left and right boxes are enlarged, suitable for all kinds of dewatering baskets. The inner and outer boxes are separate design, which is convenient to take out and change the wax and maintain.
  • Enlarged tweezer storage table, large and small tweezers can be placed, unique diversion groove design to prevent paraffin overflow
  • Large workbench design with wax block repair device, multi-functional use
  • Equipped with universal metal hose magnifier, users can be adjusted according to their needs, suitable for the organization and operation of very small samples.
  • Imported semiconductor random small cold table, instant cooling, convenient for rapid sample positioning and embedding, and improve work efficiency
  • Large capacity wax bath to ensure mass tissue inlay can be completed in one go
  • The cold light source low-voltage lighting system adopts imported CPU constant current independent control, and the brightness is continuously adjusted without flickering
  • The lighting adopts the universal metal hose design, the lighting angle can be adjusted arbitrarily, and it is more convenient to observe the tissue samples.
  • Imported valve adjusts the flow rate of the wax nozzle, suitable for various tissue inlay treatments
  • Soft touch automatic switch, dual control flow wax design foot switch, two ways to choose at will
  • Perfect wax flow system design, automatic wax outlet, precise position and convenient inlay operation
Technical Description
Model YR439-1
Paraffin Chamber Capacity โ‰ฅ6 liters
Temperature ranges RT – 85 โ„ƒ:
Temperature control precision ยฑ 1%
Paraffin flow control Paraffin flow control via touch plate and
optional pedal
Fully programmable ON / OFF control allows automatic start and stop
from the system at any time weekly
Paraffin Chamber Dimensions (BMIV) 495 ร— 132 ร— 95 mm (width x depth x height)
Thermal camera dimensions (each) 240 ร— 160 ร— 50mm (width x depth x height)
Keying module workspace 540 mm ร— 93 mm
Small cold plate dimensions 60 ร— 50 mm
Operating voltage AC 220V ยฑ 10% 50Hz (standard model); AC110V ยฑ 10% 60Hz
Power 1000W
Dimensions 670ร—575ร—395mm(W x D x H)
Net weight 38.5kg

Additional information

Weight 64 kg
Dimensions 78 × 70 × 55 cm
