Manufacturer: Kalstein

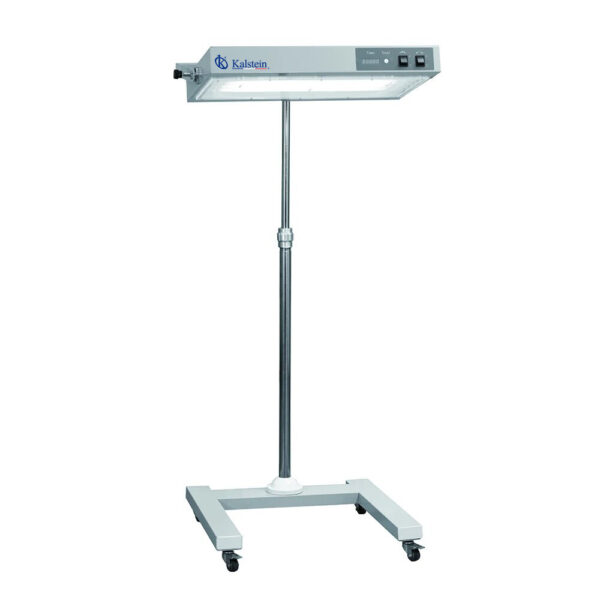

The newborn patients with hyperbilirubinemia all need best care for threating jaundice. Our line of phototherapy products supply you the reliability and stability intensive phototherapy by LED light for your baby patient. The unit has a long-life that provides 20,000 to 0,000 hours of light therapy.
The YR02194 unit like YR02194 unit with blue florescent tube has independent framework can use with incubator, irradiant heat bassinets, and any kind of bassinet in family care. Widely applicable in all hospitals and clinics and optimize for jaundiced baby.
Model | YR02194 |
Irradiation source | LED Light |
Irradiation wavelength range (300 ~ 550) nm | • |
Irradiance adjustable from 1 to 99 levels | 3 000 uw / cm2 |
Time calculator | • |
Countdown | • |
Total time | • |
Display range 0 – 9999 h | • |
Adjustable working height | • |
Effective shelf life | 5 000h |
Nominal Lifespan of Blue Light | 20 000h |
Energy consumption | ≤ 50W |
AC motor | • |
Function | |
Irradiation wavelength range | 400 ~ 550nm |
Adjustable irradiation intensity (max.) | 3 000 uw / cm² |
Wavelength of wave crest | 460nm |
Irradiance adjustable from 1 to 99 soft | • |
Hourly | • |
A fixed time | • |
Time totalizer | • |
Display range (hour) | 0 – 9 999h |
Structural parts | |
Adjustable in vertical height | 1 100 – 1 589mm |
Useful life | 5 000h |
Nominal Lifespan of Blue Light | 20 000h |
Dimension | 500 x 600 x (1 355 ~ 1 705) mm |
Electric parts | |
Power supply | AC (220 ± 22) V (50 ± 1) Hz |
Energy consumption | ≤50W |
Room temperature | 10 – 40 ° C |
Relative humidity | ≤80% |
Motor | AC |
Weight | 46 kg |
---|---|
Dimensions | 145 × 81 × 32 cm |
