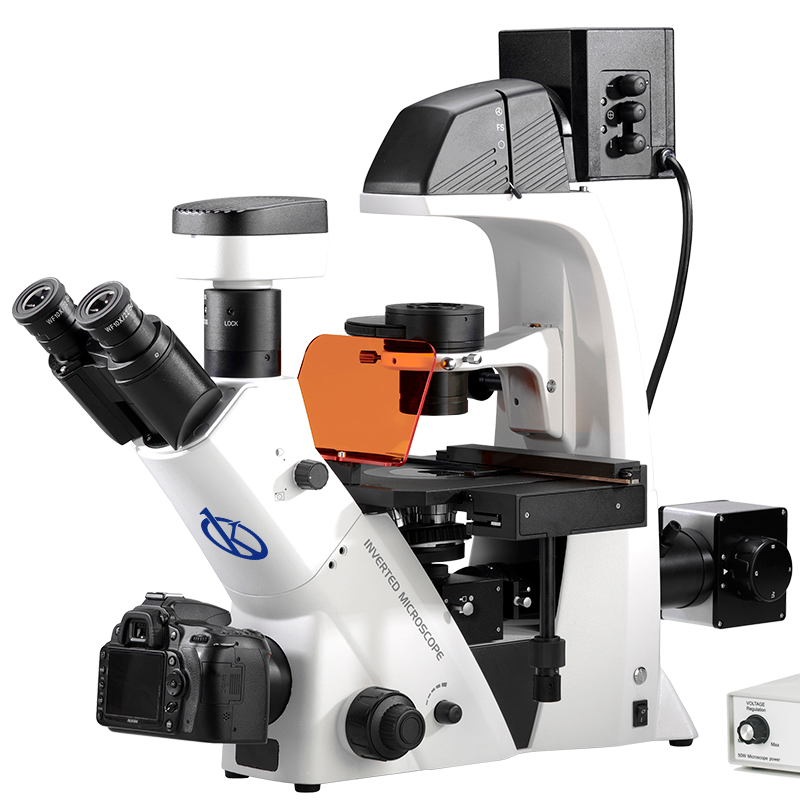

Inverted LED Fluorescent Microscope YR05791 – YR05792

ManufacturerKalstein

ManufacturerKalstein

Product Description

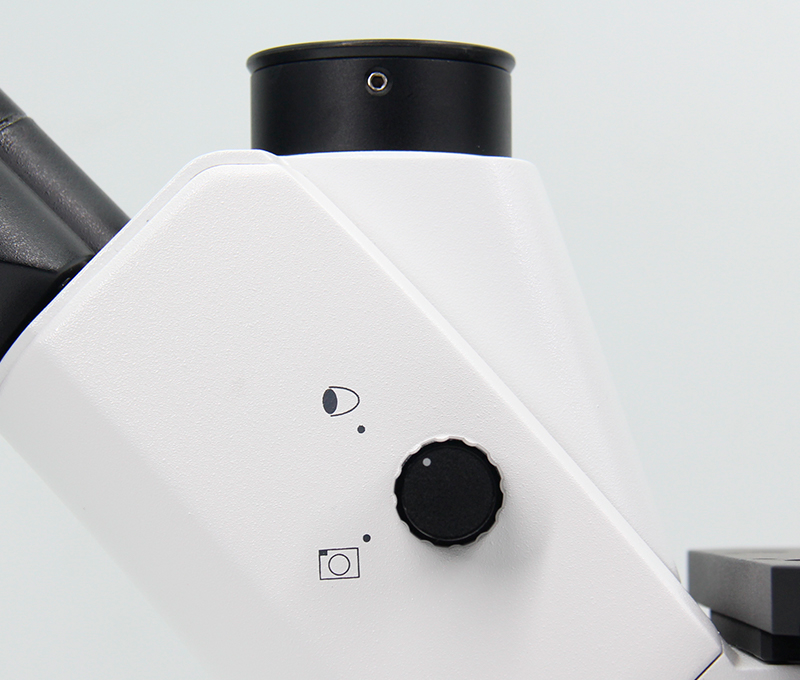

  • Seidentopf Trinocular Head Inclined 45°Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80

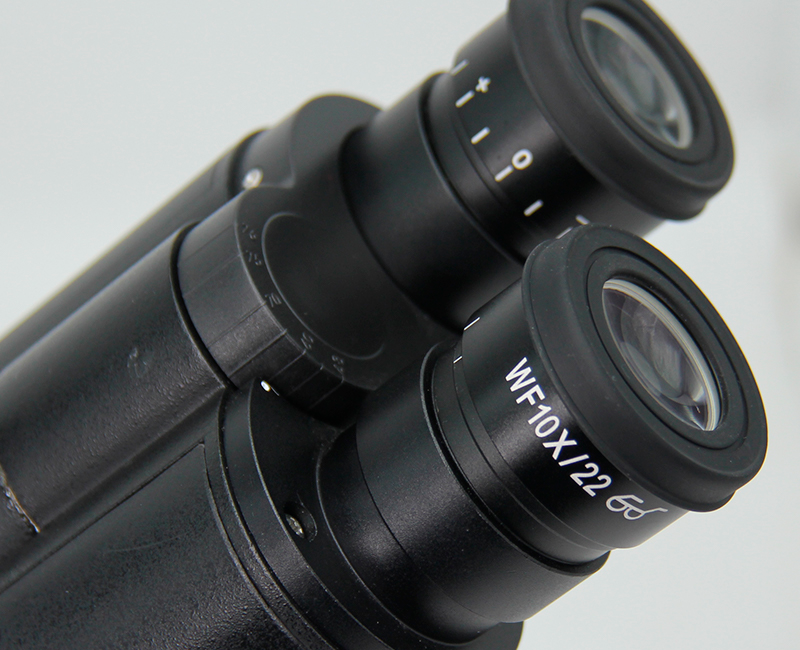

    WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable
Reflect Light
  • Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V
Condenser
  • 4 Holes Rotating Disc Phase Contrast Condenser
    N.A.0.4, W.D. 45mm, Up/Down Adjustable
Long Working Distance
  • Working Distance 72mm (With Condenser), 195mm (Without Condenser)
Objectives
  • LWD Infinity Plan Fluorescent Objectives 4x, LWD Infinity
    Plan Phase Contrast Fluorescent Objectives 10x, 20x, 40x
Working Stage
  • Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm
    Culture Dish Holder  54mm
ECO, Auto Power Off System
  • Power Off Automatically Upon User Leaving 10 Minutes,
  • Power On Automatically Upon User Approaching Detected,
  • This Function Can Be Shut Down Manually
Adapter
  • Photo Adapter With 1.7x Photo Eyepiece,100% Light For Camera Port,
  • For Canon SLR Digital Camera

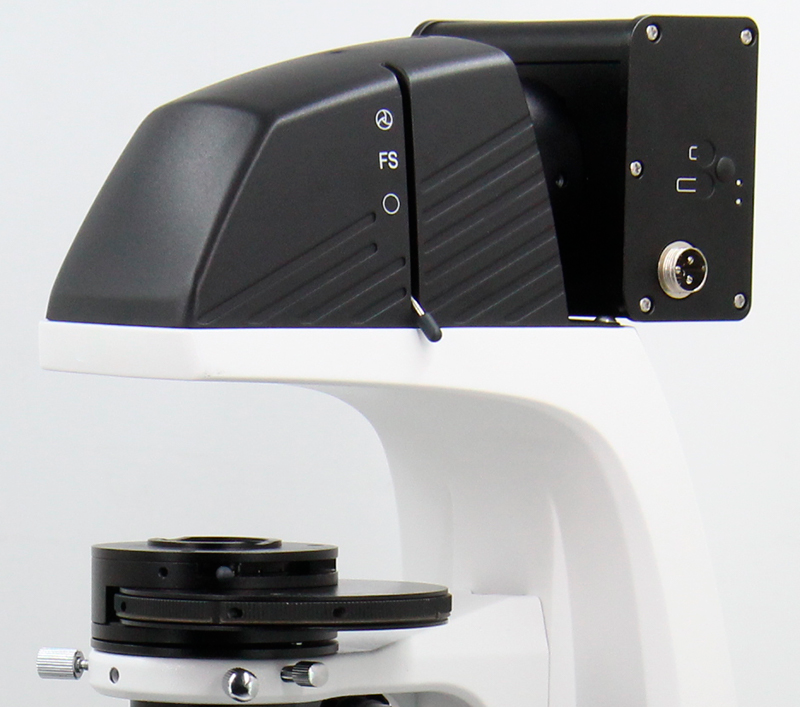

Epi Fluorescence Illumination
  • China Fluorescent Filter,
  • 5W LED Lamp House
  • 5W LED Power Box
  • Ultraviolet Protection Barrier
  • Fluorescent Slide Unit 3 Holes, With Filter Diaphragm, Center Adjustable
  • 5W LED B,G Lamp Each 1 pc
Technical Specifications
Model YR05791 YR05792
Features Infinity DualPhoto
Port ECO (Auto Power Off)
Optical System Infinity Plan
Head Type Seidentopf Trinocular
Head Interpupillary 48~76mm
Head Light Path E100:P0/E20:P80
Eyepiece
Features
Diopter Adjustable
Eyepiece
Diameter
30.0mm
Nosepiece
Holes
5 holes
Objective
Features
LWD
Objective
Type
Infinity Plan
Phase Contrast
Working Stage
Features
Size ≥140x140mm
Working Stage
Type
Fixed + Attachable
Focusing
Features
Tension Adjustable
Condenser
Features
Slor for PH Slide
Condenser
Type
Phase Contrast
Condenser N.A 0.4
Light Source
Features
Kohler Illumination LED 5W
Halogen 30W
Transmit & Reflect
Light Source
Type
Halogen Fluorescent
Video Adapter C-Mount 0.3x
Fluorescent Band 3 Bands

Additional Information

Weight 17 kg
Dimensions 66 × 60 × 33 cm
Model

YR05791, YR05792
