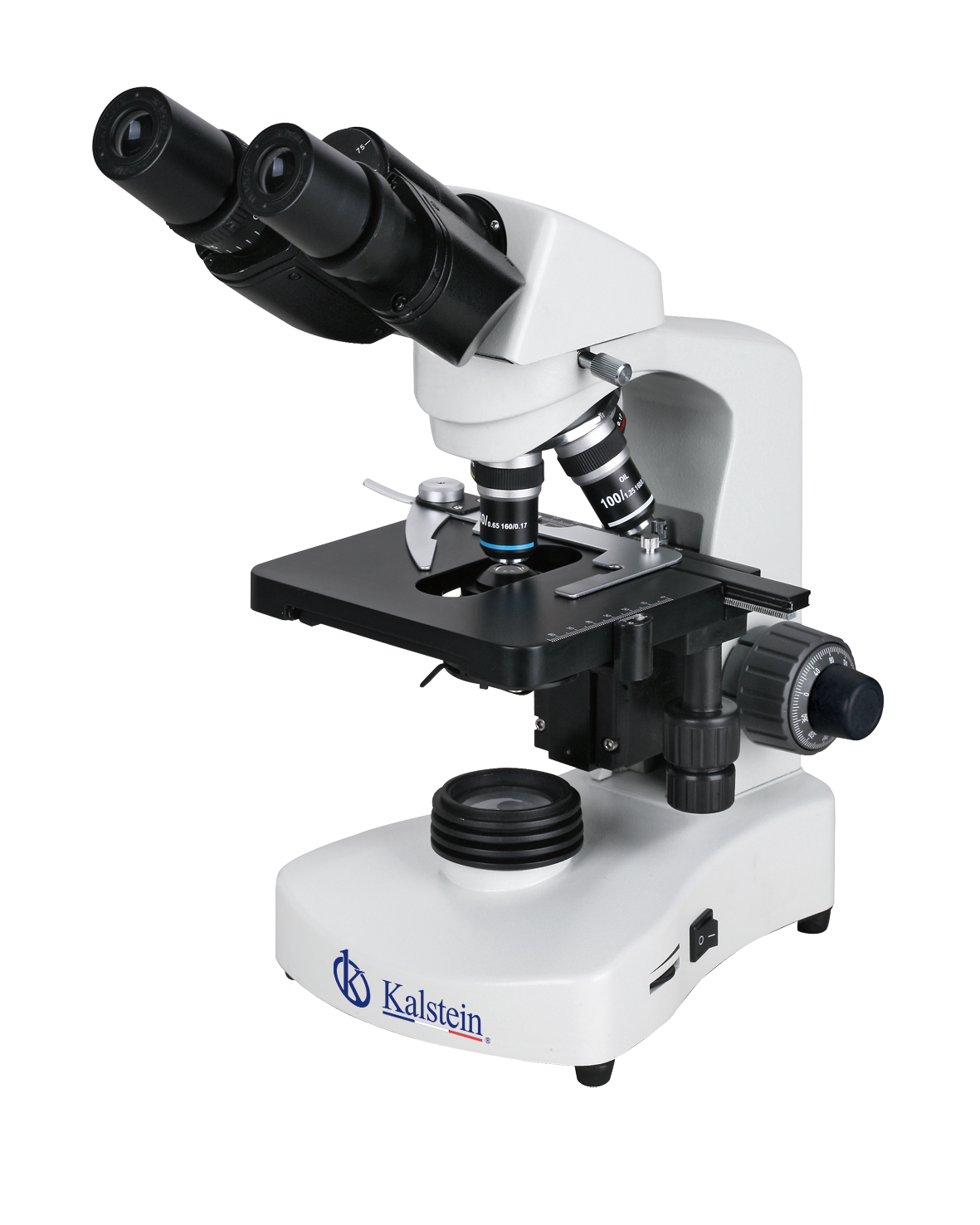

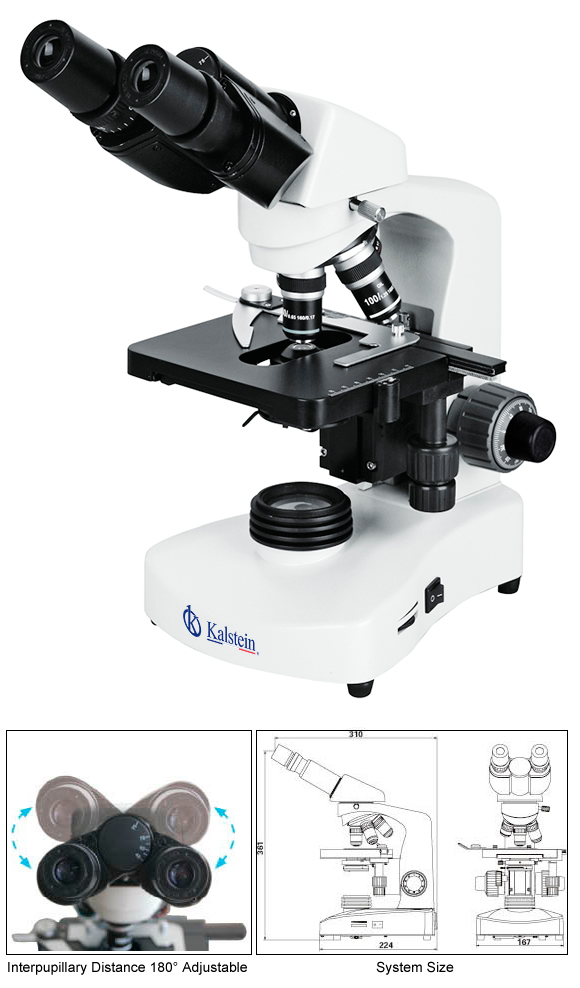

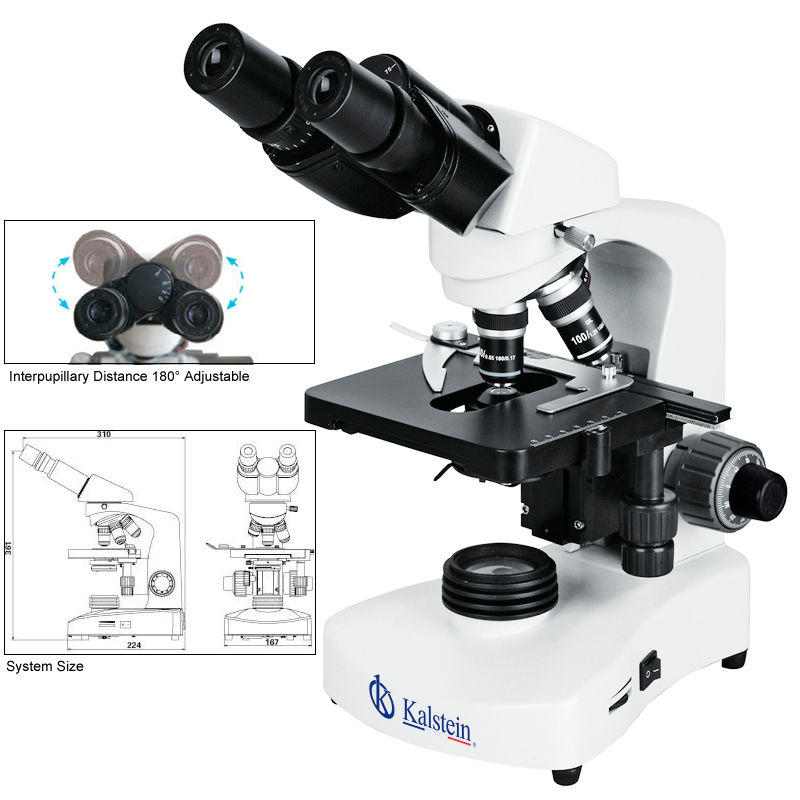

Laboratory Microscope YR0241

Manufacturer:ย Kalstein

Product Description

  • Coaxial coarse and fine knob, 24mm range of motion, 0.004mm fine division
  • Siedentopf trinocular head, 30ยฐ inclined, interpupillary distance 55-75mm
  • Revolving quadruple objective-carrier revolver
Technical Specifications
Model YR0241
Head Siedentopf binocular head, inclined at 30ยฐ, interpupilary distance 48-75mm โ—
Siedentopf trinocular head,
inclined at 30ยฐ, interpupilary Distance 55-75mm
Eyepiece Wide field eyepiece WF10x/ 18 โ—
Objective Achromatic objective 4x โ—
Achromatic objective 10x โ—
Achromatic objective 40x โ—
Achromatic objective 100x โ—
Nosepiece Backward quadruple nosepiece โ—
Stage Double layers mechanical stage132x142mm/ 75x40mm โ—
Focusing Coaxial coarse & fine knob, moving range 24mm, fine division 0.004mm โ—
Condenser Abbe condenser N.A.1.25 with Iris diaphram & filter โ—
Illumination LED 3W, brightness adjustable โ—
Optional Accessories Item No.
Eyepiece P16x/11 YR0241-op1
Phase Contrast Kit YR0241-op2
Polarization Attachment YR0241-op3
Illumination Halogen lamp 6V/ 20W, brightness adjustable YR0241-op4
Dark Field Condensor YR0241-op5

Additional Information

Weight 6,3 kg

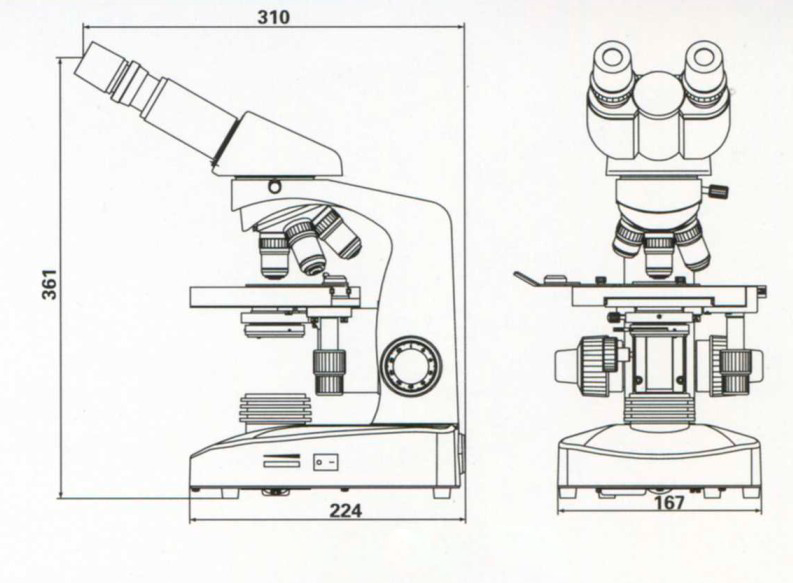

Dimensions 39,6 × 26,2 × 49,2 cm
