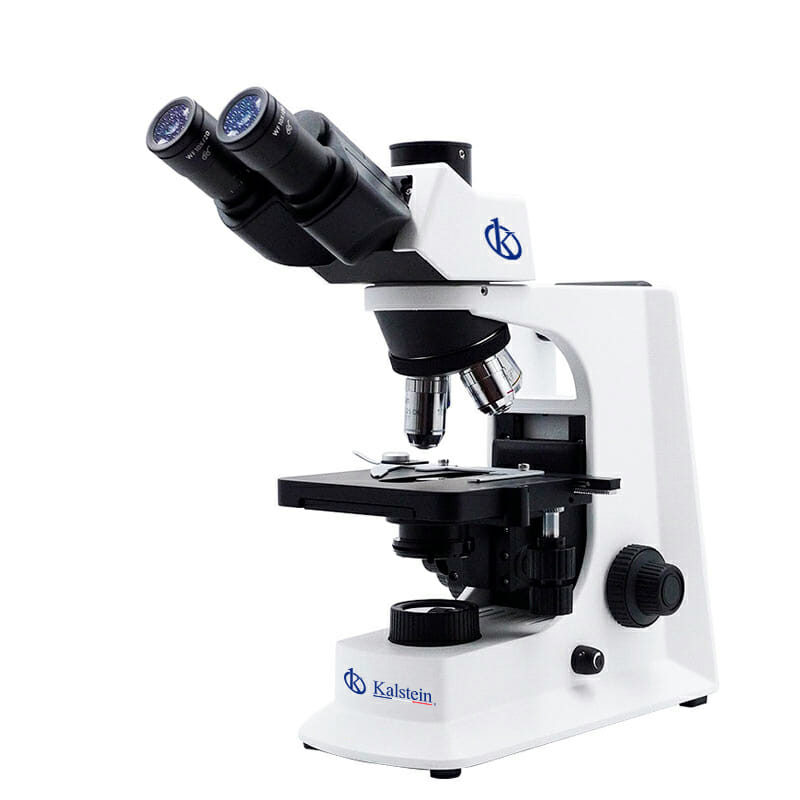

Laboratory Biological Microscope, Trinocular, Achromatic YR05788-AT

ManufacturerKalstein

Description

  • Entry Level Laboratory Microscope With Full Range Upgrade Extension.
  • Can Use 40x LWD Infinity Plan Objective W.D.=3.0m To Avoid Contaminated By Cedar Oil.
  • Creative 100x Water Objective Instead Of I00x Oil Objective For Easy Use Without Oil.
  • High Rigidity Body Structure Design Supply High Steady & Easy Handle.
  • Different Color Available To Customize Your Model!
Seidentopf Head

Inclined 30°, rotatable 360°, interpupillary distance 48-75mm, high eyepoint eyepiece, which is convenient for people with different sitting height; the integrated design of the eyepiece lens barrel, avoids the loss and contamination of the eyepiece and enhances the integrated performance of the microscope.

Quadruple, Backward

4 sets objective available: achromatic, plan, infinity e-plan, infinity plan.

Double Slide Holder Working Stage

Mechanical stage size: 145 mm×140mm, travel: 76mmx52mm, scale: 0.1mm.

Condenser & Light Source

Abbe condenser n.a.1.25, iris diaphragm, rack & pinion up/down, with filter holder 3w-led illumination systems.

Technical Specification:
Model YR05788-AT
Power Supply Type DC USB Adapter
Transmit Light 3W LED
Light Source Type LED
Condenser N.A. 1.25
Condenser Type Abbe
Condenser Features Rack & Pinionↆ↑, Filter Holder, Iris Diaphragm
Focusing Knob Low Position Focusing Knob For Easy Operation
Focusing Scale 0.002mm
Focusing Range 26mm
Focusing Type Coaxial Coarse & Fine
Focusing Features Safety Stop Screw, Tension Adjustable
Working Stage Moving 76x52mm
Working Stage Size 145x140mm
Working Stage Type 2 Layers Mechanical
Working Stage Features Double Slide Holder, Size ≥140x140mm
Objective Achromatic Objective 4x,10x,40x,100x
Objective Type Achromatic
Nosepiece Holes 4 Holes
Nosepiece Features Inward
Eyepiece WF10x/18mm, 2 pcs
Eyepiece Diameter 23.2mm
Eyepiece Features Diopter Adjustable
Head Light Path E80:P20
Head Diopter Left Adjustable
Head Interpupillary 48~75mm
Head Rotation Head Rotate 360°
Head Inclination 30°
Head Type Seidentopf Trinocular
Standard Magnification 40x-1000x
Optical System Achromatic
Upgrade Function BF+PH+DF+PL+FL
Standard Function BF

Additional information

Weight 8,5 kg
Dimensions 39 × 28 × 45 cm
Model

YR05788-AT

Characteristic Feature

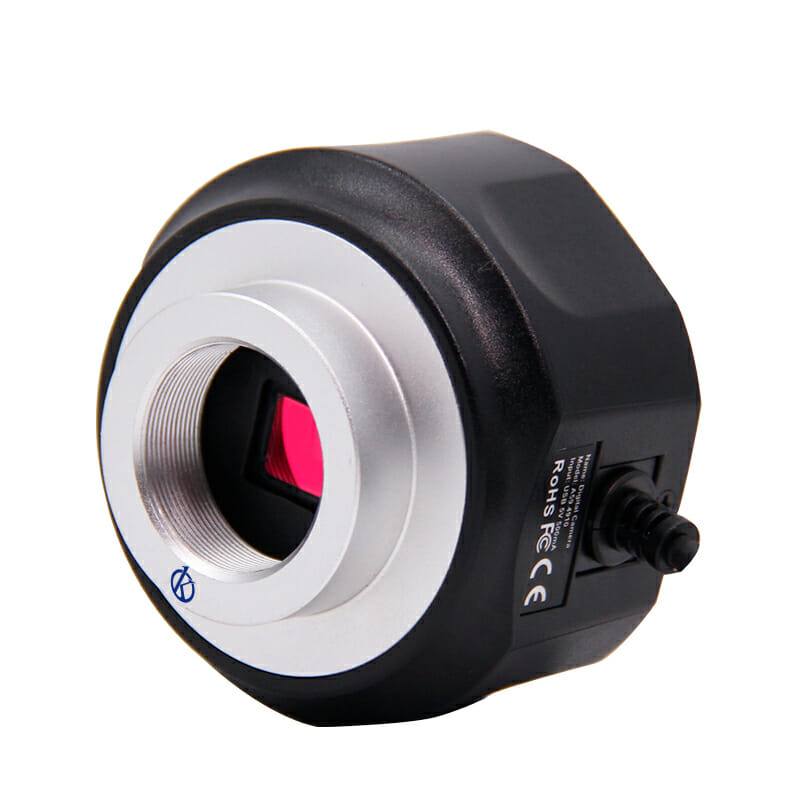

No Features, YR05788AT-op1 USB2.0 CMOS Digital Camera, 5.0M, Fix USB Cable
