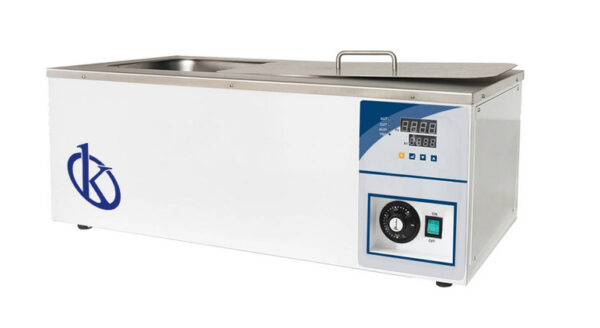

Oil bath YR04973 // YR04976

Manufacturer: Kalstein

Manufacturer: Kalstein

This product is currently out of stock and unavailable.

Product Description

YR oil bath series is widely used in bioengineering, medicine, food, chemical industry, gold treatment, petroleum and other fields. To provide users with high-precision, controlled, temperature uniform constant place, is the Research Institute, colleges and universities, factory laboratory, inspection department, etc.

  • Microcomputer intelligent control system has the advantages of rapid remperature rise, stable temperature and easy operation
  • Dual purpose water and oil: the maximum temperature can reach 250°C
  • Led dual window digital display temperature measurement value and temperature setting value respectively, convenient to touch the key
  • It is suitable for chemical reaction, biomedicine and other industries which need high temperature field
  • Optional magnetic stirring device for high temperature reaction
Model (Integrated chamber) YR04973 YR04974 YR04975 YR04976
Controller PID
Voltage 220V / 50Hz 110V/60Hz
Power (W) 1 000W 1 200W 1 600Ww 2 000W
Temperature – Range (°C) RT. +5~250°C
Temperature Resolution 0.1 °C
Temperature Fluctuation ≤±0.5°C
Division Accuracy ≤±1°C
Timer 999 minutes
Recycle Design Optional
Magnetic Optional
Safety Over current protection, Over temperature alarm; Mechanical temperature limiter
Chamber Size (mm) 300 x 240 x 150 300 x 240 x 200 500 x 290 x 150 500 x 290 x 200
Product Size (mm) 390 x 280 x 240 390 x 280 x 290 600 x 350 x 240 600 x 350 x 290
Packing Size (mm) 440 x 330 x 290 440 x 330 x 340 650 x 400 x 290 650 x 400 x 340

Additional Information

Weight N/A
Dimensions N/A

YR04973, YR04974, YR04975, YR04976
