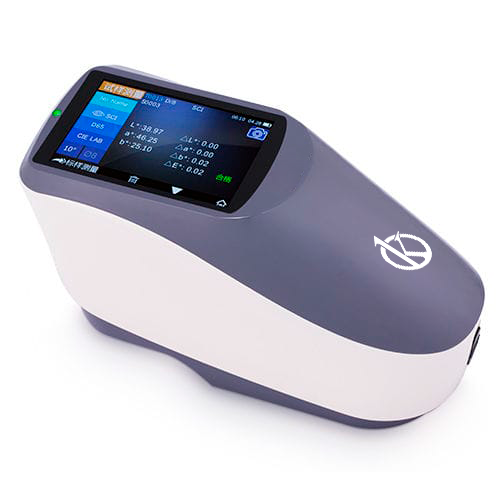

Plus 45/0 8mm Spectrophotometer YR05505

Manufacturer:ย Kalstein


Kalstein have new model YR05505 plus 45/0 grating spectrophotometer that is economic with customized one aperture, like 8mm aperture, or 4mm or 2mm and apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.

Technical Specifications

Model YR05505
Illumination/Observation system 45/0(45 ring-shaped illumination, verticalย  viewing);

Comply with CIE No.15๏ผŒGB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893ใ€GB/T 18833

Features Common spectrophotometer with customized one aperture, like 8mm aperture and apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.
Integrating Sphere Size ฮฆ48mm
Light Source Combined LED Light
Spectral separation device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Half Bandwidth 10nm
Reflectance Range 0~200%
Measuring Aperture Customized One Aperture๏ผšMAV:ฮฆ8mm/ฮฆ10mm๏ผ›SAV:ฮฆ4mm/ฮฆ5mm๏ผ›SAV:ฮฆ2mm/ฮฆ3mm๏ผ›
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,ฮฒxy
Color Difference Formula ฮ”E*ab,ฮ”E*uv,ฮ”E*94,ฮ”E*cmc(2:1),ฮ”E*cmc(1:1),ฮ”E*00,ฮ”E๏ผˆHunter๏ผ‰
Other Colorimetric Index WI(ASTM E313๏ผŒCIE/ISO,AATCC,Hunter)๏ผŒ

YI(ASTM D1925๏ผŒASTM 313),

MI (Metamerism Index),

Staining Fastness, Color Fastness, Color Strength, Opacity,

Observer Angle 2ยฐ/10ยฐ
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4๏ผŒF5๏ผŒF6,F7(DLF),F8,F9๏ผŒF10(TPL5),F11(TL84),F12(TL83/U30)
Display Data Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph,ย Pass/Fail Result, Color Offset
Measurement Time About 1.5s
Repeatability Spectral reflectance: MAV,Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%)

Chromaticity value:MAV,within ฮ”E*ab 0.05( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument Error Within ฮ”E*ab 0.2 (Average for 12 BCRA Series II color tiles)
Measurement mode Single Measurement, Average Measurement(2-99)
Size(L*W*H) 184*77*105mm
Weight About 600g
Power source Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB
Data memory Standard 500 Pcs, Sample 20000 Pcs
Language Chinese,English
Working Environment Temperature: 0~40โ„ƒ; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment Temperature: -20~50โ„ƒ; Humidity: 0~85% (No Condensation)
Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover.
Optional Accessory Micro Printer, Powder Test Box, Universal test components, Locating Plate
Notes: The specifications are subject to change without notice.


Additional information

Weight 3 kg
Dimensions 34 × 13 × 29 cm
