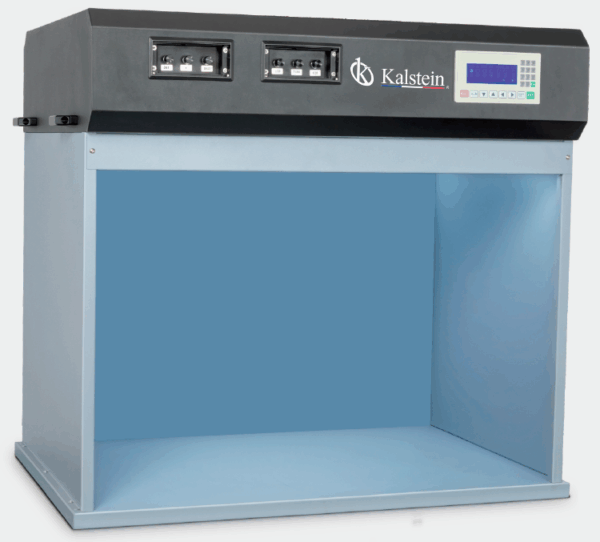

Standard Color Light Box YR05532

Manufacturer:ย Kalstein


YR05532 color light box is 2016 new product, and it adopts 7 light source with 4 sets of LED light (Life up to 25000 times) and 3 sets of fluorescent light source. The unique design combinate of the characteristics of Verivide and X-rite light box. The multi light source turn-on makes easy to check the metamerism of samples. The sample is one color under this light, but it will display another color when you switch another light source. With UV light, close to natural daylight, it can be used independently or together with other light sources, more effective to check the dye sample if they have fluorescent whitening agent. The adjustable illumination offers different light environment for samples, easier to check color difference.

Product Features
  • Unique International Design Appearance, combination of the characteristics of Verivide and X-rite light box.
  • 7 light source, 4 sets of LED light (Life up to 25000 times), 3 sets of fluorescent light source.
  • Display the use time and numbers of every light source.
  • Adjustable illumination light.
  • ย Automatic switch among light sources, with metamerism function.
  • ย No warm-up time or flickering which insures quick and reliable color judgment.
  • ย Economic power consumption and low heat generation for high light efficiency.
  • ย Name of light source can be changed, easy to add light.
  • ย Metal box, durable in use.

YR05532 color light box is widely used in textile, toy, dye, plastic, pigment, painting, inking, printing, chemical, ceramic, leather, hardware, food etc industries. It can help check color fastness to visual assessment, color proofing, color difference and fluorescent material etc, and ensure these steps, sample, the production, quality inspection, check and accept to be done in the same standard light source. Accurate check the color difference for better color quality control, to improve product competitive.

Technical Description
Brand Kalstein
Model YR05532
Weightย  60kg
Size (S*D*H) 1008×716*898mm
Standard Light source ASTM/BS/CIE/ISO/DIN/TL84/ANSI
Light source D65/A/D50/UV/U30/TL84/U35
Power supply AC 220V-240V,50/60Hz
The Standard Light tube specifications
Model Quantity Specs Parameter CRI Lifespan
LED light 1 TruD65 2 pcs 15W,6500ยฑ200K Ra95 20000-50000ย hours&25000 on-off time
LED light 2 TruA 2 pcs 15W,2850ยฑ200K Ra96
LED light 3 TruD50 2 pcs 15W,5000ยฑ200k Ra95
LED light 4ย  TruUV 2 pcs 15W,Wavelengthย 360-390nm /
Philips F30T12/30U/RS 2 pcs 30W,4000ยฑ200K Ra80 2000-30000ย hours&10000 on-off time
Philips TL-D30S/840 2 pcs 30W,4000ยฑ200K Ra85
GE F25T8 SPX35 ECO 2 pcs 25W,3500ยฑ200K Ra85


Additional information

Weight 99 kg
Dimensions 107 × 83 × 35 cm
